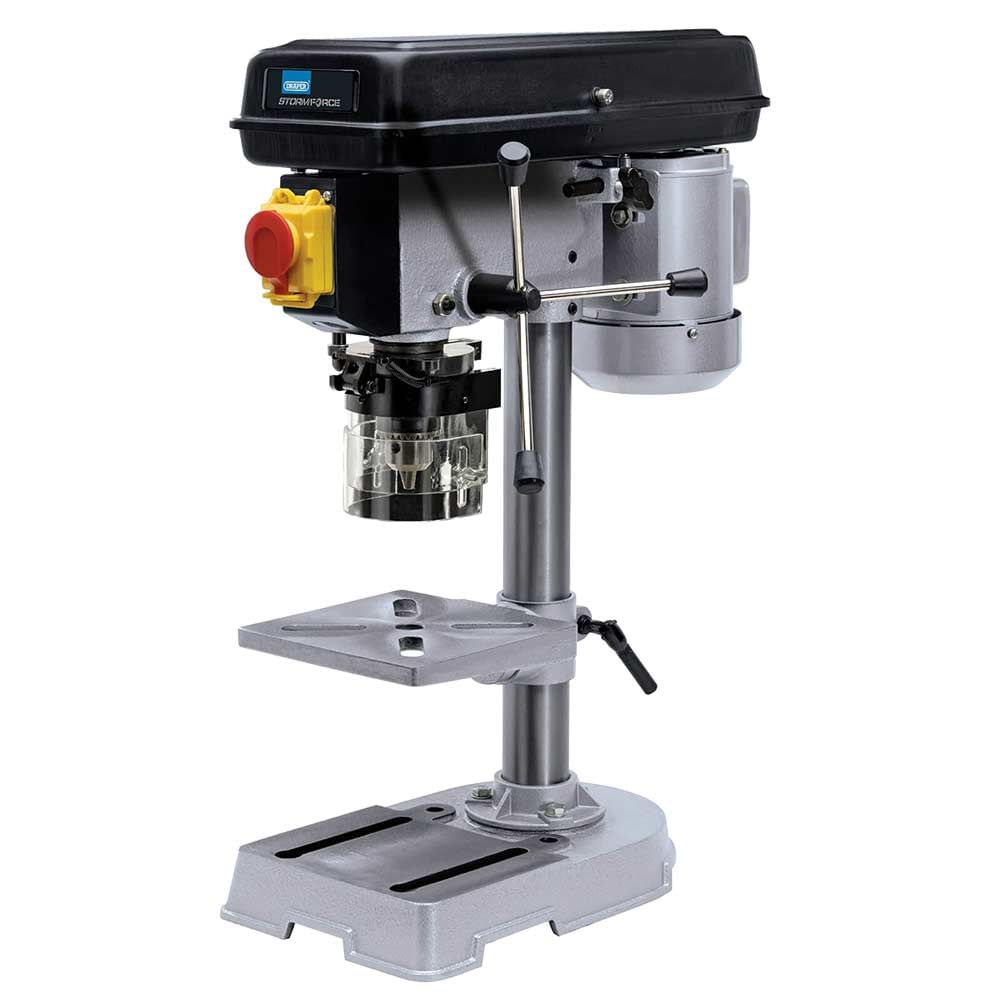

Draper D13/5DA 5 Speed Bench Drill

The Draper D13/5DA is a versatile 5 speed bench drill designed for precision drilling tasks in home workshops. With a 13mm drilling capacity and multiple speed settings ranging from 580 to 2650rpm, this bench drill offers the flexibility to work with various materials and drill bit sizes.

Built with durability in mind, the drill features a robust steel motor casing and a lockable pulley cover for added safety during operation. The 350W motor provides reliable performance for general drilling applications, whilst the MT2 spindle taper ensures secure chuck mounting and accurate drilling results.

Safety and precision are prioritised throughout the design. The No-Volt safety release switch prevents accidental startup, protecting the operator in the event of power interruption. A depth stop allows for consistent drilling depths, whilst the included chuck guard provides additional protection during use. The square 162 x 162mm table offers a stable work surface, and the 60mm diameter column ensures rigidity during operation.

With a compact footprint and 15kg weight, this bench drill is well-suited to smaller workshop environments where space is at a premium. The unit is supplied with a BS approved non-rewireable moulded plug and 1.8m cable for immediate use.

Features and Benefits:
• 5 speed settings (580-2650rpm) for versatile material compatibility
• 13mm drilling capacity suitable for a wide range of applications
• No-Volt safety release switch prevents accidental restart
• Depth stop for precise and repeatable drilling depths
• Steel motor casing for durability and longevity
• Chuck guard for enhanced operator safety
• Square table provides stable support for workpieces
• Compact design ideal for home workshops with limited space

Specifications:
Base Size: 200 x 314
Base Dimensions: 200 x 320mm
Chuck Capacity: 1.5-13mm
Collar Diameter: 40mm
Column Diameter: 60mm
Drilling Capacity: 13mm
Height: 580mm
Speed: 5 (580-2650r/min)
Spindle Taper: MT2
Spindle Travel: 50mm
Table Size: 162 x 162mm
Throat Depth: 104mm
Weight: 15kg

Contents:
1 x 5 Speed Bench Drill, 350W
