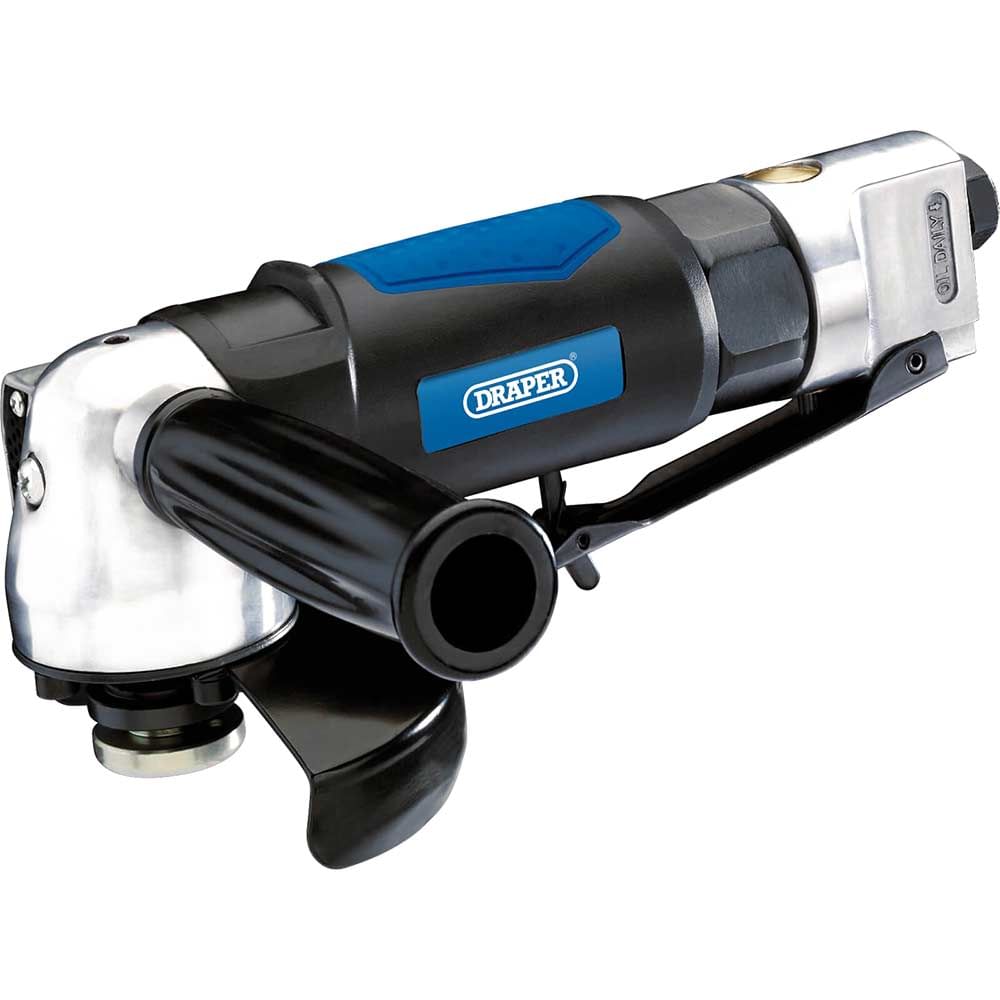

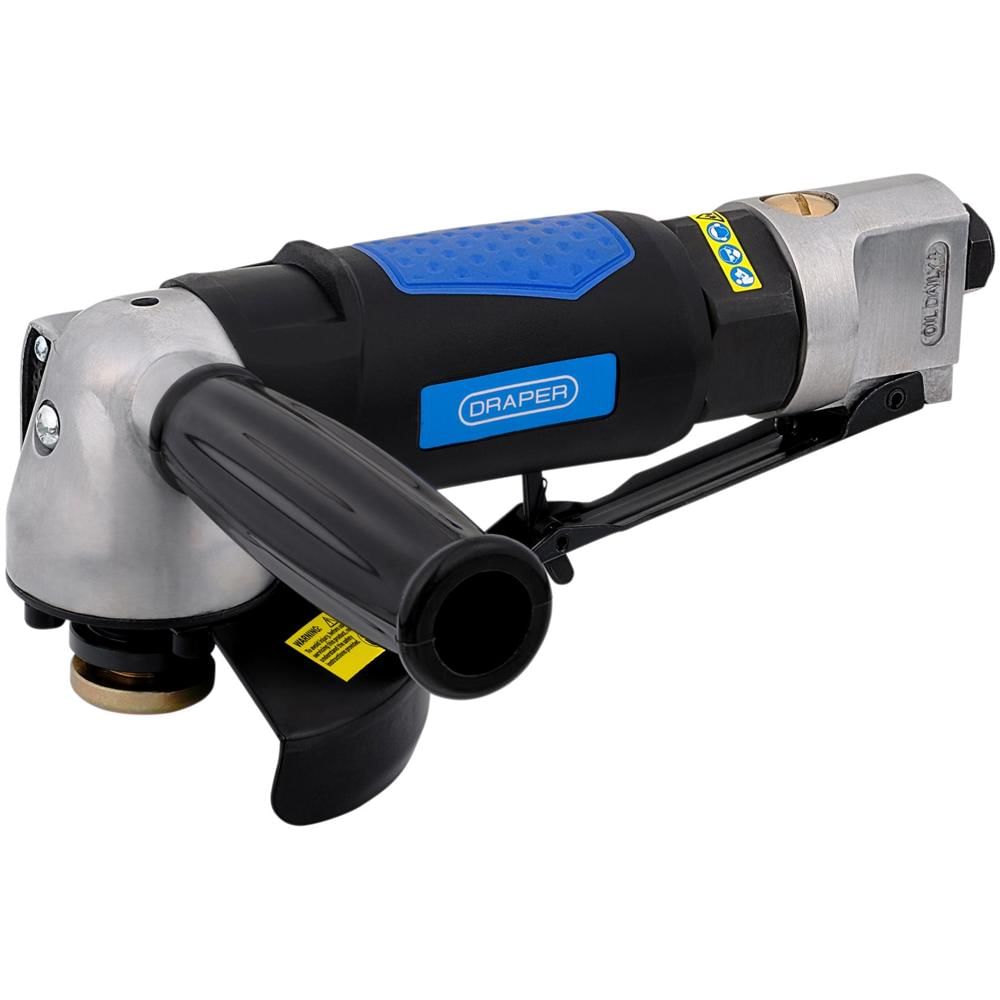

Draper DAT-AAG Air Angle Grinder 100mm

The Draper DAT-AAG is a 100mm air angle grinder designed for professional grinding, cutting and surface preparation tasks in workshop and fabrication environments. Engineered with a safety lever trigger to prevent accidental starts, this pneumatic grinder combines operator protection with reliable performance for daily trade use.

Built around a lightweight aluminium body with ergonomic soft grip, the tool minimises operator fatigue during extended grinding sessions. The auxiliary side handle provides additional control and stability, whilst the governor mechanism maintains consistent disc speed under load. Hardened steel bevelled gears deliver dependable power transmission, and the top-mounted exhaust directs air away from the work area.

The adjustable built-in regulator allows operators to fine-tune air pressure for different applications, from aggressive material removal to more controlled finishing work. Operating at 11,000 rpm with a 90psi air supply, this grinder suits metalworking, automotive repair, and general fabrication tasks. The compact 100mm disc size makes it ideal for accessing confined spaces and working on smaller components where precision matters.

Features and Benefits:
• Safety lever trigger prevents accidental starts
• Adjustable built-in regulator for application control
• Auxiliary side handle for improved grip and stability
• Governor mechanism maintains consistent speed under load
• Hardened steel bevelled gears for durability
• Top exhaust directs air away from work area
• Low noise and vibration design reduces operator fatigue
• Lightweight aluminium body at just 1.67kg

Specifications:
Air Inlet: 1/4" BSP
Average Air Consumption: 6.5cfm (184L/min)
Disc Size: 100mm
Free Speed: 11,000 rpm
Min Hose Size: 3/8" (10mm)
Operating Air Pressure: 90psi (6.2bar)
Vibration Level: 2.43m/s²
Weight: 1.67kg

Contents:
1 x Air Angle Grinder, 100mm
