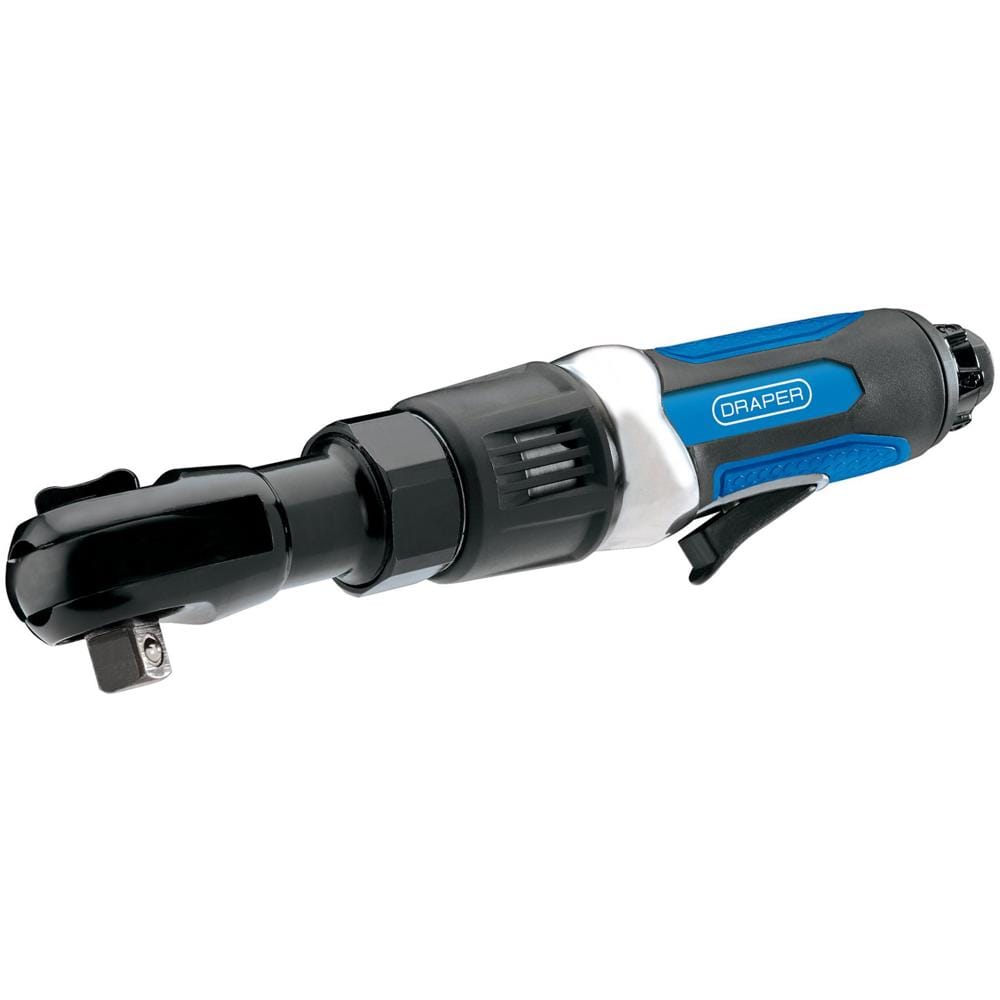

Draper DAT-AR12 1/2" Drive Air Ratchet

The Draper DAT-AR12 is a compact 1/2" drive air ratchet designed for automotive and mechanical work where space is limited. This lightweight pneumatic tool features a stubby yoke design and aluminium housing, making it ideal for reaching awkward areas during vehicle maintenance and repair tasks.

Built with twin ratchet pawls for reliable performance, this air ratchet delivers 85Nm of torque at 90psi operating pressure. The ergonomic soft-grip handle provides comfort during extended use, whilst the 4-speed rear regulator allows precise control for different applications. The middle exhaust directs air away from the work area, and the 360° rotating air inlet prevents airline kinking during operation.

The teaser trigger offers enhanced control when working on delicate components, making this tool particularly suitable for automotive tasks such as replacing radiators, spark plugs, air conditioning units and water pumps. The turnable exhaust deflector adds further versatility by directing exhaust air as needed. Operating at 160rpm free speed with an average air consumption of 4cfm, this air ratchet requires a minimum 3/8" hose diameter for optimal performance.

Features and Benefits:
• Twin ratchet pawls provide reliable engagement and durability
• Stubby yoke design allows access to confined spaces
• Teaser trigger enables precise control for delicate work
• 360° turnable exhaust deflector directs air away from workspace
• 4-speed rear regulator for adjustable power output
• Middle exhaust positioning keeps air clear of work area
• Lightweight aluminium housing reduces operator fatigue
• Ergonomic soft-grip handle for comfortable extended use
• 360° rotating air inlet prevents airline kinking

Specifications:
Air Inlet: 1/4" BSP
Average Air Consumption: 4cfm (113L/min)
Free Speed: 160rpm
Min Hose Size: 3/8" (10mm)
Operating Air Pressure: 90psi (6.2bar)
Square Drive: 1/2"
Ultimate Torque: 85Nm (60ft/lb)
Vibration Level: 4.35m/s²
Weight: 1.22kg

Contents:
1 x Air Ratchet, 1/2" Sq. Dr.
