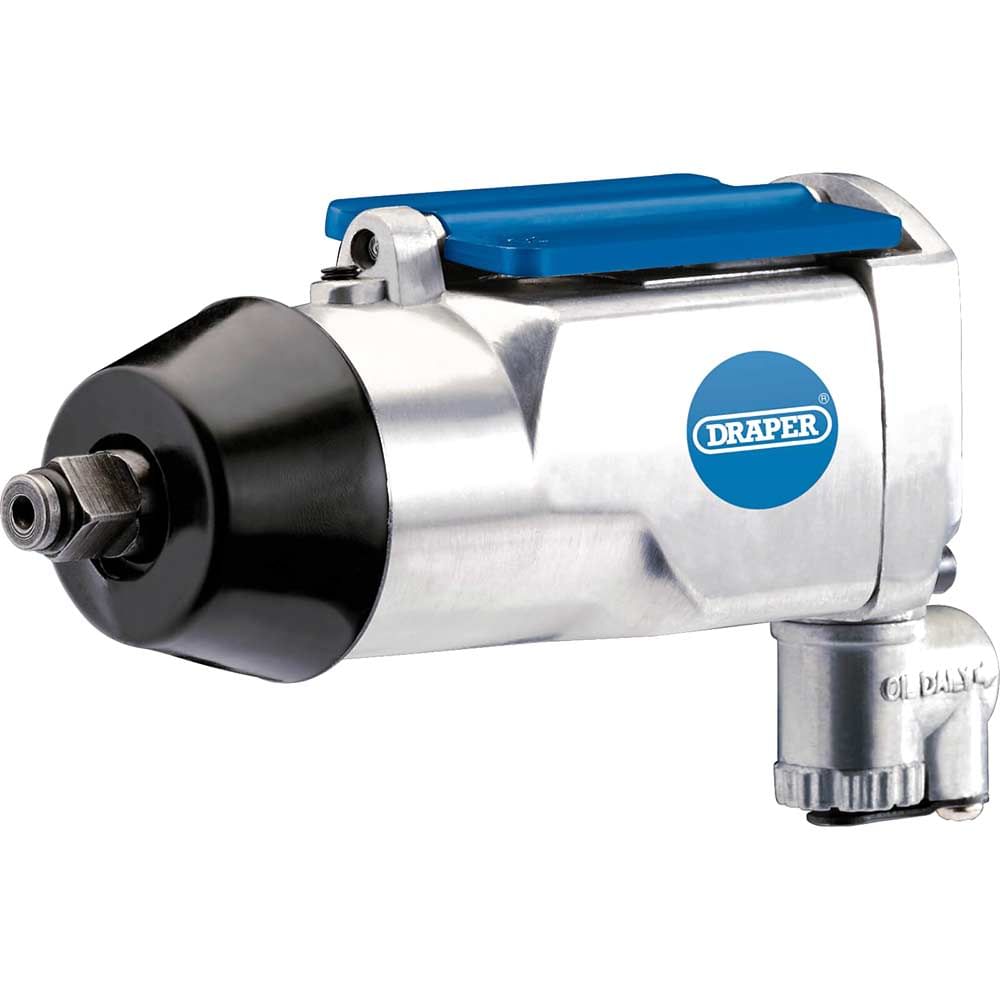

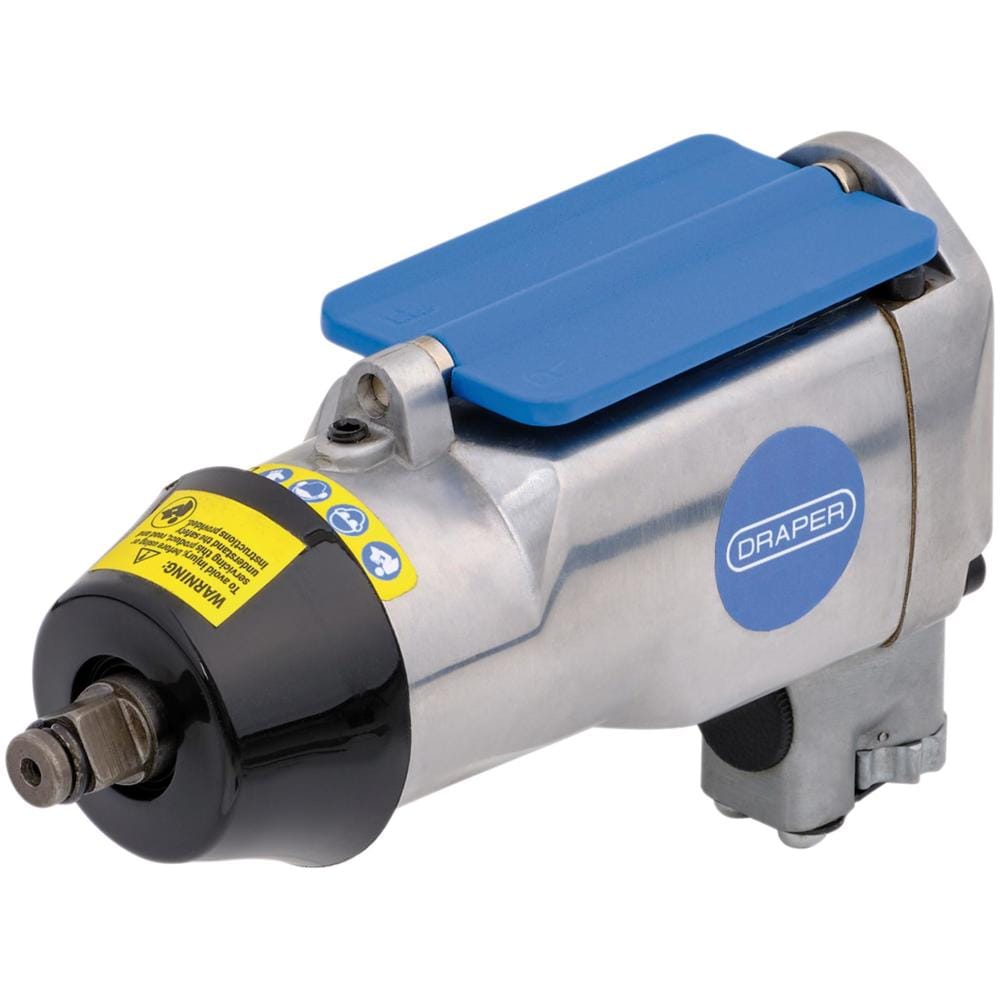

Draper DAT-BAIW Butterfly Air Impact Wrench 3/8" Drive

The Draper DAT-BAIW is a compact 3/8" drive butterfly air impact wrench designed for light to medium-duty fastening tasks in confined spaces. Featuring a single hammer mechanism and lightweight aluminium construction, this air tool delivers 102Nm of torque whilst weighing just 0.90kg, making it well-suited to extended use without operator fatigue.

The butterfly-style throttle enables single-handed operation with intuitive forward and reverse control, whilst the built-in regulator allows precise adjustment of speed and power to suit different applications. Operating at 90psi with an air consumption of 6cfm, the wrench runs at up to 10,000 rpm free speed through its three-speed reversible motor. The 360° rotating air inlet with 1/4" BSP connector helps prevent airline kinking during manoeuvring, and the side exhaust directs expelled air away from the work area.

This compact impact wrench is ideal for transmission work, body panel assembly, exhaust system maintenance and small engine repairs where space is limited. The 3/8" square drive provides compatibility with standard impact sockets, making it a versatile addition to any automotive or light engineering workshop.

Features and Benefits:
• Single hammer butterfly air impact wrench
• Lightweight aluminium housing
• Three speed reversible motor
• Built-in regulator varies speed and power
• Swivel air inlet provides easy manoeuvring
• Butterfly throttle for easy single hand operating
• Compact size helps in tight spaces
• Side exhaust

Specifications:
Air Inlet: 1/4" BSP
Average Air Consumption: 6cfm (170L/min)
Free Speed: 10,000 rpm
Min Hose Size: 3/8" (10mm)
Operating Air Pressure: 90psi (6.2bar)
Square Drive: 3/8"
Ultimate Torque: 102Nm (75ft/lb)
Vibration Level: 2.5m/s²
Weight: 0.90kg

Contents:
1 x Butterfly Type Air Impact Wrench, 3/8" Sq. Dr.
