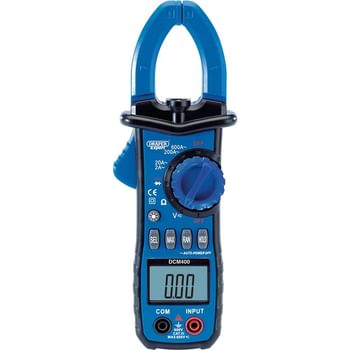

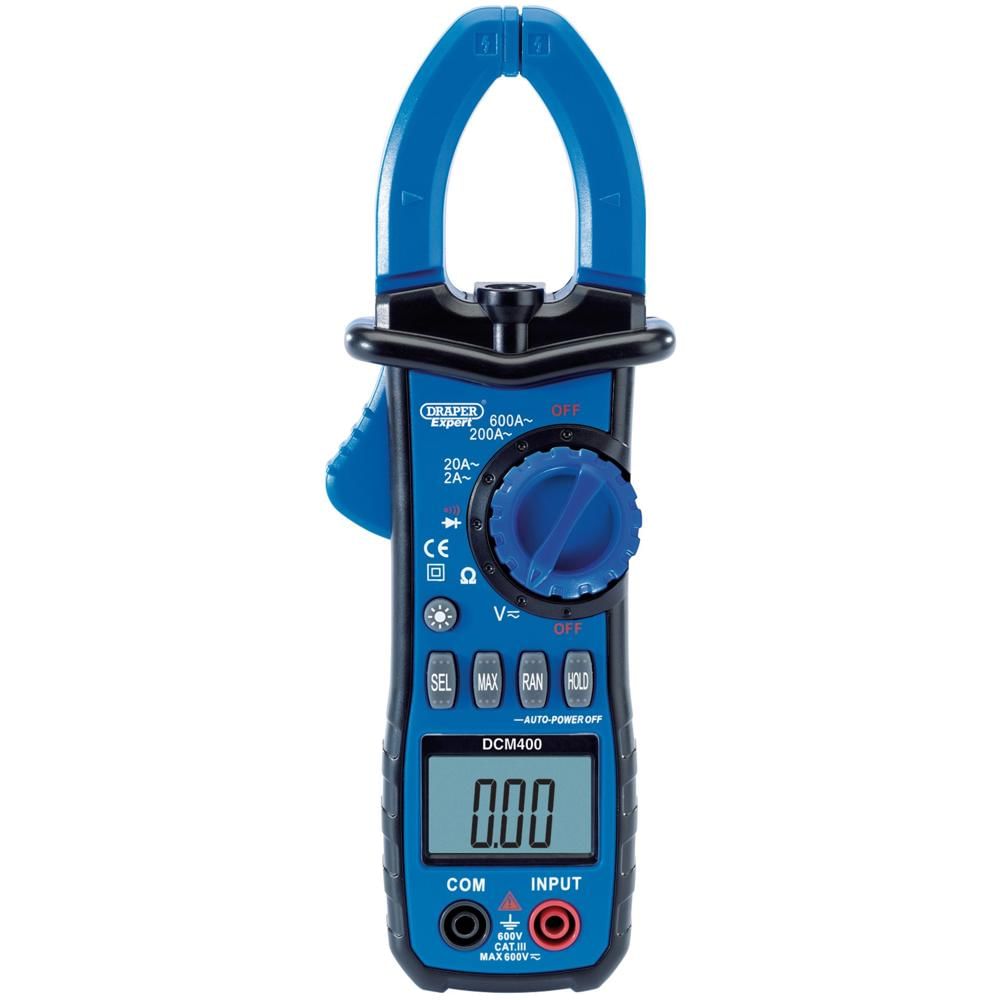

Draper DCM400 Digital Clamp Meter

The Draper DCM400 Digital Clamp Meter is a versatile electrical testing instrument designed for measuring voltage, current, resistance and circuit continuity. This auto and manual ranging clamp meter combines essential diagnostic capabilities in a portable format, making it an effective solution for electricians and maintenance professionals working with AC electrical systems.

The meter features a 36mm maximum jaw opening capacity, allowing it to accommodate most standard cables and conductors encountered in typical electrical installations. The backlit LCD screen ensures clear readings in low-light conditions, whilst the integrated inspection light provides illumination when working in confined spaces or switchgear. An automatic power-off function helps conserve battery life during extended site work.

With measurement ranges extending to 600A for AC current and 600V for both AC and DC voltage, this clamp meter handles common electrical testing requirements across commercial and industrial applications. The resistance testing capability ranges up to 20MO, complemented by diode testing and continuity checking functions. The data hold feature allows readings to be frozen for recording, whilst the duty ratio function supports additional diagnostic applications.

Features and Benefits:
• 36mm jaw opening accommodates standard cables and conductors
• Backlit LCD display for visibility in poorly lit working environments
• Integrated inspection light for illuminating test points
• Auto power-off function extends battery life
• Data hold feature for convenient recording of measurements
• Supplied with test leads and protective carry case

Specifications:
AC Amps: 2A/20A/200A/600A
AC Current: 2A/20A/200A/600A
AC Voltage: 200mV/2V/20V/200V/600V
Automatic Power Off: Yes
Battery: 3 x AAA (not supplied)
Capacitance: N/A
DC Current: N/A
DC Voltage: 200mV/2V/20V/200V/600V
Diode on/off Test: Yes
Dimensions: 228mm x 156mm x 62mm
Duty Ratio: Yes
Dwell: N/A
Frequency: N/A
Resistance (Ohms): 200O/2kO/20kO/200kO/2MO/20MO
Symbol Unit Data Hold: Yes
TACH: N/A
Temperature Range: N/A
Weight: 480g (approx.)

Contents:
1 x Draper Expert Manual-Ranging Digital Clamp Meter
