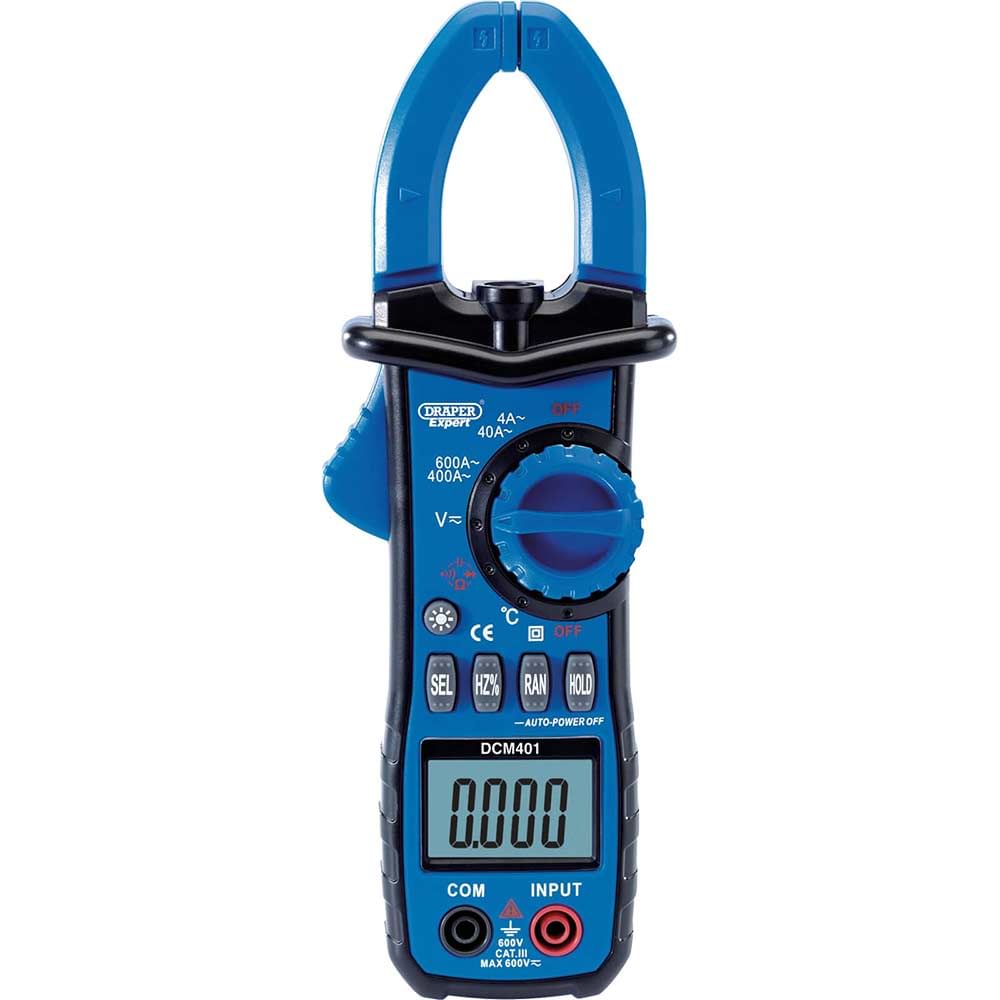

Draper DCM401 Digital Clamp Meter

The Draper DCM401 Digital Clamp Meter is a versatile auto and manual ranging diagnostic tool designed for electrical testing and fault-finding across commercial and domestic installations. This comprehensive clamp meter combines multiple testing functions including voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature measurement in a single compact unit.

With a maximum jaw opening diameter of 36mm, the DCM401 accommodates most standard cables and conductors found in typical electrical work. The meter measures AC current up to 600A across four ranges, whilst handling both AC and DC voltage measurements up to 600V. Resistance testing extends to 40MO, and the integrated temperature probe covers an impressive range from -20°C to 1000°C, making it suitable for HVAC diagnostics and thermal troubleshooting.

Practical features include a backlit LCD screen for working in dimly lit conditions, an inspection light for close-up work, and automatic power-off to preserve battery life. The data hold function allows readings to be frozen for recording in awkward positions. Supplied complete with test leads, temperature probe and protective carry case, this clamp meter provides electricians and contractors with a professional testing solution.

Features and Benefits:
• Auto and manual ranging for simplified testing across multiple measurement types
• 36mm jaw opening accommodates standard cables and conductors
• Backlit LCD screen and inspection light for work in low-light environments
• Temperature measurement from -20°C to 1000°C with included probe
• Data hold function for recording readings in difficult access locations
• Complete kit with test leads, temperature probe and carry case

Specifications:
AC Amps: 4A/40A/400A/600A
AC Current: 4A/40A/400A/600A
AC Voltage: 400mV/4V/40V/400V/600V
Automatic Power Off: Yes
Battery: 3 x AAA (not supplied)
Capacitance: 5nF/50nF/500nF/5µF/50µF/200µF
DC Current: N/A
DC Voltage: 400mV/4V/40V/400V/600V
Diode on/off Test: Yes
Dimensions: 230mm x 156mm x 62mm
Duty Ratio: N/A
Dwell: N/A
Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
Resistance (Ohms): 400O/4kO/40kO/400kO/4MO/40MO
Symbol Unit Data Hold: Yes
TACH: N/A
Temperature Range: -20°C - 1000°C
Weight: 488g (approx)

Contents:
1 x Draper Expert Auto-Ranging Digital Clamp Meter
