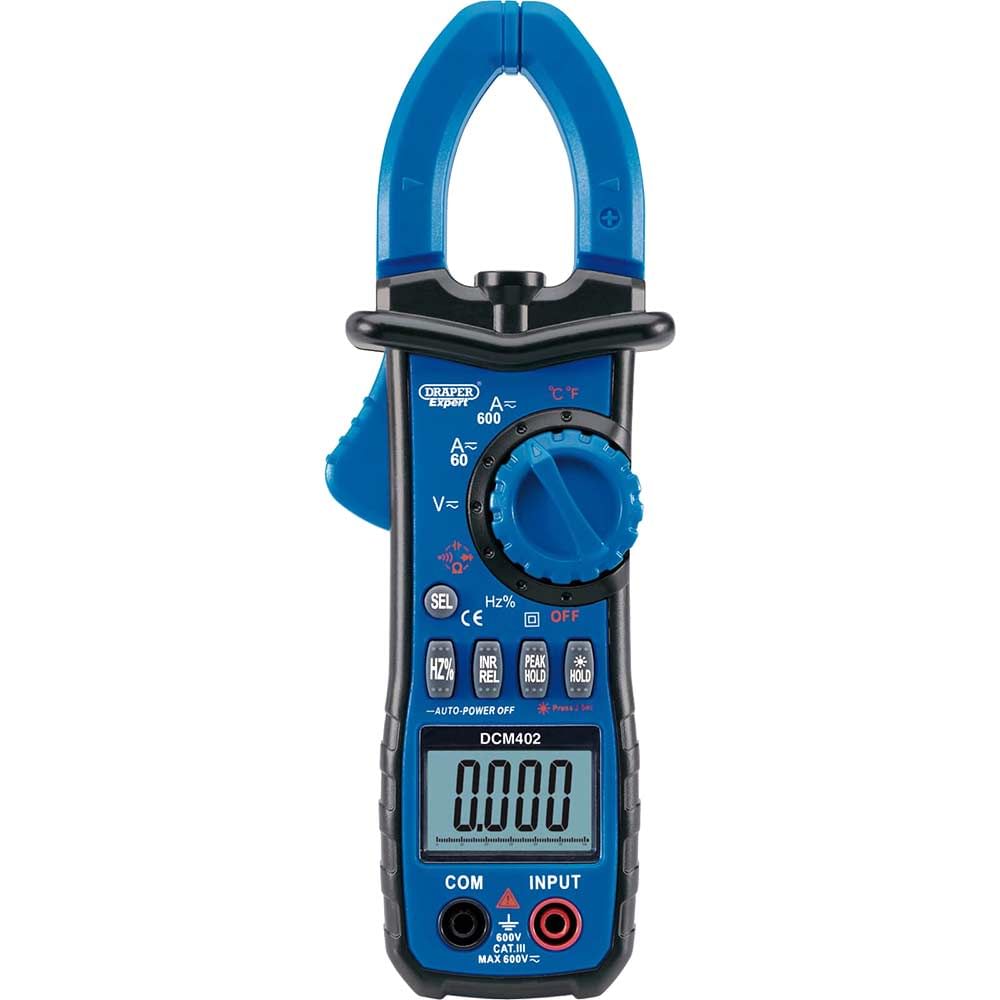

Draper DCM402 Digital Clamp Meter

The Draper DCM402 Digital Clamp Meter is a versatile auto and manual ranging diagnostic tool designed for electrical testing and troubleshooting across commercial and domestic installations. This multifunctional clamp meter combines comprehensive measurement capabilities with practical features that support efficient fault-finding and system verification on site.

Capable of measuring AC and DC voltage up to 600V, AC and DC current up to 600A, and resistance up to 60MO, this meter provides the measurement range required for most electrical applications. The 36mm maximum jaw opening accommodates standard cable sizes, whilst additional functions including capacitance, frequency, duty cycle and temperature testing extend its diagnostic capabilities beyond basic electrical parameters.

The backlit LCD display ensures clear readings in low-light environments such as plant rooms and meter cupboards, complemented by a built-in inspection light for improved visibility during testing. The linear bar graph function provides at-a-glance indication of measurement trends, whilst auto power-off preserves battery life during busy working days. Supplied complete with test leads, temperature probe and protective carry case, this meter arrives ready for immediate deployment.

Features and Benefits:
• Auto and manual ranging modes for flexible operation across different applications
• Comprehensive testing functions including voltage, current, resistance, capacitance and temperature
• 36mm jaw opening suits standard cable and conductor sizes
• Backlit display and inspection light for working in poorly lit locations
• Linear bar graph provides visual indication of measurement changes
• Complete kit with test leads, temperature probe and case

Specifications:
AC Amps: 60A/600A
AC Current: 60A/600A
AC Voltage: 6V/60V/600V
Automatic Power Off: Yes
Battery: 3 x AAA (not supplied)
Capacitance: 999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
DC Amps: 60A/600A
DC Current: 60A/600A
DC Voltage: 600mV/6V/60V/600V
Diode on/off Test: Yes
Dimensions: 228mm x 158mm x 58mm
Duty Ratio: Yes
Dwell: N/A
Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
Resistance (Ohms): 6000O/6kO/60kO/600kO/6MO/60MO
Symbol Unit Data Hold: N/A
TACH: N/A
Temperature: -50 to 300ºC
Temperature Range: -50°C - 1000°C/-58°F - 1832°F
Weight: 400g (approx.)

Contents:
1 x Draper Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function
1 x Set of test leads
1 x Temperature probe
1 x Carry case
