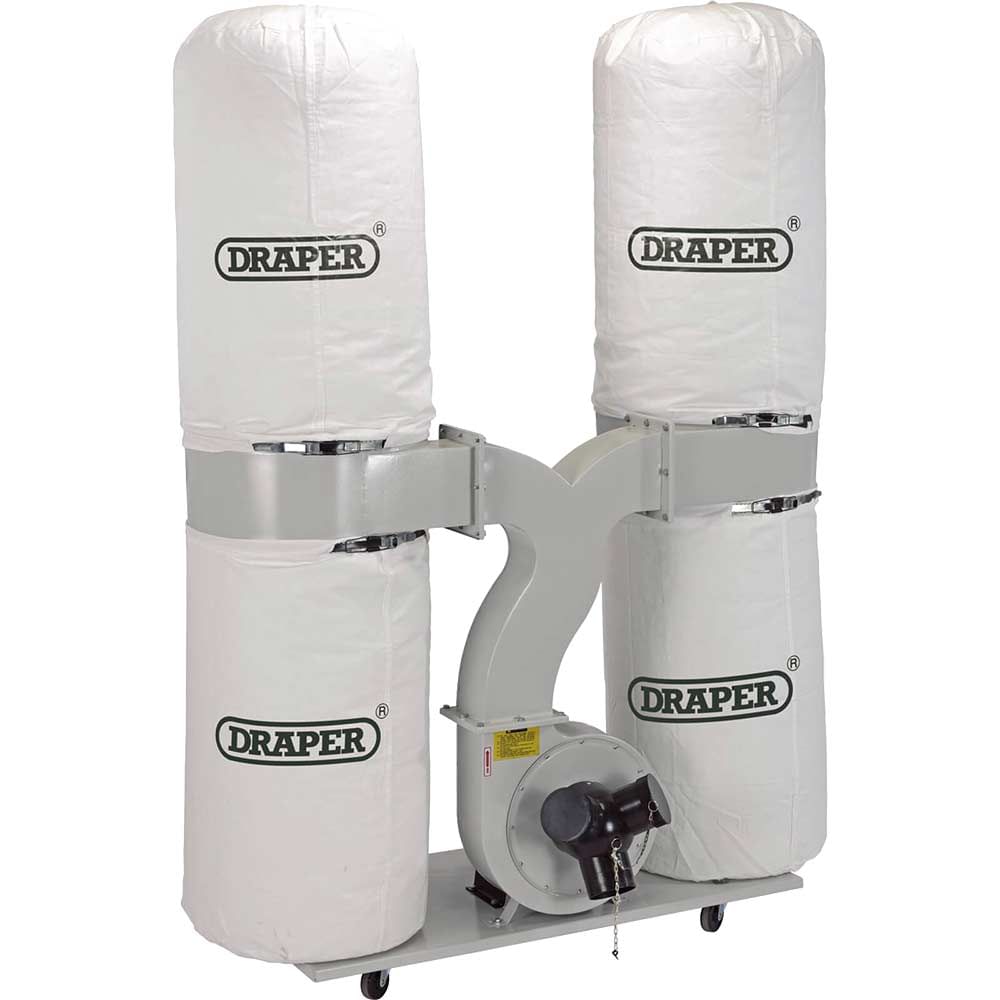

Draper DE2200 Dust Extractor

The Draper DE2200 Dust Extractor is a powerful workshop extraction system designed for removing dust and debris from woodworking machinery. Powered by a robust 2200W motor, this 300-litre capacity extractor delivers an impressive 65m³/min air flow, making it capable of handling both fine dust particles and larger wood chips or fragments.

This versatile dust extractor features three 100mm extraction ports, allowing simultaneous connection to multiple static workshop machines including bandsaws, table saws, scroll saws, planers and sanders. The unit is mounted on a trolley base with four swivel castors for easy positioning around the workshop, whilst the no-volt switch provides important safety protection against accidental restarts after power interruptions.

The system comes complete with 5-micron canvas filter bags for effective filtration and transparent collection bags for easy monitoring of debris levels. Supplied with approximately 2.0 metres of cable, this extractor requires hardwiring as no plug is fitted. With its 16A input requirement and substantial 59kg weight, this is a professional-grade extraction solution suited to established workshops and trade environments.

Features and Benefits:
• Capable of extracting small and large particles
• Attaches to most workshop machines
• Capable of extraction from three ports simultaneously
• No-volt switch for safety
• Trolley base with four swivel castors for easy manoeuvrability
• Supplied with 5-micron canvas filter bags and transparent collection bags

Specifications:
Air Flow: 65m³/min
Bag: 500mm diameter x 850mm height
Capacity: 300L
Filtration: 5 micron (bag type)
Input Amperage: 16A
Motor: 2200W
Outlet: 100mm x 3
Weight: 59kg

Contents:
1 x Portable Dust/Chip Extractor, 300L, 2200W
