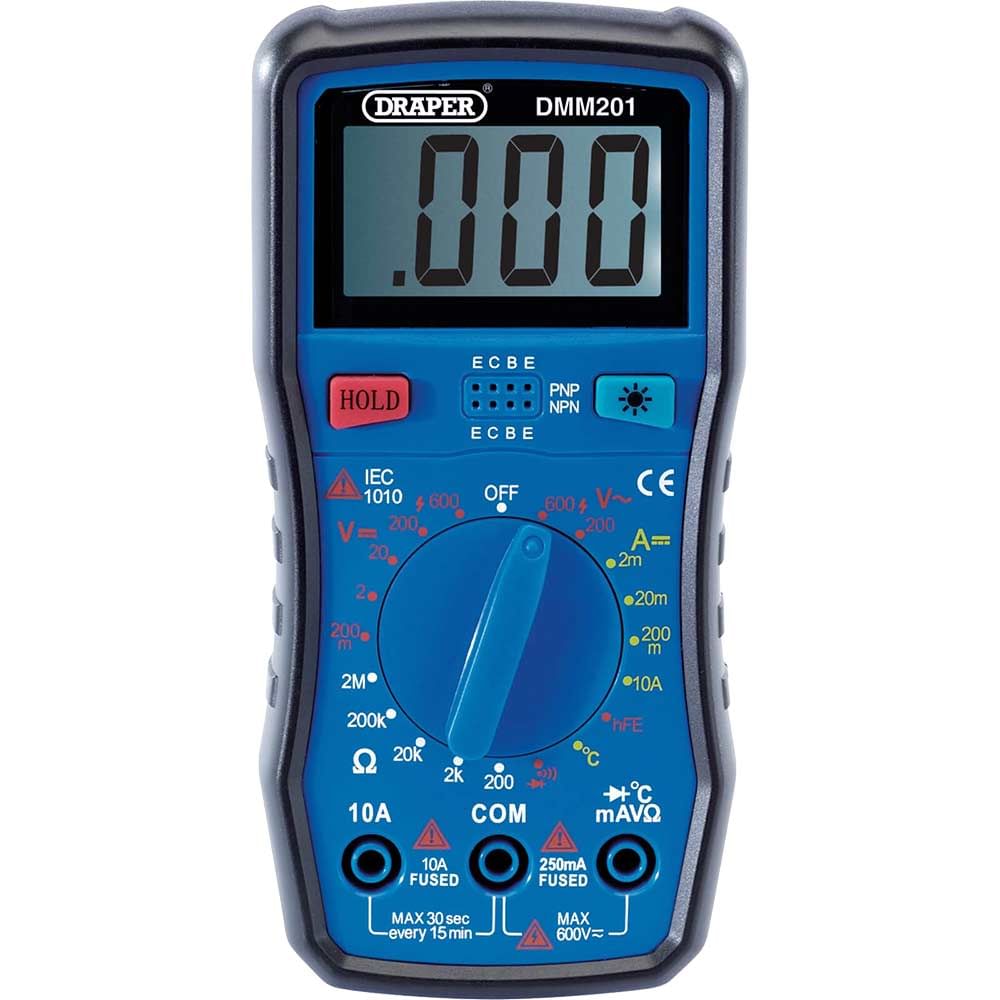

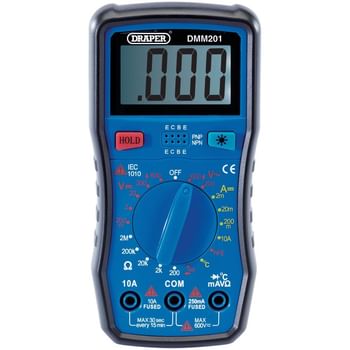

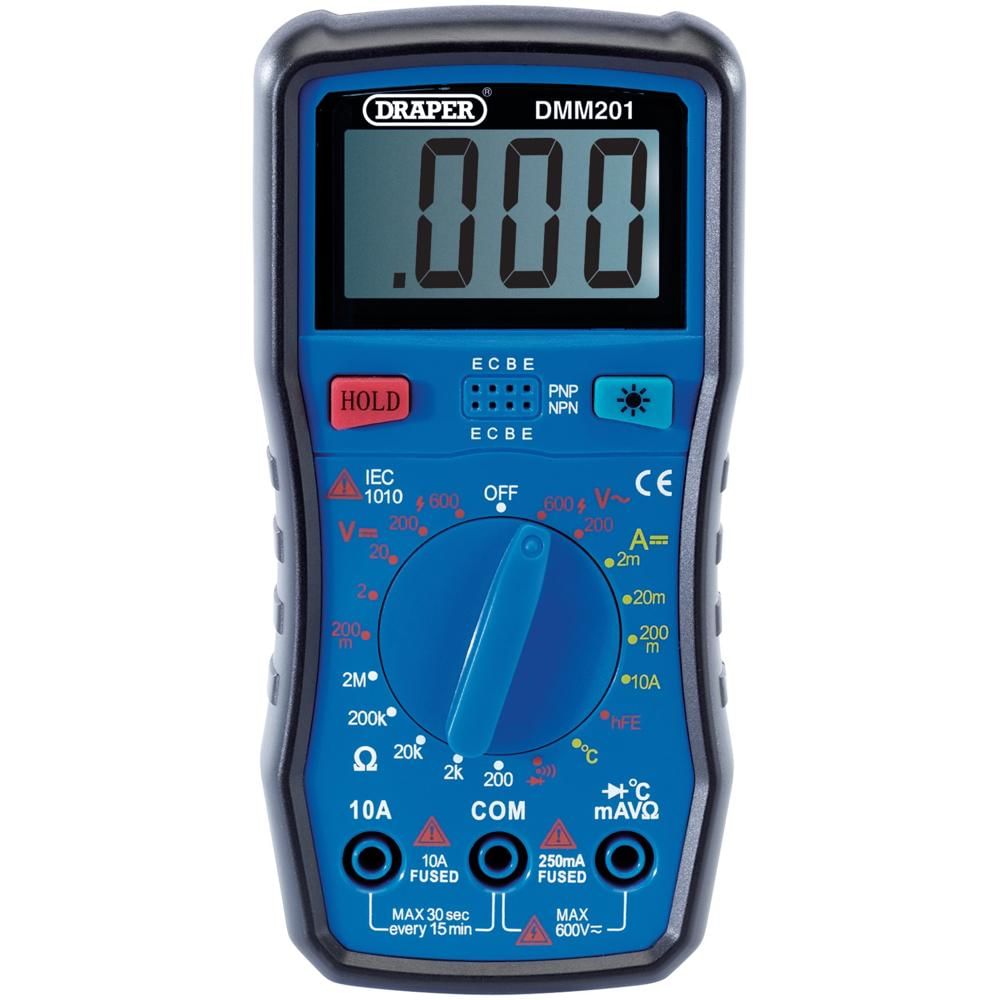

Draper DMM201 Digital Multimeter

The Draper DMM201 Digital Multimeter is a manual-ranging diagnostic tool designed for comprehensive electrical testing across voltage, current, resistance, temperature and diode parameters. This versatile multimeter provides accurate readings for electricians, automotive technicians and maintenance engineers working with a wide range of electrical systems and circuits.

Equipped with a backlit LCD screen for improved visibility in low-light conditions, the DMM201 features practical functions including auto power off to preserve battery life, a continuity buzzer for quick circuit testing, and a data hold feature that captures readings for easy recording. The manual ranging capability allows precise control over measurement scales, whilst the hFE testing function supports transistor analysis in electronic repair work.

Measuring DC voltage from 200mV up to 600V and DC current from 2mA to 10A, this multimeter handles diverse diagnostic requirements. The resistance measurement spans 200O to 2MO, and AC voltage testing covers 200V and 600V ranges. Temperature monitoring capability extends from -20°C to 1000°C, making it suitable for thermal diagnostics on components, motors and heating systems. Compact at 150mm x 74mm x 43mm and weighing approximately 233g, the unit is supplied complete with test leads and temperature probe for immediate use.

Features and Benefits:
• Manual ranging for precise measurement control across voltage, current, hFE, continuity, resistance, temperature and diode testing
• Backlit LCD screen with auto power off, continuity buzzer and data hold features for enhanced usability
• Complete kit supplied with test leads and temperature probe for comprehensive diagnostics

Specifications:
AC Current: N/A
AC Voltage: 200V/600V
Automatic Power Off: Yes
Capacitance: N/A
DC Amps: 2mA/20mA/200mA/10A
DC Current: 2mA/20mA/200mA/10A
DC Voltage: 200mV/2V/20V/200V/600V
Diode on/off Test: Yes
Dimensions: 150mm x 74mm x 43mm
Duty Ratio: Yes
Dwell: N/A
Frequency: N/A
Resistance (Ohms): 200O/2kO/20kO/200kO/2MO
Symbol Unit Data Hold: Yes
TACH: N/A
Temperature: -20 to 1000ºC
Temperature Range: -20°C - 1000°C
Weight: 233g (approx.)
Battery Type: 1 x PP3 9V (not supplied)

Contents:
1 x Manual-Ranging Digital Multimeter
1 x Test Leads
1 x Temp Probe
