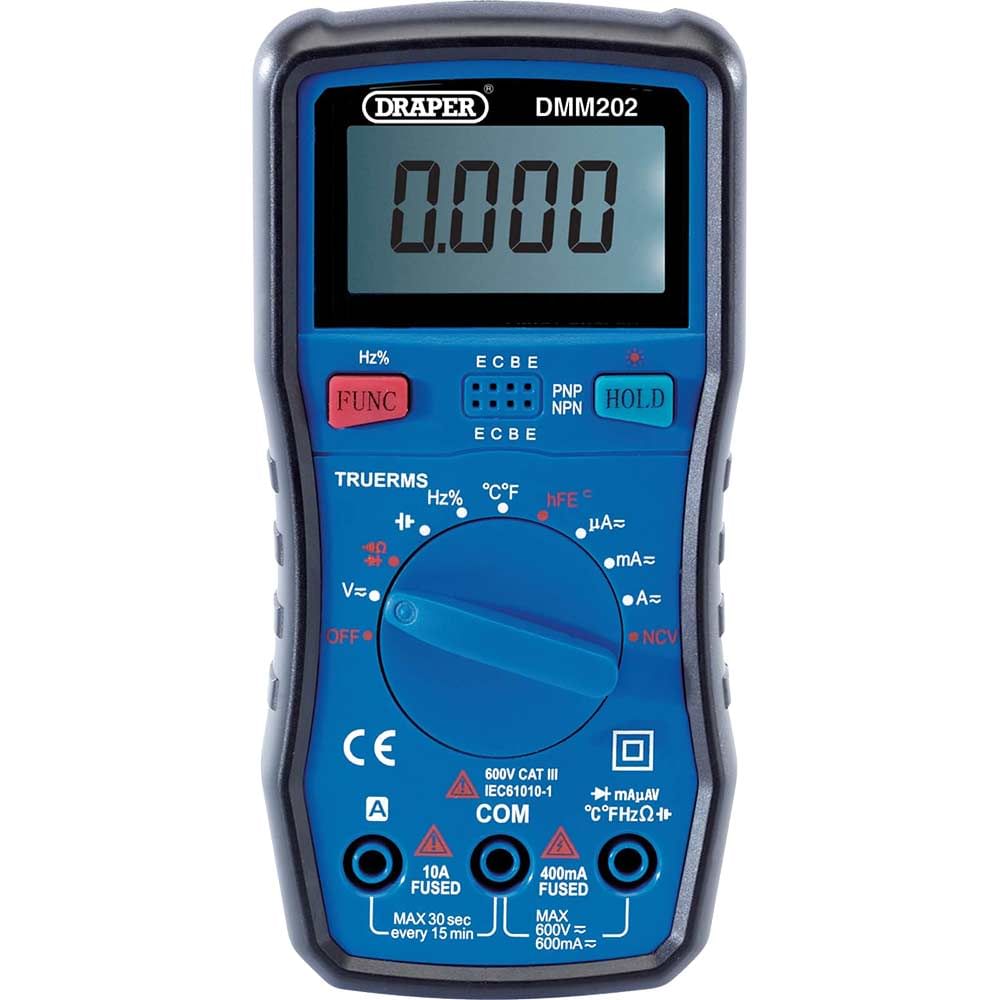

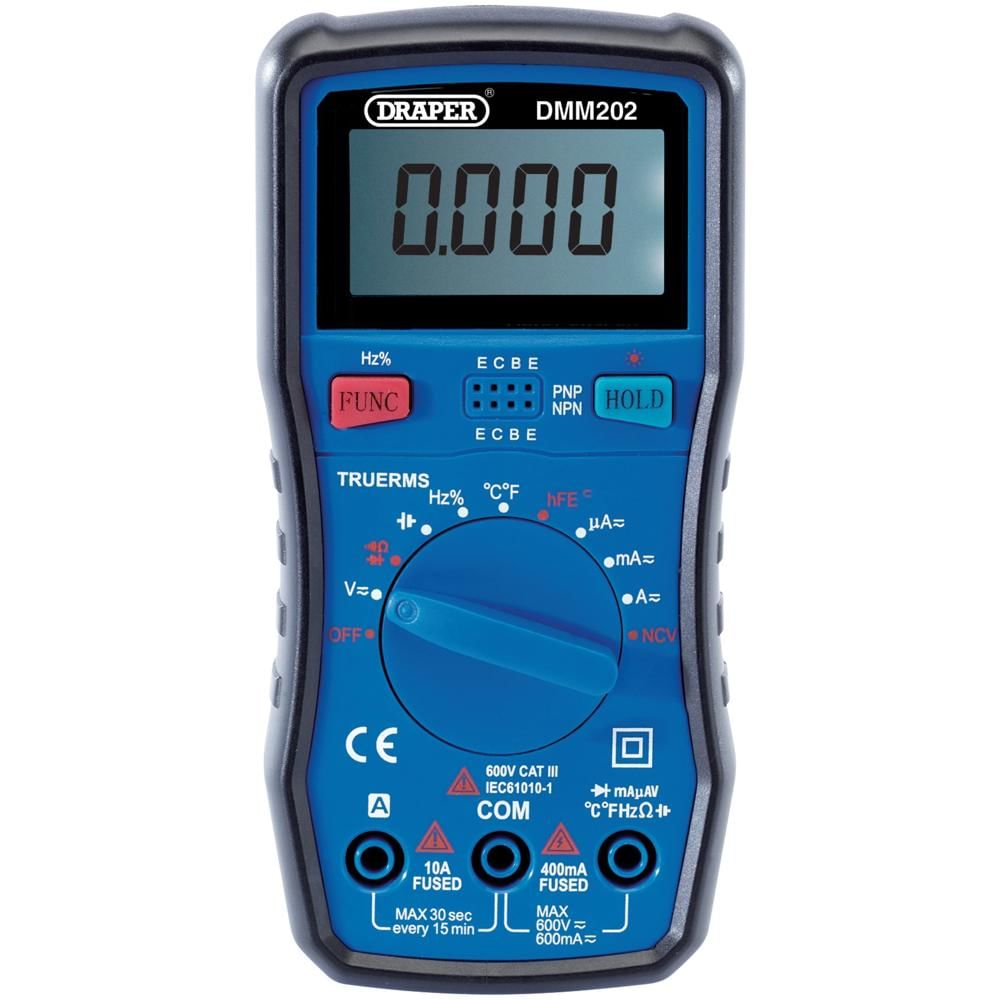

Draper DMM202 Digital Multimeter

The Draper DMM202 is a professional auto-ranging digital multimeter designed for accurate electrical testing and diagnostics across a wide range of applications. Featuring True RMS measurement with 5999 count resolution, this versatile instrument provides precise readings for voltage, current, resistance, capacitance, frequency, temperature, and continuity testing, making it ideal for electricians, maintenance engineers, and electronic technicians.

Built for practical everyday use, the multimeter includes non-contact voltage detection for enhanced safety during live circuit work. The backlit LCD screen ensures clear visibility in poorly lit environments such as cupboards, loft spaces, and plant rooms, whilst the data hold function allows readings to be frozen for convenient recording. An automatic power-off feature helps preserve battery life during busy working days.

The DMM202 offers comprehensive measurement capabilities with AC and DC voltage testing up to 600V, current measurement up to 10A, and resistance readings up to 60MO. Temperature measurement ranges from -50°C to 1000°C using the included thermocouple probe, proving particularly useful for HVAC diagnostics and thermal testing. The continuity buzzer provides instant audible confirmation when checking connections and fuses. Supplied complete with test leads and temperature probe, this multimeter arrives ready for immediate deployment on site.

Features and Benefits:
• Auto-ranging operation eliminates manual range selection for faster testing
• True RMS measurement delivers accurate readings on distorted waveforms
• Non-contact voltage detection improves safety when working near live circuits
• Backlit display for clear readings in low-light conditions
• Data hold function freezes measurements for convenient recording
• Automatic power-off conserves battery life
• Continuity buzzer provides instant audible feedback
• Wide temperature measurement range suitable for HVAC and thermal diagnostics

Specifications:
AC Amps: 600uA/6000uA/60mA/600mA/6A/10A
AC Current: 600µA/6000uA/60mA/600mA/6A/10A
AC Voltage: 6V/60V/600V
Automatic Power Off: Yes
Capacitance: 10nF/100nF/1µF/10µF/100µF/1000mF/10mF/100mF
DC Amps: 600uA/6000uA/60mA/600mA/6A/10A
DC Current: 600µA/6000uA/60mA/600mA/6A/10A
DC Voltage: 600mV/6V/60V/600V
Diode on/off Test: Yes
Dimensions: 172mm x 174mm x 50mm
Duty Ratio: Yes
Dwell: N/A
Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
Resistance (Ohms): 600O/6kO/60kO/600kO/6MO/60MO
Symbol Unit Data Hold: Yes
TACH: N/A
Temperature: -20 to 1000ºC
Temperature Range: -50°C - 1000°C/-58°F - 1832°F
Weight: 361g (approx.)

Contents:
• 1 x Auto-Ranging Digital Multimeter
• 1 x Test Leads
• 1 x Temp Probe
