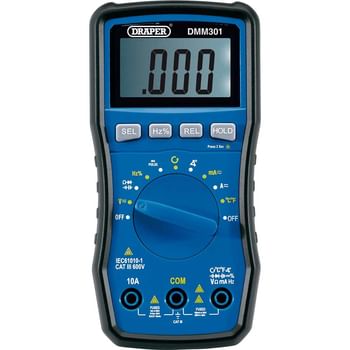

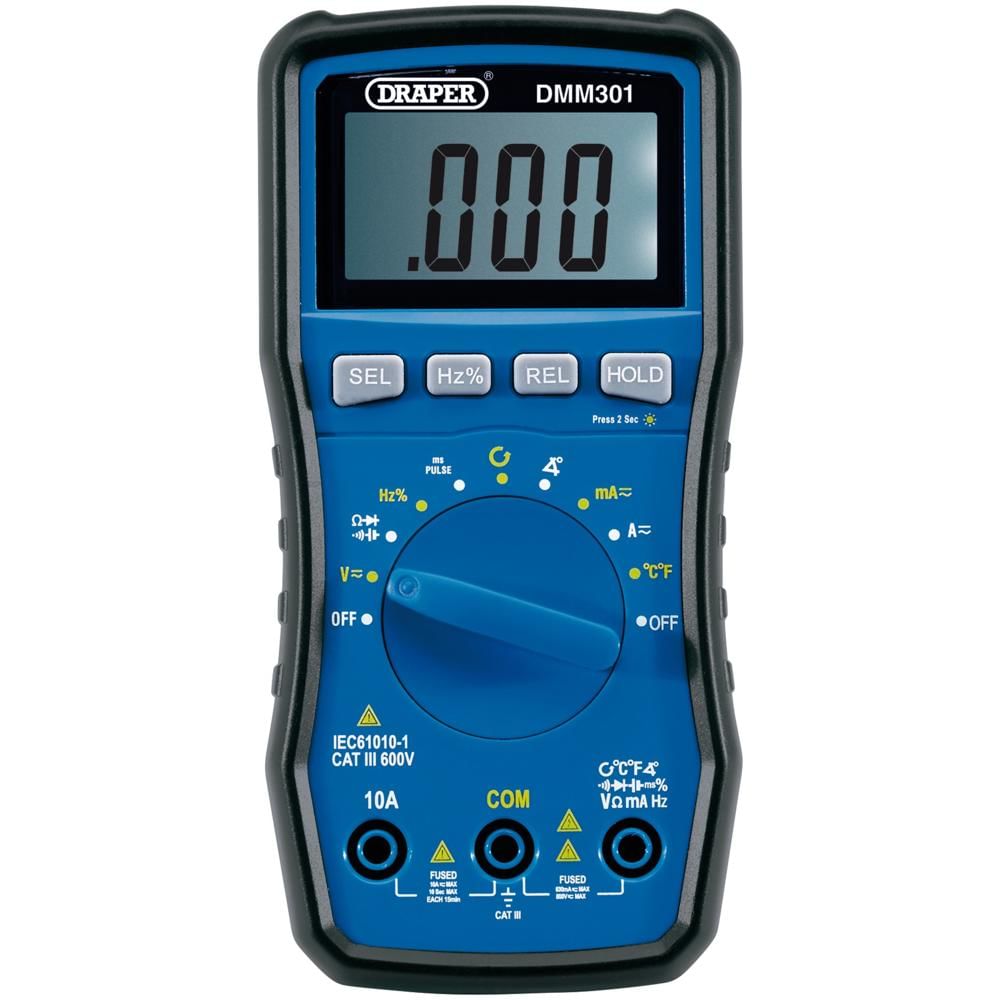

Draper DMM301 Automotive Digital Multimeter

The Draper DMM301 is an automotive digital multimeter designed for professional diagnostics and electrical testing on vehicle systems. This versatile instrument combines standard electrical testing capabilities with specialist automotive functions, making it ideal for mechanics, auto electricians and mobile diagnostics technicians working on modern vehicles.

Offering both auto and manual ranging modes, this multimeter handles a comprehensive range of electrical measurements including AC and DC voltage up to 600V, current testing up to 10A, resistance measurement up to 60MO, and capacitance testing. The integrated temperature probe extends measurement capability from -20°C to 1000°C, whilst the backlit LCD screen ensures clear readings in dimly lit workshop environments or under vehicle bonnets.

What distinguishes this model for automotive applications is its specialist diagnostic functions. The DWELL function accommodates 4, 6 and 8-cylinder engine configurations for ignition timing analysis, whilst the tachometer (TACH) measures engine RPM across a wide range. The included inductive clamp enables non-contact current measurement, and the duty ratio function assists with testing pulse-width modulated circuits common in modern vehicle electronics. Practical features such as data hold, MAX value capture, continuity buzzer and automatic power-off enhance usability during diagnostic work.

Features and Benefits:
• Auto and manual ranging for flexible measurement across multiple electrical parameters
• Specialist automotive functions including DWELL and tachometer for engine diagnostics
• Backlit LCD screen for clear visibility in low-light working conditions
• Data hold and MAX capture features for recording measurements whilst working
• Supplied complete with temperature probe, inductive clamp and protective case

Specifications:
AC Amps: 6mA/600mA/6A/10A
AC Current: 60mA/600mA/6A/10A
AC Voltage: 6V/60V/600V
Automatic Power Off: Yes
Capacitance: 40nF/400nF/4µF/40µF/400µF/4000µF
DC Amps: 6mA/600mA/6A/10A
DC Current: 60mA/600mA/6A/10A
DC Voltage: 6V/60V/600V
Diode on/off Test: Yes
Dimensions: 184mm x 186mm x 72mm
Duty Ratio: Yes
Dwell: 4CYL, 6CYL, 8CYL
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
Resistance (Ohms): 600O/6kO/60kO/600kO/6MO/60MO
Symbol Unit Data Hold: Yes
TACH: RPM4 120-20000, RPM2 60-20000
Temperature: -20 to 1000ºC
Temperature Range: -20°C - 1000°C/-4°F - 1832°F
Weight: 507g (approx.)
Battery Type: 1 x PP3 9V (not supplied)

Contents:
1 x Automotive Digital Multimeter
1 x Temperature Probe
1 x Inductive Clamp
