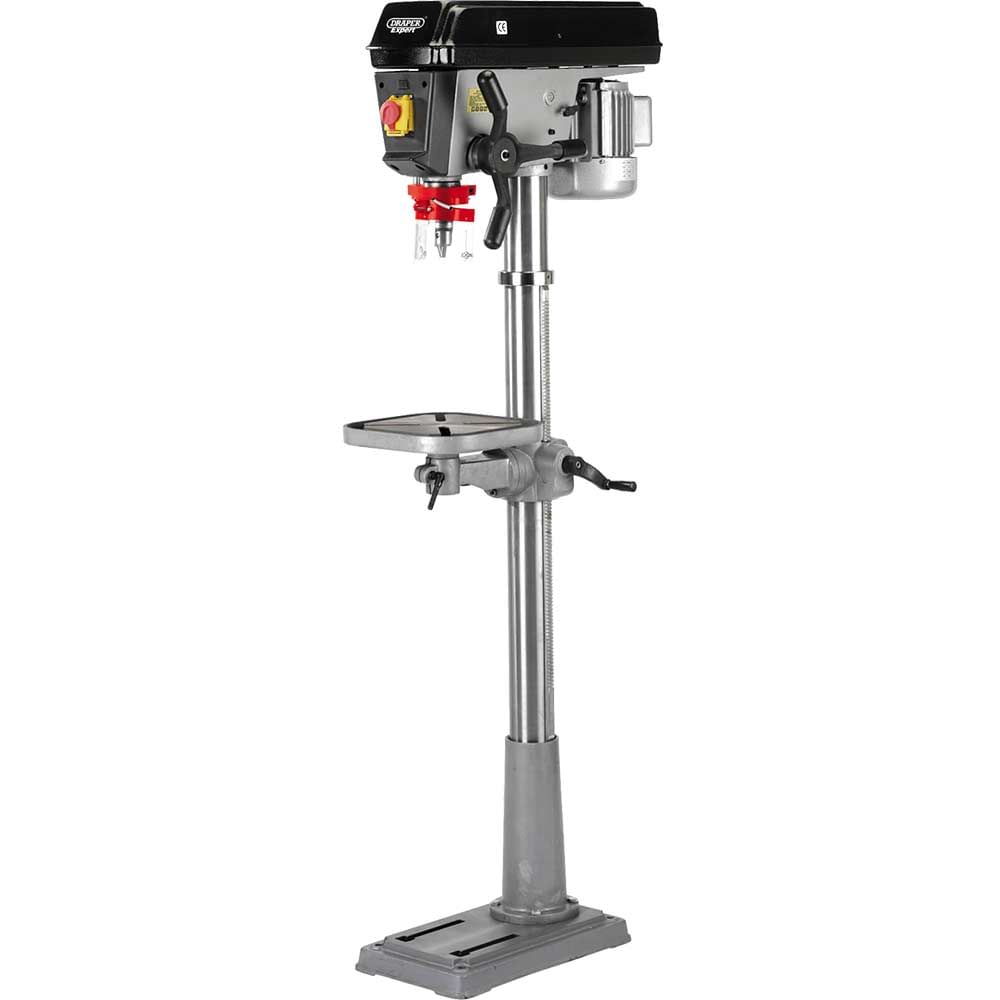

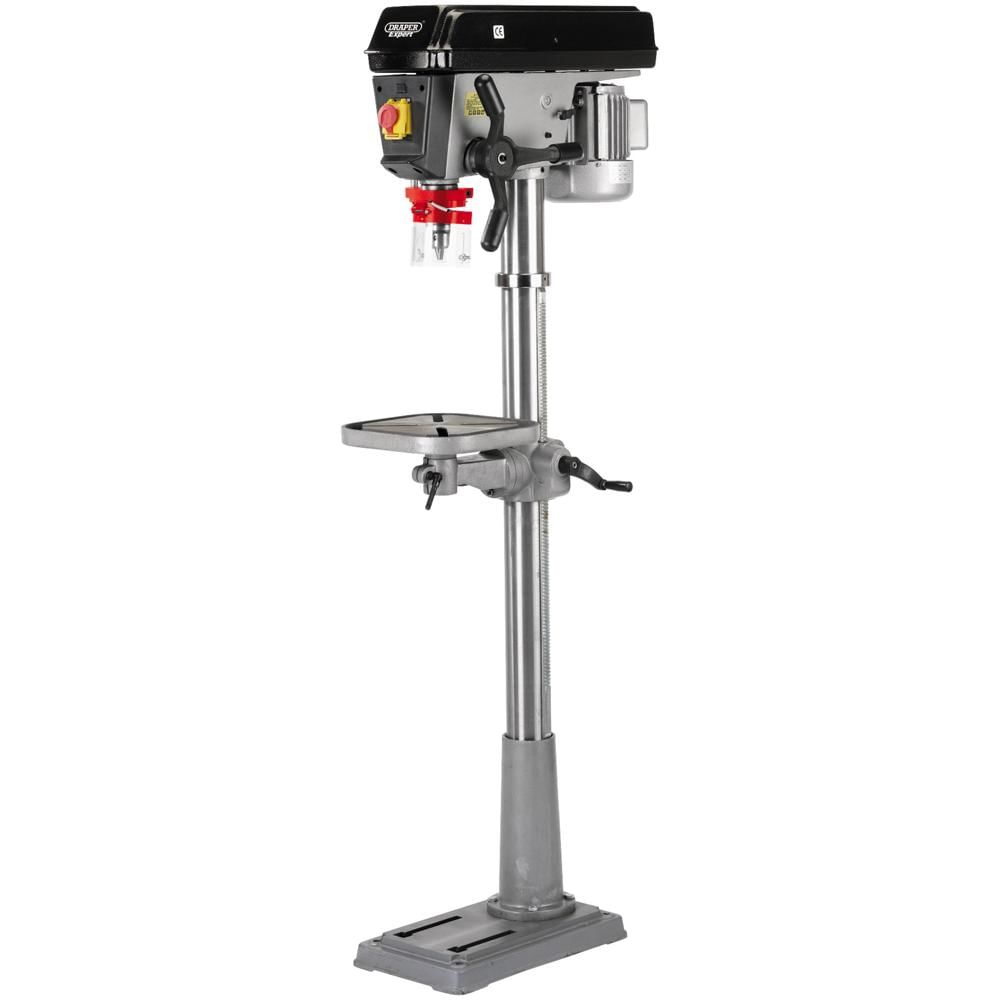

Draper DP65016E 16 Speed Heavy Duty Floor Standing Pillar Drill

The Draper DP65016E is a heavy duty floor standing pillar drill designed for engineering and fabrication workshops requiring precision drilling across a wide range of materials. With 16 variable speeds from 120 to 3000rpm and a 19mm drilling capacity, this professional-grade machine delivers the versatility needed for metalworking, fabrication and general workshop applications.

Built to exacting standards, the drill features a robust 80mm diameter column and substantial 290 x 290mm square work table mounted on a smoothly operated rack and pinion mechanism for precise height adjustment. The MT2 spindle taper accommodates professional tooling, whilst the 3-16mm chuck capacity and 80mm spindle travel provide flexibility across drilling operations. Safety is prioritised through the no-volt release switch, which prevents accidental starting after power interruption, plus an integral chuck guard and adjustable depth stop for controlled, repeatable results.

Construction quality is evident throughout, with an aluminium motor casing for effective heat dissipation and a lockable pulley cover protecting the 16-speed belt drive system. At 78kg with a 460 x 275mm footprint, this floor standing drill offers the stability required for accurate work whilst the 178mm throat depth provides good clearance for larger workpieces. Supplied complete with BS approved non-rewireable plug and 1.8m cable for immediate workshop installation.

Features and Benefits:
• 16 speed settings (120-3000rpm) for optimal drilling across different materials
• Heavy duty construction with 80mm column diameter for superior rigidity
• Smooth rack and pinion table adjustment for precise workpiece positioning
• No-volt safety release switch prevents unexpected restarts
• MT2 spindle taper compatible with professional tooling standards
• Lockable pulley cover and chuck guard for enhanced operator safety
• Adjustable depth stop for accurate, repeatable drilling operations

Specifications:
Base Size: 460 x 275mm
Chuck Capacity: 3-16mm
Collar Diameter: 60mm
Column Diameter: 80mm
Drilling Capacity: 19mm
Height: 1650mm
Speed: 16 (120-3000r/min)
Spindle Taper: MT2
Spindle Travel: 80mm
Table Size: 290 x 290mm
Throat Depth: 178mm
Weight: 78kg

Contents:
1 x Draper Expert 230V 16 Speed Heavy Duty Floor Standing Drill, 650W
