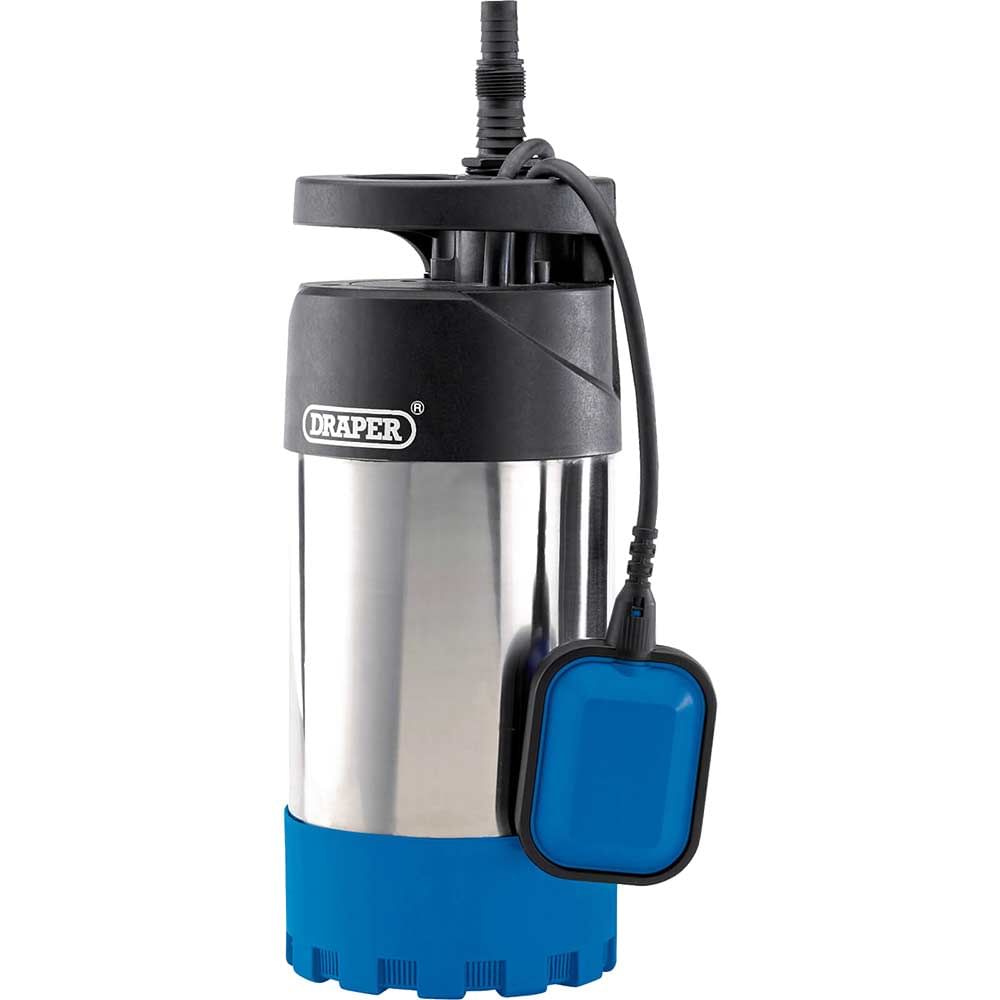

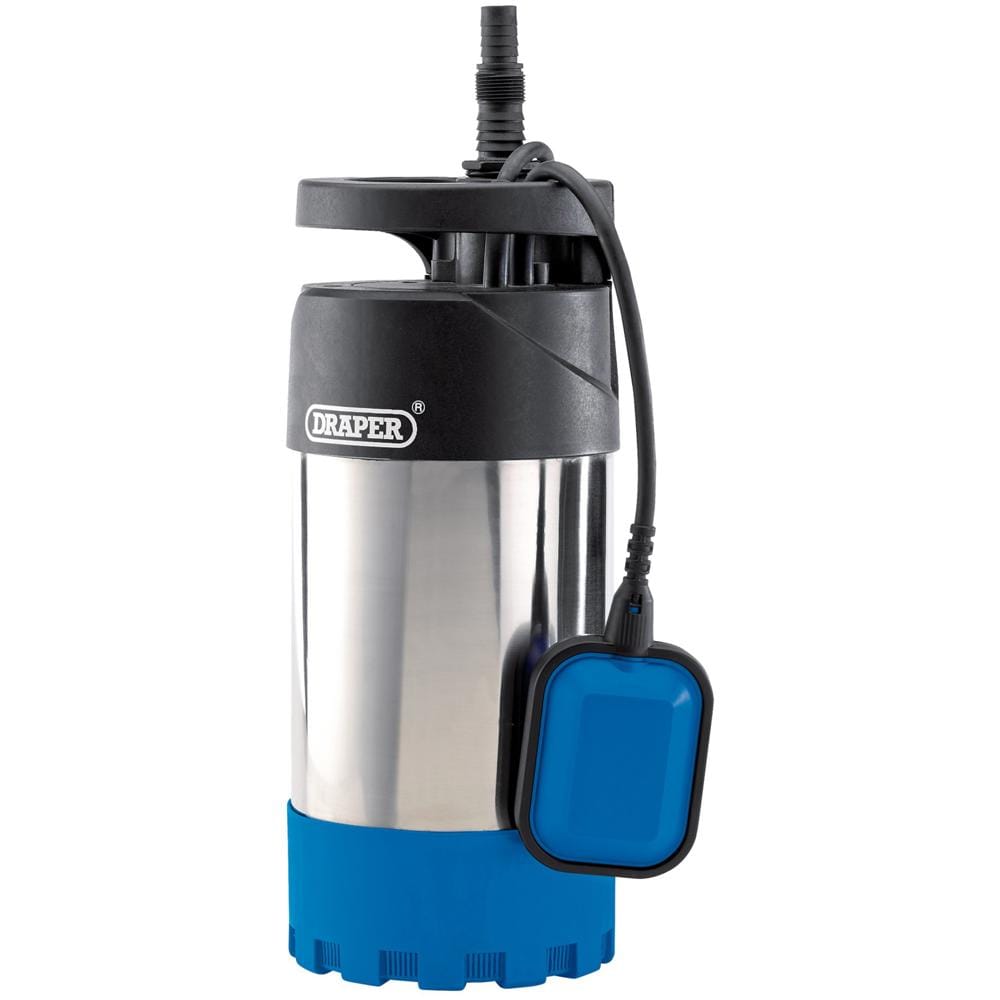

Draper DSWP1000A Submersible Deep Water Well Pump

The Draper DSWP1000A is a high-performance submersible water pump engineered for deep well applications requiring significant head height or high pressure delivery. Designed to operate at depths up to 15 metres, this multistage pressurising pump is ideal for water extraction from boreholes, wells, and deep water sources where conventional pumps lack sufficient lifting capacity.

Built around a robust 1000W motor, this deep water pump delivers an impressive maximum output of 91 litres per minute with a maximum head height of 40 metres, making it well-suited for irrigation systems, water transfer applications, and remote water supply installations. The integrated float switch provides automatic operation, shutting down the pump when water levels drop to prevent dry running and protect the motor from damage.

Thermal overload protection safeguards the pump during extended use, whilst the convenient carry handle facilitates transportation and installation. Supplied complete with approximately 15 metres of cable and an approved plug ready for connection to a 230V supply, this submersible pump offers professional performance for demanding pumping tasks. The 25mm output aperture and hose adaptor accommodate standard fittings for straightforward installation.

Features and Benefits:
• 1000W motor with multistage pressurising for high-pressure applications
• Automatic float switch prevents dry running and motor damage
• Thermal overload protection for extended operational life
• 15m cable length provides flexible installation options
• Lightweight 3.6kg design with carry handle for easy handling
• Backed by Draper 12 month warranty

Specifications:
Float Switch: Yes
Hose Adaptor Diameter: 25mm
Max Head Height: 40m
Max Output: 91L/min
Max Particle Diameter: 1mm
Motor: 1000W
Output Aperture Diameter: 25mm
Voltage: 230V
Weight: 3.6kg

Contents:
1 x Deep Water Submersible Well Pump with Float Switch, 91L/min, 1000W
