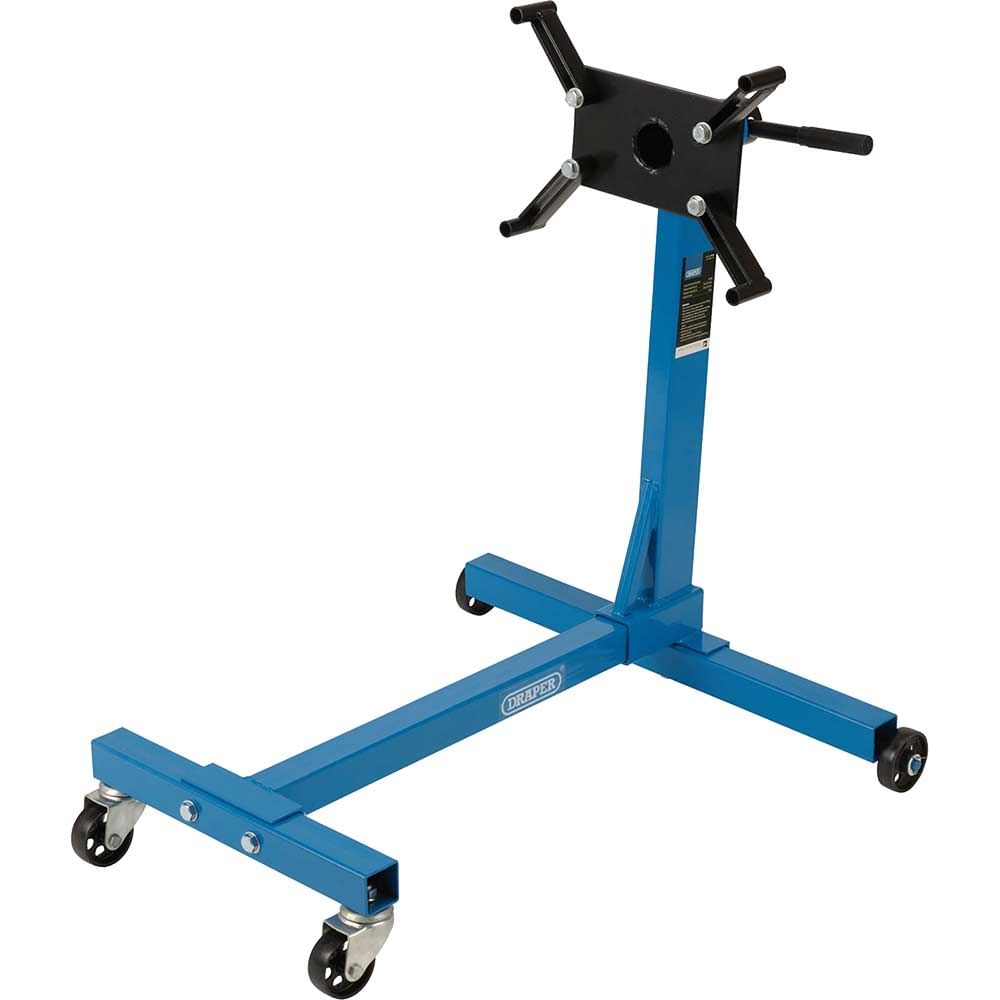

Draper Engine Stand

The Draper Engine Stand is a heavy-duty rotating engine stand designed for workshop use with engines and transmissions up to 450kg capacity. Built around a large H-frame steel chassis, this engine stand provides the stability and access needed for engine rebuilding, maintenance and overhaul work in professional garages and home workshops.

The mounting head features full 360° rotation, allowing mechanics to position the engine at any angle for complete access to all components without having to reposition the stand itself. The mounting pins are fully adjustable to accommodate different engine sizes and bolt patterns, making this stand suitable for a wide variety of petrol and diesel engines. The front mounting width ranges from 330mm to 455mm, providing compatibility with most common automotive and light commercial vehicle engines.

Two swivel castors are fitted to aid mobility around the workshop, making it easier to manoeuvre loaded engines into position or move the stand for storage. The robust H-frame design ensures the stand remains stable even when supporting substantial loads, giving confidence when working beneath or around mounted engines.

Features and Benefits:
• 360° swivelling head for access to all engine components
• Fully adjustable mounting pins to accept a wide range of engines and transmissions
• Swivelling castors for easy mobility and to aid positioning
• Large H-frame for extra stability

Specifications:
Capacity: 450kg
Front width: 450mm
Rear width: 685mm
Length: 780mm
Height: 850mm
Minimum mounting size: 30 x 5 x 330mm
Maximum mounting size: 30 x 5 x 455mm
Castors: 2
Weight: 20kg

Contents:
1 x Engine Stand, 450kg
