Draper Engine Timing Kit for BMW, Land Rover, MG and Rover Vehicles

# Output

The Draper Engine Timing Kit is a professional timing tool set designed for diesel engine servicing on BMW, Land Rover, MG, Rover and Vauxhall vehicles. This comprehensive kit enables mechanics to lock both camshaft and crankshaft components in the correct timed position, essential for accurate timing chain replacement and valve timing verification on 2.0, 2.5 and 3.0 litre diesel engines.

Suitable for a wide range of vehicles including BMW 1, 3, 5, 6 and 7 Series, BMW X3, X5 and X6 models, Land Rover Freelander, MG ZT, Rover 75 and Vauxhall Omega B, this timing kit covers multiple engine codes across various model years from 1998 to 2013. The kit includes crankshaft locking pins, a camshaft setting plate, locking clamp assembly, loop pin and two flywheel locking pin types, providing all necessary tools for precise engine timing work.

Ideal for professional mechanics working on BMW and Land Rover diesel engines, this kit offers equivalent functionality to OEM tools at a competitive price point. The camshaft setting plate locks the camshaft in position whilst the crankshaft locking pins secure the crankshaft, ensuring accurate timing during timing belt or chain service procedures.

Features and Benefits:
• Designed to cover a range of 2.0, 2.5 and 3.0 litre diesel engines
• Allows the user to lock the camshaft plate in position and the crankshaft locked in the 'timed' position, enabling the user to change the timing chain or check valve timing
• Compatible with multiple vehicle manufacturers including BMW, Land Rover, MG, Rover and Vauxhall
• Includes OEM equivalent tools for professional engine timing work

Vehicle Compatibility:
• BMW 1 Series 2004 - 2007
• BMW 3 Series 1999 - 2013
• BMW 5 Series 1998 - 2010
• BMW 6 Series 2007 - 2011
• BMW 7 Series 1998 - 2008
• BMW X3 2003 - 2010
• BMW X5 2000 - 2010
• BMW X6 2008 - 2010
• Land Rover Freelander 2000 - 2006
• MG ZT/ZT-T 2001 - 2005
• Rover 75 1999 - 2005
• Vauxhall Omega B 2001 - 2003

Engine Codes:
• 2.0cc: M47R, 20 4D 4, 20 4D 1, 204D3/TD4
• 2.5cc: Y25DT, 25 6D 1, 25 6D 2
• 3.0cc: 30 6D 1, 30 6D 2, 30 6D 3, 30 6D 4, 30 6D 5, M57, YD30T2

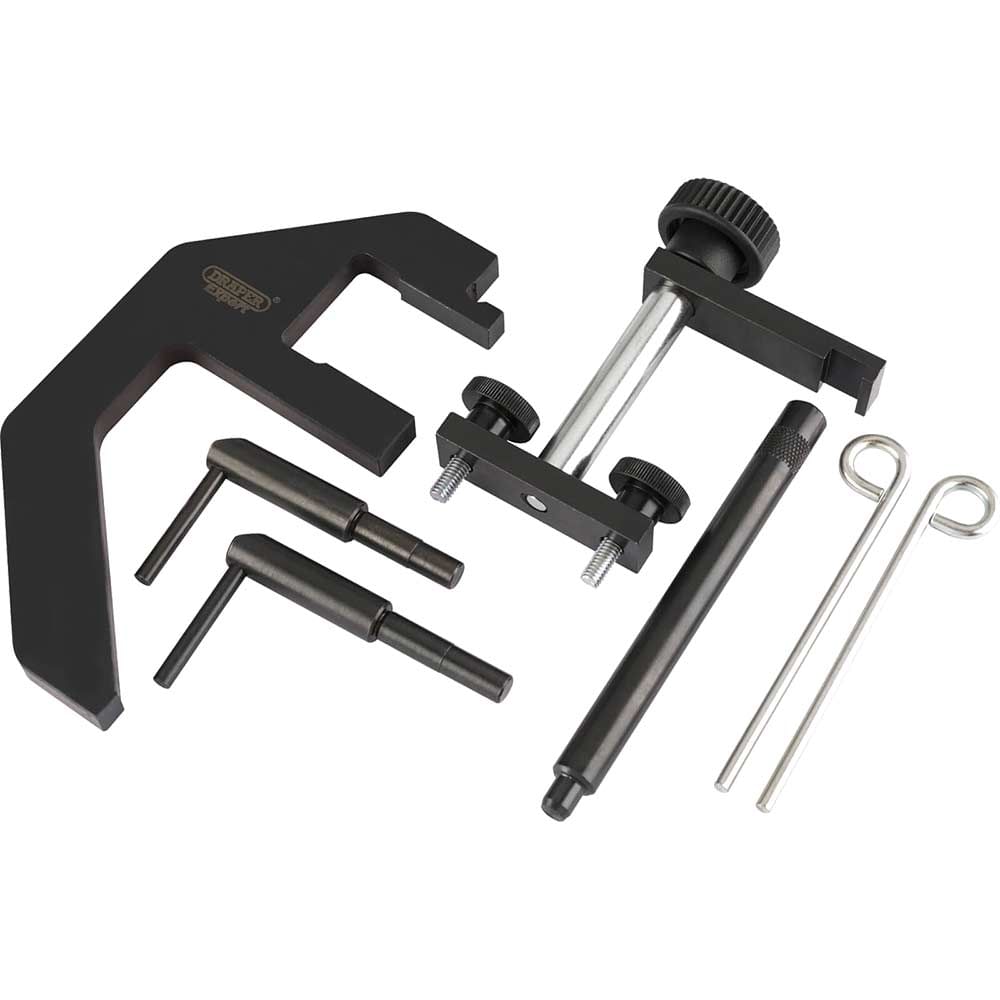

Contents:
• 1 x Crankshaft locking pin - OEM 12-171/KM-813 LRT-12-171/11.2.300
• 1 x Camshaft setting plate - OEM 12-173/KM-6267 LRT-12-174/11.6.320
• 1 x Locking clamp assembly - OEM 12-174/KM-6267 LRT-12-174/11.6.322
• 1 x Loop pin - OEM 12-172/KM-823 LRT-12-172/11.3.340
• 1 x Flywheel locking pin type 2 - OEM 11.6.080
• 1 x Flywheel locking pin type 1 - OEM 11.5.180
