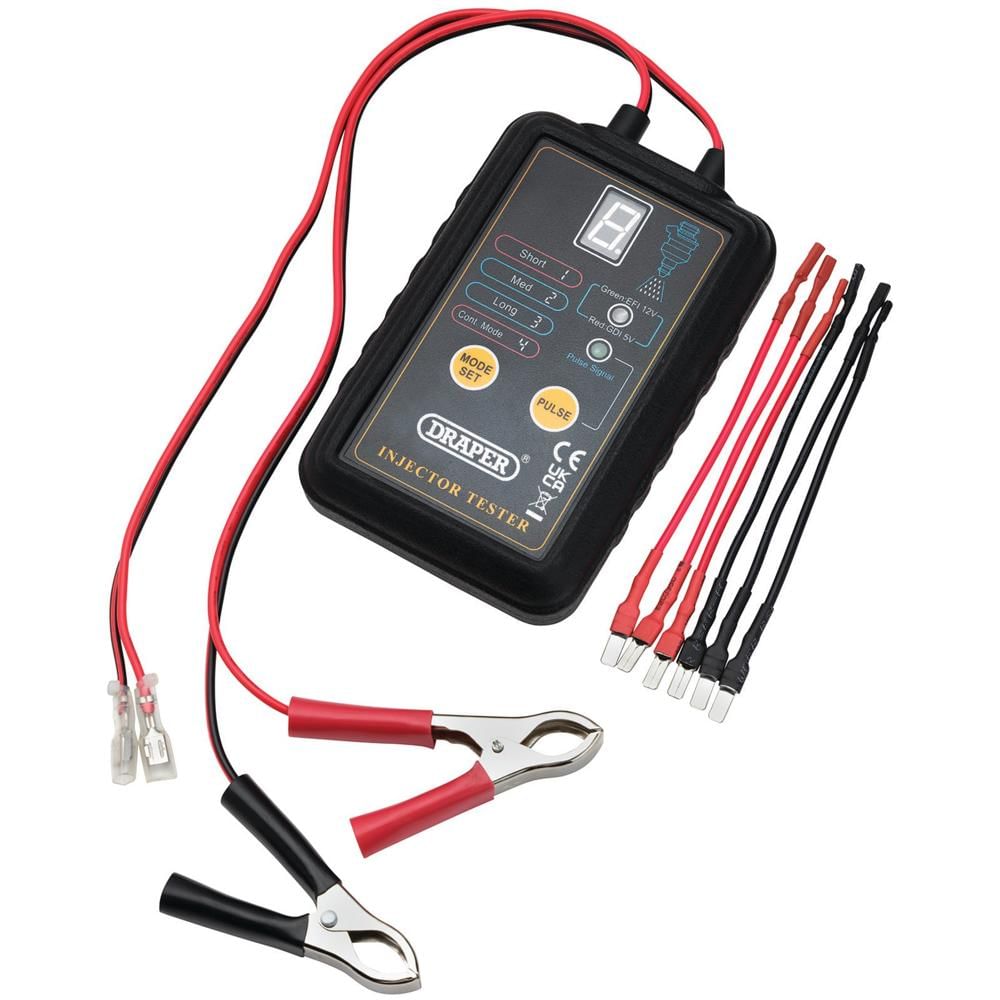

Draper ETIT 5v/12v Injector Tester

The Draper ETIT 5v/12v Injector Tester is a professional diagnostic tool designed for testing and diagnosing petrol fuel injectors in modern vehicles. This versatile tester allows mechanics and automotive technicians to electronically operate both 12V EFI (electronic fuel injection) and 5V GDI (gasoline direct injection) injectors, making it suitable for diagnosing a wide range of fuel delivery issues including blocked, sticky or leaking injectors.

The tester features switchable voltage output between 12V and 5V to accommodate different injector types, with four selectable operating modes: short, medium, long, and continuous. These modes provide flexible testing options, whilst the continuous mode enables the tester to be used as an aid during injector cleaning procedures. Clear LED indicators provide immediate visual feedback during operation, helping to quickly identify injector performance issues.

Powered directly from the vehicle's 12V battery, this compact and lightweight tester is ideal for workshop diagnostics and on-site vehicle servicing. Three pairs of extension leads are included to facilitate access in restricted engine bays, allowing the tool to reach injectors in tight spaces. At just 243g, the unit is highly portable and suitable for mobile mechanics and garage workshops working on petrol-powered vehicles.

Features and Benefits:
• LED indicators for clear visual feedback during testing
• Full function test or aid injector cleaning in continuous mode
• Switchable 12V and 5V output for different injector types
• Four selectable modes - short, medium, long and continuous
• Powered by 12V car battery for convenient workshop use
• Includes three pairs of extension leads for restricted engine bays

Specifications:
Power supply: 12V vehicle battery
Injector type 1: 12V EFI (Electronic fuel injection)
Injector type 2: 5V GDI (Gasoline direct injection)
Fuel type: Petrol
Positive/negative lead length (injector and battery): 450mm
Positive/negative extension lead length: 140mm
Dimensions: 140 x 90 x 135mm
Weight: 243g

Contents:
1 x 5V/12V Injector Tester
