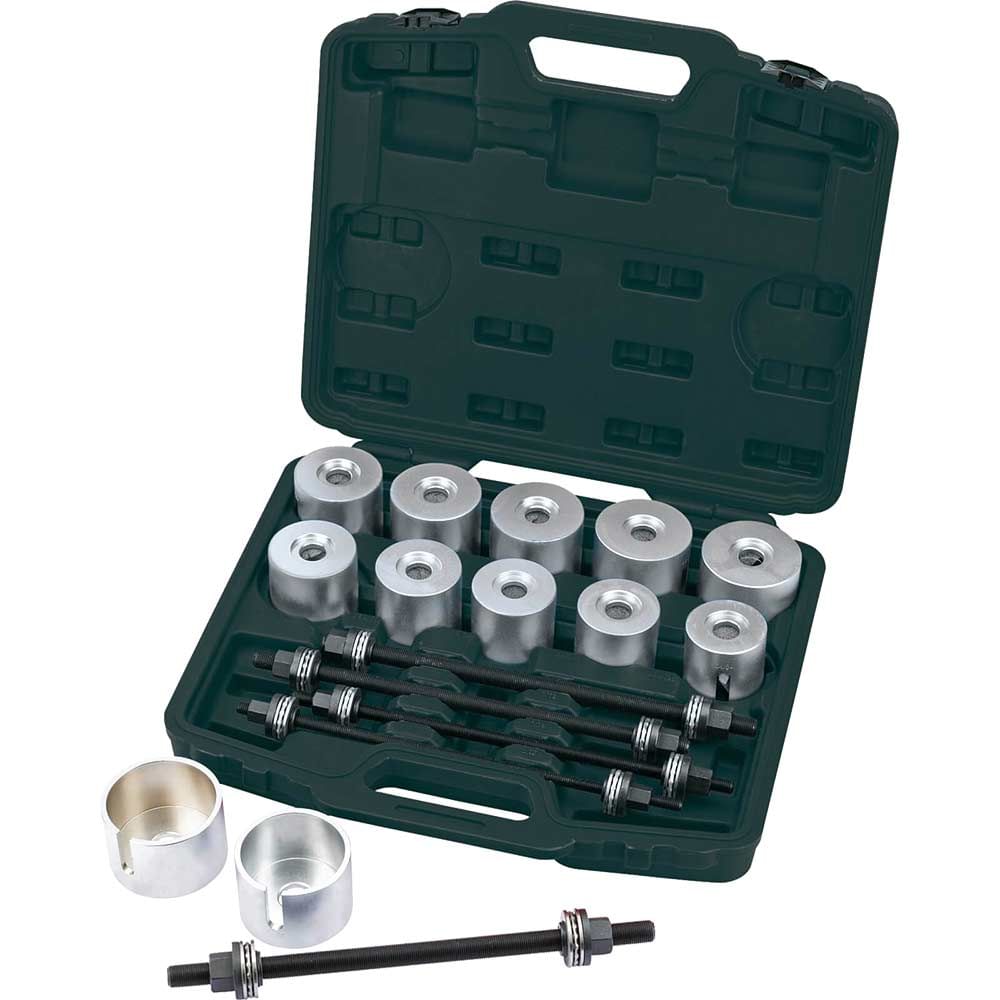

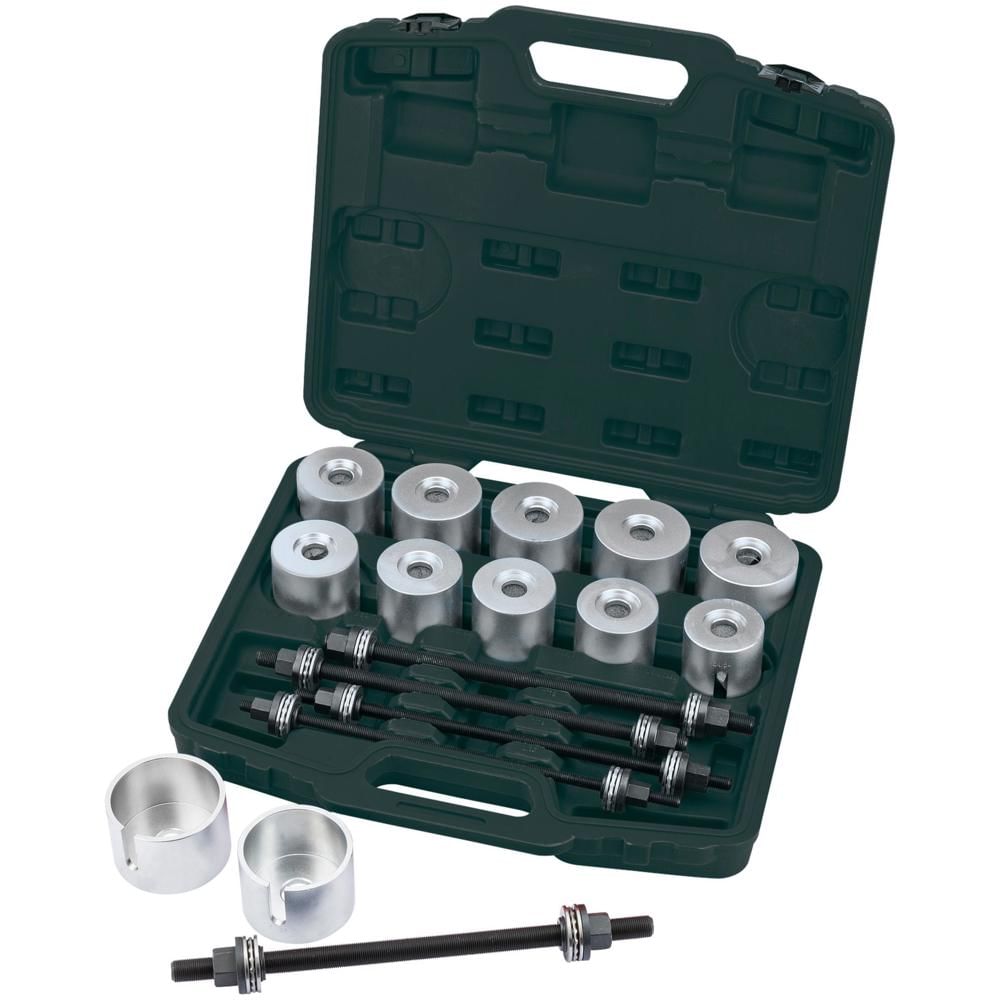

Draper Expert 27 Piece Bearing Seal and Bush Extraction Kit

The Draper Expert 27 Piece Bearing Seal and Bush Extraction Kit is a comprehensive tool set designed for the precise removal and installation of bearings, seals and bushes during engine and component servicing. This professional-grade kit provides mechanics and engineers with the essential adaptor rings and pulling spindles needed for controlled extraction work across a wide range of bearing sizes.

Featuring 22 high-quality steel adaptor rings spanning from 34mm to 90mm outer diameter, the kit covers the most commonly encountered bearing sizes in automotive, agricultural and industrial applications. The five fine thread puller bars (M10, M12, M14, M16 and M18) incorporate ball bearing thrust mechanisms with hex nut ends, ensuring smooth, even pressure distribution during extraction to minimise the risk of component damage.

This extraction kit is ideal for removing silent bearings, hydraulic bearings, rubber bearings, bearing bushes and shaft seals where conventional pullers may cause deformation or cracking. The graduated range of adaptor rings allows precise matching to the component being removed, whilst the thrust bearing design provides controlled, steady force application. Supplied in a blow mould carrying case with display sleeve for organised storage and easy component identification.

Features and Benefits:
• Comprehensive 22-piece adaptor ring set covering bearing sizes from 34mm to 90mm
• Fine thread puller bars with ball bearing thrust for smooth, controlled extraction
• High-quality steel construction for durability in professional workshop environments
• Suitable for normal bearings, silent bearings, hydraulic bearings, rubber bearings, bearing bushes and shaft seals
• Blow mould carrying case keeps components organised and protected

Contents:
1 x Adaptor ring, 34mm x 44mm
1 x Adaptor ring, 36mm x 46mm
1 x Adaptor ring, 38mm x 48mm
1 x Adaptor ring, 40mm x 50mm
1 x Adaptor ring, 42mm x 52mm
1 x Adaptor ring, 44mm x 54mm
1 x Adaptor ring, 46mm x 56mm
1 x Adaptor ring, 48mm x 58mm
1 x Adaptor ring, 50mm x 60mm
1 x Adaptor ring, 52mm x 62mm
1 x Adaptor ring, 54mm x 64mm
1 x Adaptor ring, 56mm x 66mm
1 x Adaptor ring, 58mm x 68mm
1 x Adaptor ring, 60mm x 70mm
1 x Adaptor ring, 62mm x 72mm
1 x Adaptor ring, 64mm x 74mm
1 x Adaptor ring, 66mm x 76mm
1 x Adaptor ring, 68mm x 78mm
1 x Adaptor ring, 70mm x 80mm
1 x Adaptor ring, 72mm x 82mm
1 x Adaptor ring, 75mm x 85mm
1 x Adaptor ring, 80mm x 90mm
1 x M10 pulling spindle
1 x M12 pulling spindle
1 x M14 pulling spindle
1 x M16 pulling spindle
1 x M18 pulling spindle
