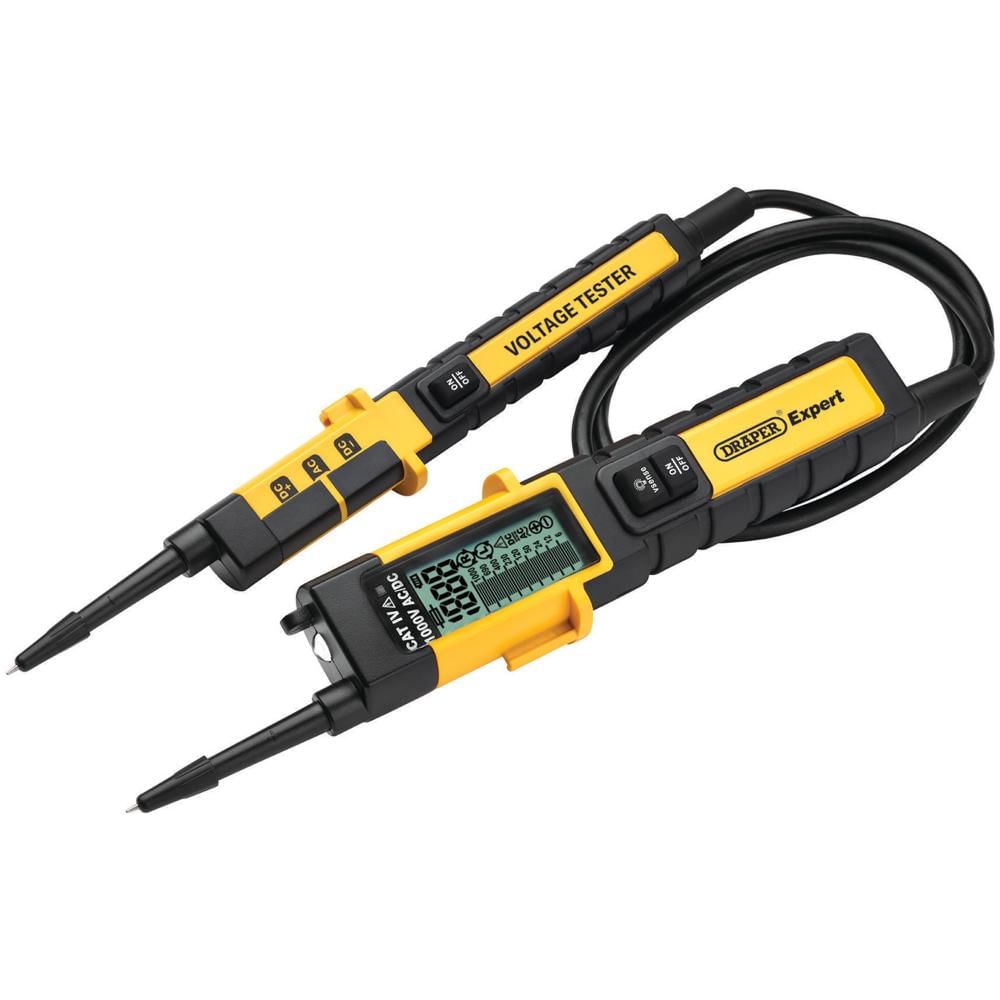

Draper Expert AC/DC CAT IV High Voltage Tester

The Draper Expert AC/DC CAT IV High Voltage Tester is a professional-grade voltage testing instrument designed for automotive, domestic, and electronic circuit diagnostics. Rated to CAT IV 1,000V, this versatile tester handles voltage ranges from 6V-1,000V DC and 24V-1,000V AC, making it suitable for a wide spectrum of applications from low-voltage automotive systems through to high-voltage industrial installations.

The tester features an easy-to-read LCD digital display with an integrated bar chart showing voltage ranges at 6, 12, 24, 50, 120, 230, 400, 690, and 1,000V increments. The insulated and sharpened probe allows safe access to circuits and switches with adjustable covers, while the built-in test point illumination light ensures visibility in dimly lit working environments. A self-test function verifies the unit's operational status before use, providing added confidence when working with live circuits.

With IP65 ingress protection, this voltage tester offers dust-tight and water-resistant performance for demanding workshop and field environments. It's particularly well-suited for electricians, automotive technicians, and marine engineers working on hybrid and electric vehicles, motorcycles, commercial vehicles, trailers, boats, and agricultural machinery. The compact 0.285kg design ensures portability without compromising functionality.

Features and Benefits:
• CAT IV 1,000V rating for safe use on high-voltage installations
• Wide voltage range covering 6V-1,000V DC and 24V-1,000V AC systems
• LCD display with bar chart for quick voltage identification
• Self-test function ensures reliable operation
• IP65 rated for dust and water resistance
• Integrated illumination light for working in low-light conditions
• Insulated sharpened probe for safe circuit access

Specifications:
CAT category: CAT IV 1,000V
AC voltage range: 24-1,000V
DC voltage range: 6-1,000V
Voltage increments: 1V
Accuracy: ±3% and ±3V
Ingress protection: IP65
Weight: 0.285kg

Contents:
1 x Draper Expert AC/DC High Voltage CAT IV Tester, 1000V
