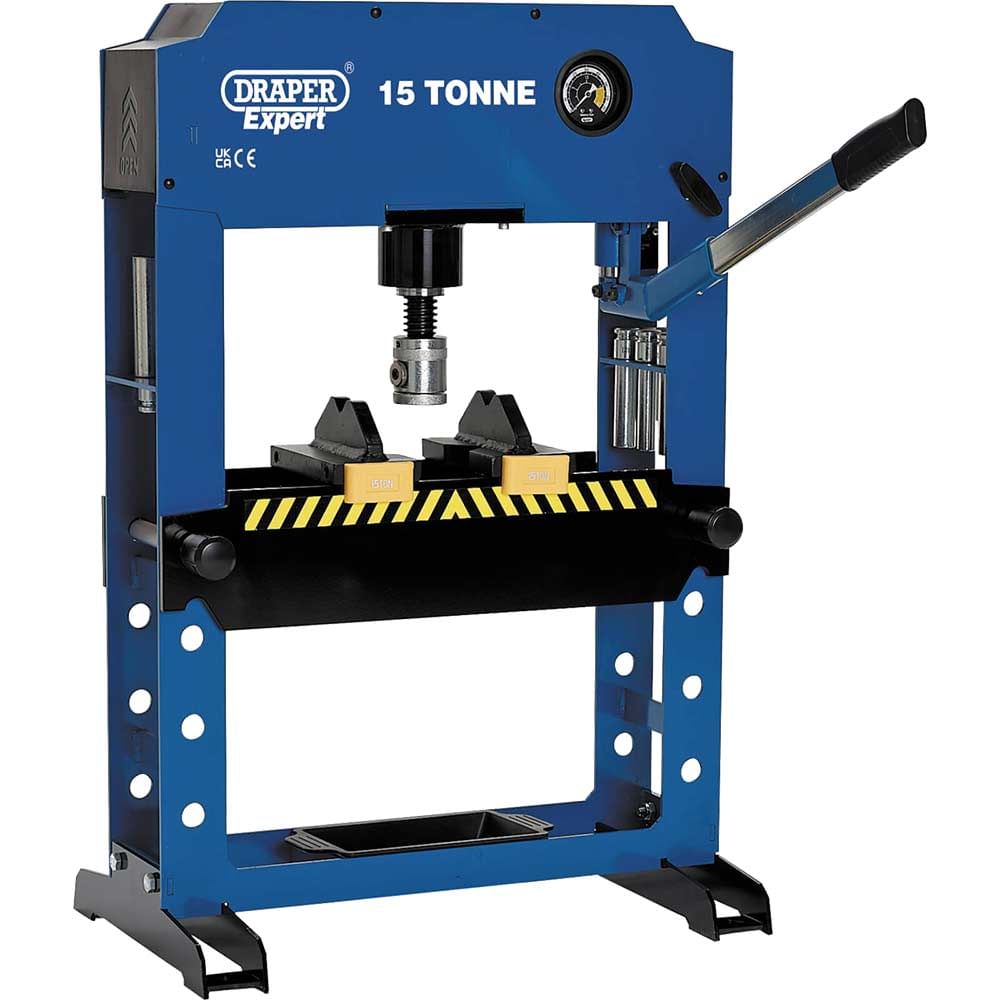

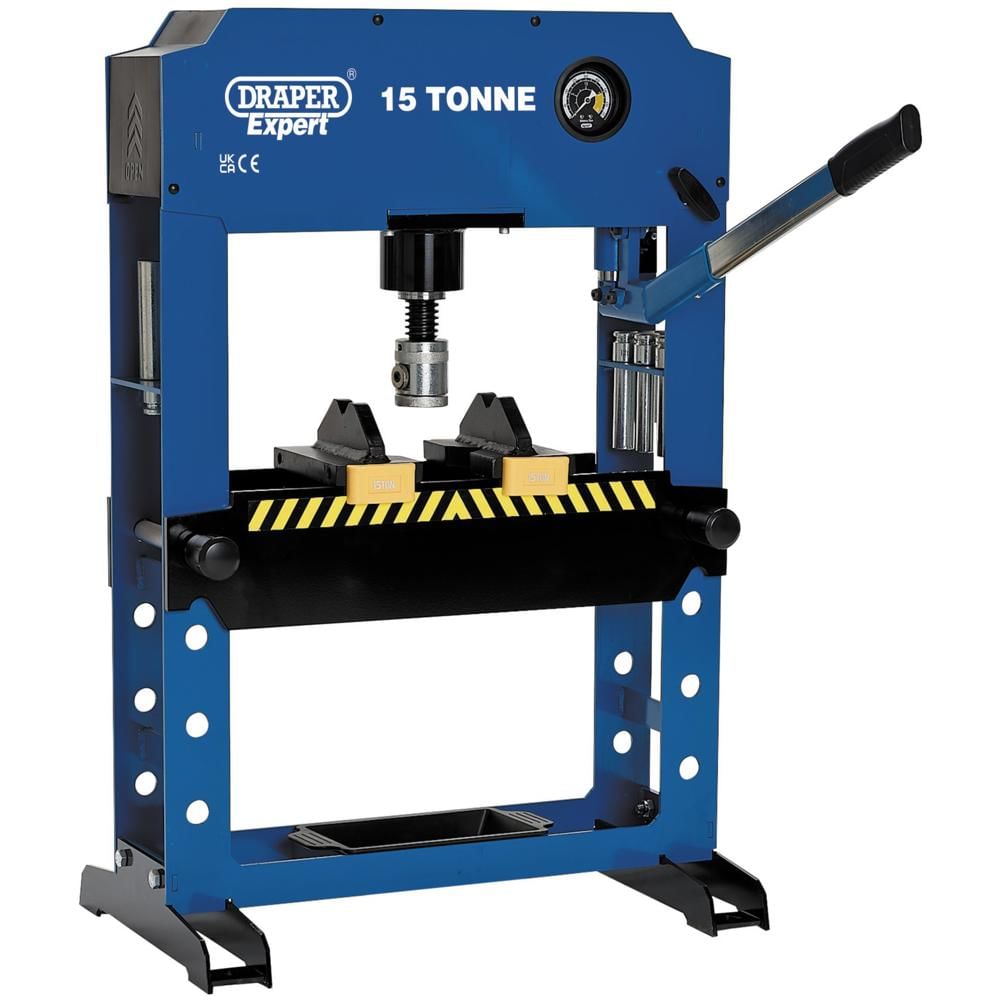

Draper Expert Hydraulic Bench Press

The Draper Expert Hydraulic Bench Press is a robust 15 tonne workshop press designed for demanding bearing removal, bushing installation, and component assembly tasks. This professional-grade bench press features manual hydraulic operation via a hand pump, delivering precise controlled pressure for a wide range of pressing applications in vehicle workshops, engineering facilities, and maintenance departments.

Built with a robot-welded one-piece frame, this hydraulic press offers exceptional stability during operation. The eight adjustable table height positions provide a versatile working range between 45-385mm, accommodating components of various sizes. Dustproof covers fitted to the top of the frame prevent contamination entering the pump and ram assembly, helping to extend service life and maintain consistent performance.

Ideal for bearing and bushing work, shaft straightening, and general pressing operations, this bench press is supplied complete with eight press pins covering capacities from 2-15 tonnes and two flat v-shaped pressing blocks. The removable parts tray located in the frame base keeps accessories organised and readily accessible during use.

Features and Benefits:
• Robot-welded one-piece frame for enhanced stability during pressing operations
• Eight adjustable table heights with 45-385mm working range
• Dustproof covers protect pump and ram from contamination
• Manual hydraulic hand pump for precise pressure control
• Removable parts tray in base frame for organised storage
• Complete with eight press pins (2-15 tonne capacity) and two pressing blocks

Specifications:
Capacity: 15 Tonne
Gauge diameter: 60mm
Ram stroke: 170mm
Ram diameter: 50mm
Table height: 45-385mm
Press pin capacity: 2-15 Tonnes
Overall height: 855mm
Frame dimensions: (H) 810 x (W) 440 x (D) 134mm
Weight (net): 56kg

Contents:
1 x Draper Expert Hydraulic Bench Press, 15 Tonne
