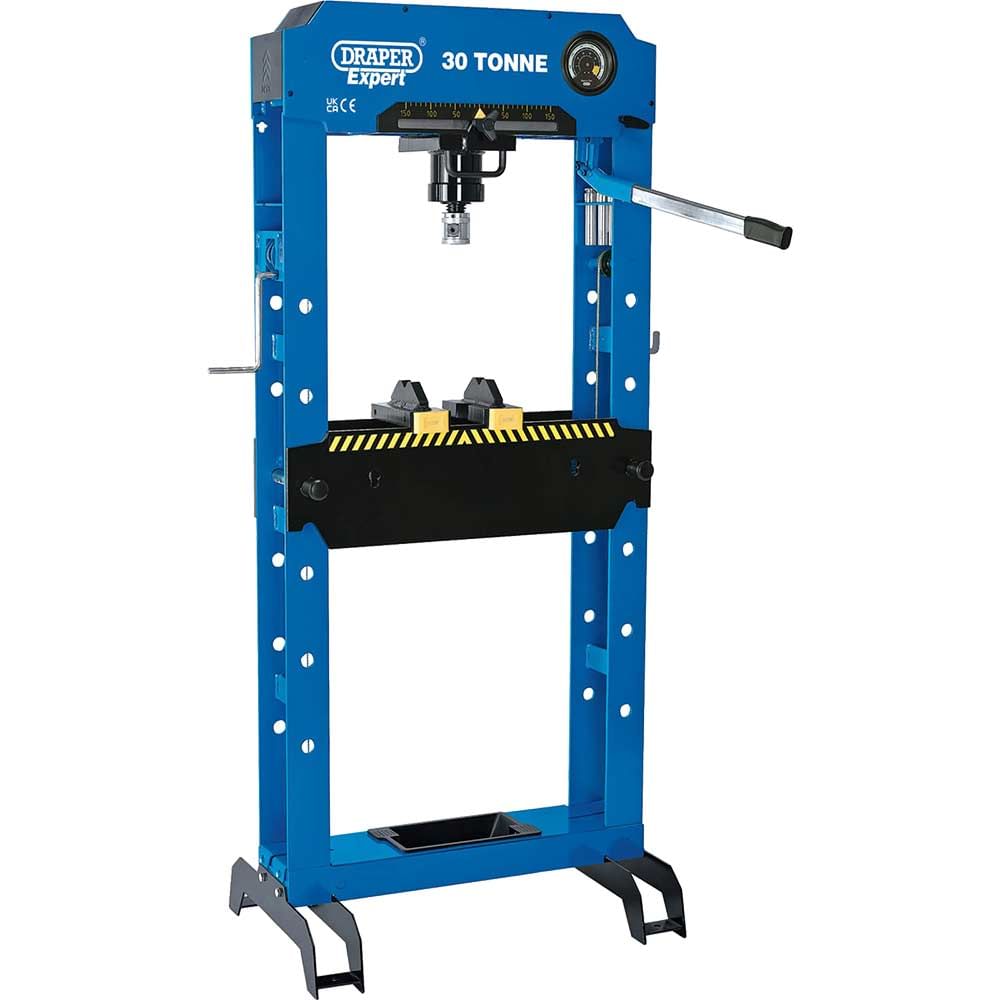

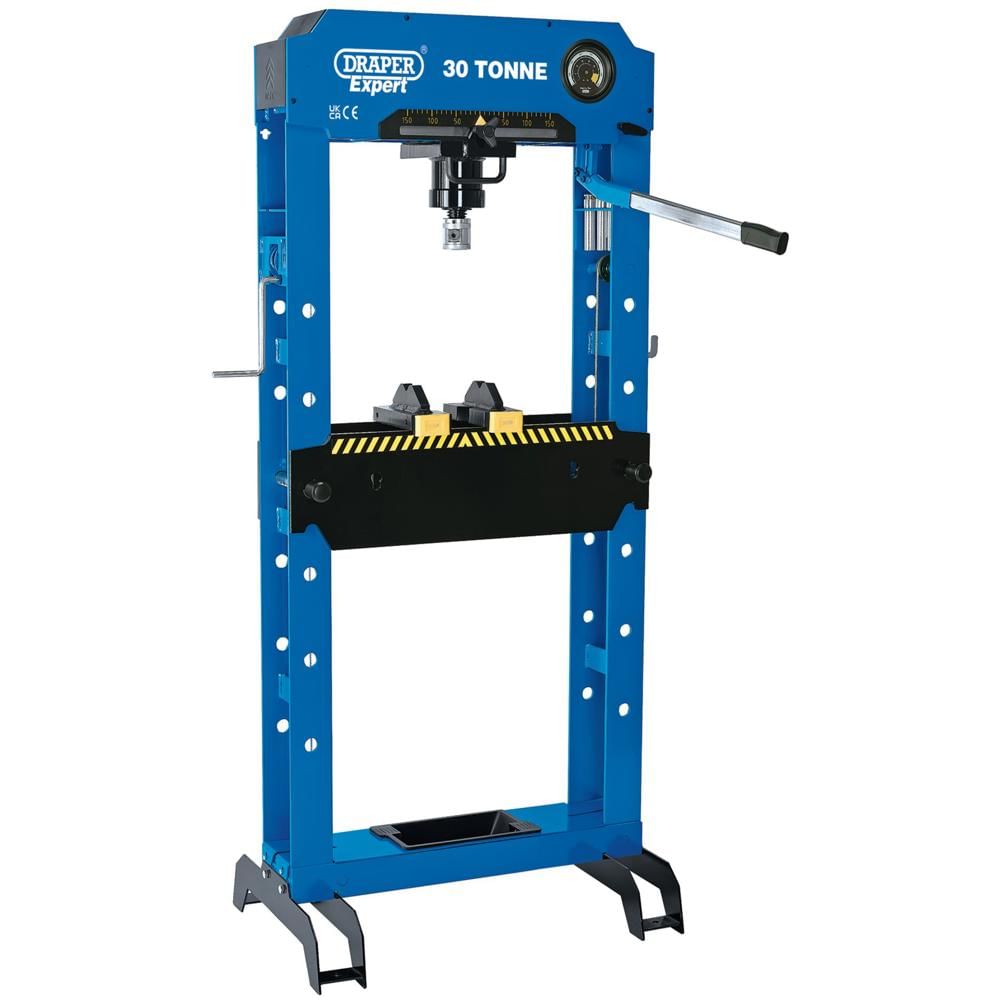

Draper Expert Hydraulic Floor Press

The Draper Expert Hydraulic Floor Press is a robust 30 tonne capacity workshop press designed for professional pressing operations in garages, workshops and industrial environments. Built with a robot-welded one-piece frame, this heavy-duty floor press delivers exceptional stability and precise control through its manually operated hand pump and sliding ram mechanism.

The press features 12 adjustable table height positions with a working range between 25-850mm, operated via a convenient rack and pinion winch system for quick positioning. Dustproof covers fitted to the top of the frame protect the pump and ram from workshop debris, helping to extend component service life and maintain consistent hydraulic performance. The 220mm ram stroke provides ample working capacity for bearing removal, bushing installation, shaft straightening and component assembly tasks.

Supplied complete with eight press pins ranging from 2-15 tonne capacity and two flat v-shaped pressing blocks, this floor press is ready for immediate use across a wide range of pressing applications. A removable parts tray located in the base frame provides convenient storage for pins and accessories, keeping essential components organised and within reach during operation.

Features and Benefits:
• Robot-welded one-piece frame construction for enhanced stability during pressing operations
• Sliding ram design enables precise positioning and controlled pressing
• Dustproof covers protect hydraulic components from workshop contaminants
• Rack and pinion table adjustment system for quick height changes
• Removable storage tray keeps press pins and accessories organised
• Includes eight press pins and two v-shaped blocks for versatile applications

Specifications:
Capacity: 30 Tonne
Gauge diameter: 100mm
Ram stroke: 220mm
Ram scale: 145mm - 0mm - 145mm
Ram diameter: 50mm
Table height: 25-850mm
Press pin capacity: 2-15 Tonnes
Overall height: 1800mm
Frame dimensions: (H) 1685 x (W) 600 x (D) 148mm
Weight (net): 157kg

Contents:
1 x Draper Expert Hydraulic Floor Press, 30 Tonne
