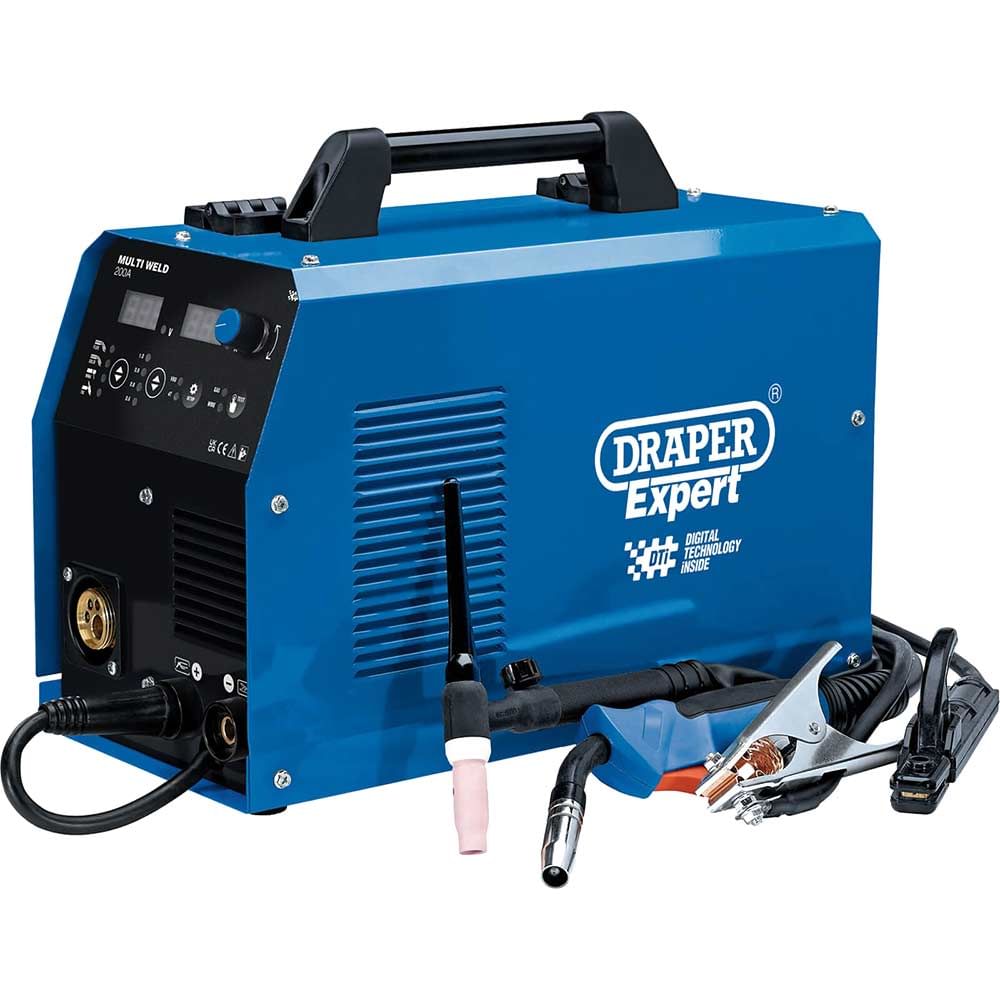

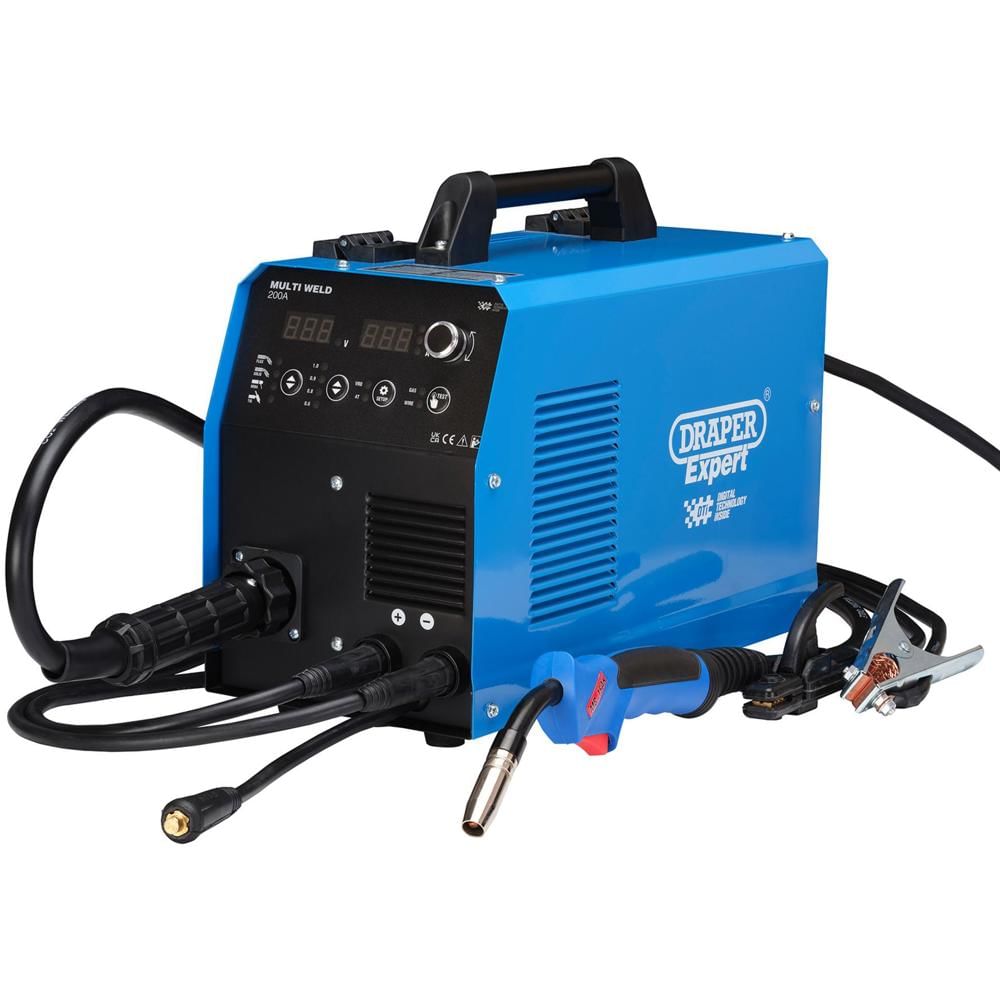

Draper Expert MW200A 200Amp MIG, TIG and MMA Inverter Welder

The Draper Expert MW200A is a professional-grade 3-in-1 inverter welder combining MIG, TIG and MMA welding capabilities in a single compact unit. Suitable for gas and gasless operation, this multi-process machine delivers impressive versatility for fabricators, workshops and engineering professionals working across diverse welding applications.

Built around advanced IGBT inverter technology, the MW200A provides efficient power delivery with improved arc stability and reduced energy consumption. The synergic wire feed system simplifies MIG welding setup, whilst the digital display offers clear monitoring of welding parameters. With an amperage range of 30-200A for MIG and 20-200A for both MMA and TIG processes, this welder handles everything from thin sheet metalwork to heavier structural fabrication.

The unit includes comprehensive accessories to get started across all three welding processes, including both MIG and TIG torches, electrode holder, earth clamp and contact tips. Despite its 200A output capability, the welder maintains a portable design at just 13.7kg, with a carry handle for easy transportation between job sites. The 60% duty cycle at maximum output ensures sustained productivity on demanding projects.

Features and Benefits:
• IGBT inverter technology for efficient, stable arc performance
• Three welding processes in one machine for maximum versatility
• Synergic wire feed simplifies MIG setup and operation
• Digital display for precise parameter control
• Anti-spatter feature reduces post-weld cleanup time
• Complete torch and accessory package included

Specifications:
Amperage range: 30-200A (MIG), 20-200A (MMA), 20-200A (TIG)
Power supply: 230V
Plug Fitted: NO (32A PLUG REQUIRED)
MMA Electrode size: 1.6-5.0mm
MIG Wire size: 0.6-1.2mm
Flux core wire: 0.6-1.2mm
Duty cycle: 60% @200A / 100% @160A
Dimensions: 420 x 205 x 300mm
Weight (net): 13.7kg
IGBT Tech: YES
Euro Torch Connector/Dinse Type Coupling: 10/25
Includes MIG & TIG Torches & Electrode Holder: YES
IGBT Inverter Technology: YES
Anti-Spatter Feature: YES
DTi: YES
Digital Display: YES

Contents:
1 x TIG torch
1 x Cable, 3m
1 x Electrode holder, 200A
1 x Earth clamp, 300A
1 x Contact tips, 0.8mm
1 x Contact tips, 1.0mm
1 x AK15 Euro MIG torch
1 x Cable, 3m
1 x Gas hose, 2m
1 x Chipping hammer/wire brush
1 x Face mask
