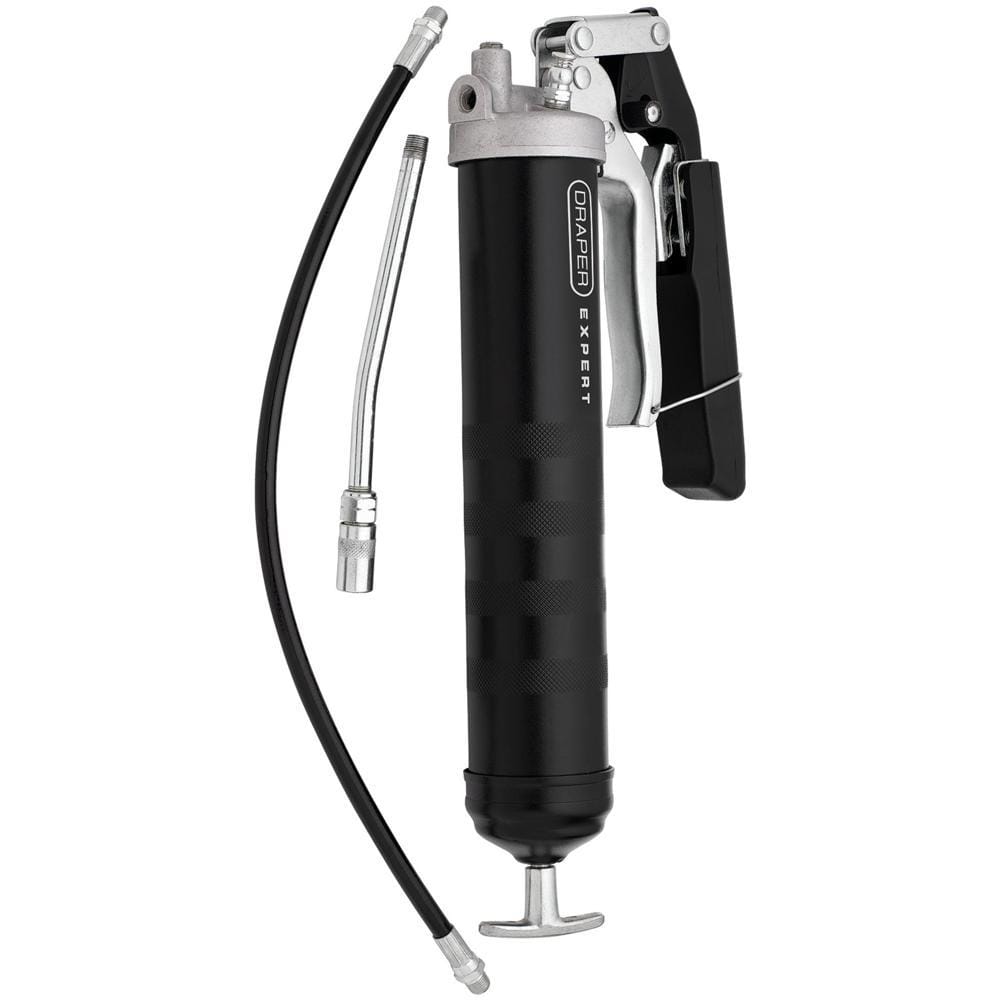

Draper Expert Pistol Grip and Lever Action Grease Gun

The Draper Expert Pistol Grip and Lever Action Grease Gun is a versatile, professional-grade grease gun designed for tradespeople who need adaptable performance across a range of lubrication tasks.

The key feature of this grease gun is its 2-way telescopic handle, which allows you to switch between pistol grip and lever action modes to suit the task at hand. The pistol grip configuration is ideal for working in confined spaces, while the lever handle delivers greater force for high-pressure and high-volume applications. A simple pull button and slide mechanism makes switching between modes quick and straightforward on the job.

The aluminium die-cast head is fitted with a bulk loader and air bleeder valve for easy loading and priming. Dual grease outlets — front and top — allow access to even the most awkward lubrication points, making this gun well suited to vehicle maintenance, plant machinery, and agricultural equipment. The head is also compatible with 450gsm grease cartridges or 650cm³ of bulk grease for added flexibility.

Supplied with a 450mm flexible hose and a 150mm steel extension with coupler, this grease gun is well equipped straight from the box for professional use.

Features and Benefits:
• 2-way telescopic handle switches between pistol grip and lever action modes
• Pistol grip ideal for use in confined spaces
• Lever action delivers high-pressure and high-volume output
• Simple pull button and slide to change between high-pressure and high-volume modes
• Aluminium die-cast head with bulk loader and air bleeder valve
• Dual grease outlets (front and top) for access to difficult lubrication points
• Compatible with 450gsm grease cartridges or 650cm³ bulk grease
• Supplied with 450mm flexible hose and 150mm steel extension and coupler

Specifications:
Bulk capacity: 650cc
Pistol (high pressure): 4,500psi — 0.65gm/stroke
Lever (high pressure): 7,000psi — 0.65gm/stroke
Lever (high volume): 5,500psi — 1.1gm/stroke
Delivery: 28g
Thread: 1/8 BSPT

Contents:
1 x 150mm Steel extension
1 x 1/8" BSPT x 450mm Flexible hose with professional 3-jaw coupler
