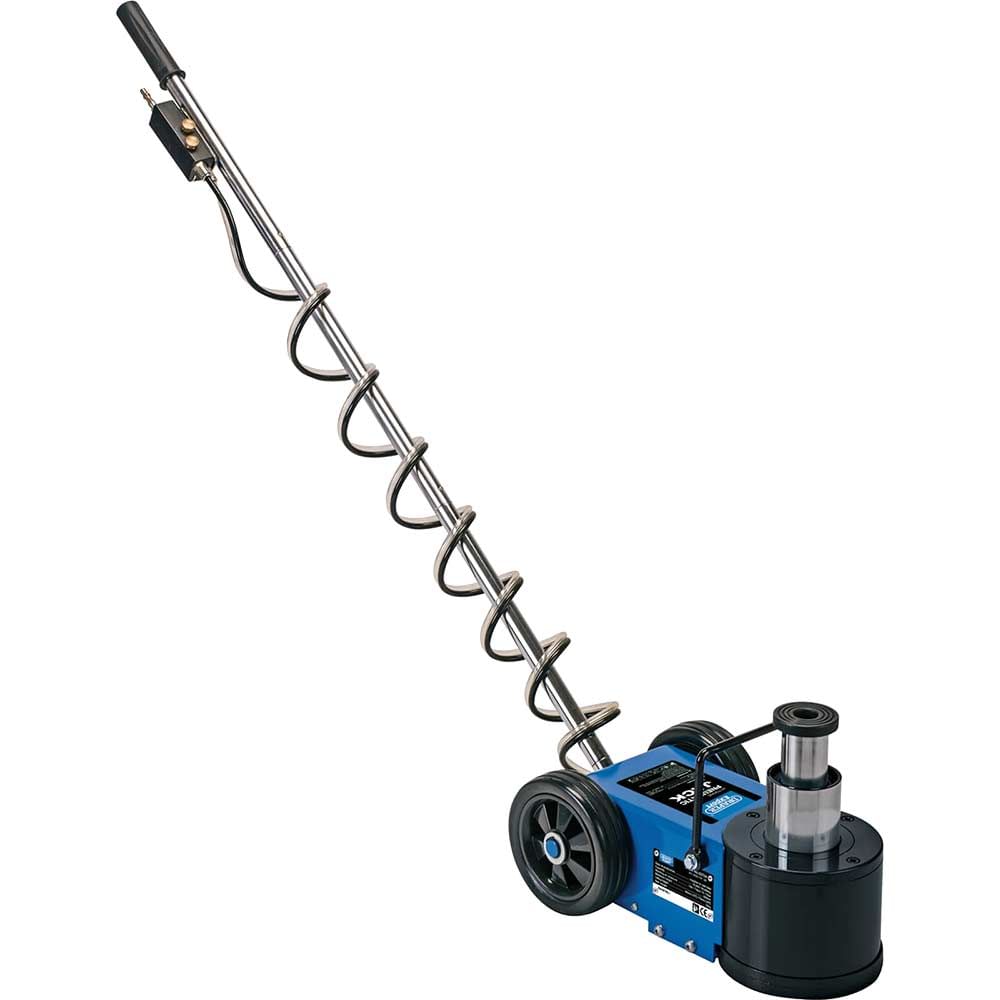

Draper Expert PJ30P Pneumatic Jack

The Draper Expert PJ30P is a professional-grade pneumatic trolley jack designed for heavy-duty commercial vehicle and plant machinery lifting applications. With an impressive 30 tonne capacity, this twin-stage air-operated jack combines powerful lifting capability with enhanced safety features, making it ideal for workshops, garages, and mobile service operations working with HGVs, agricultural equipment, and industrial machinery.

Built to EN1494 standards, this pneumatic jack features an ergonomic 1200mm handle fitted with both a 'Slow Down' valve for controlled lowering and a 'Self Return' switch that enhances operator safety during use. The industrial-quality seals extend operational life, whilst the safety overload valve prevents dangerous overloading. Twin rubber-coated wheels deliver smooth, quiet operation whilst protecting garage floors and improving manoeuvrability when positioning the jack.

The compact design offers a minimum height of 150mm, making it suitable for accessing low-clearance vehicles, with a maximum lifting height of 409mm when using the supplied 45mm and 75mm extensions. Operating at 9-12 BAR (130-174 psi) with a 1/4" BSP airline connector, it requires 10.5cfm air consumption for efficient performance.

Features and Benefits:
• 30 tonne capacity suitable for heavy commercial vehicles and plant equipment
• Twin-stage operation with 'Slow Down' valve for controlled, safe lowering
• 'Self Return' switch provides enhanced operator safety
• Rubber-coated wheels prevent floor damage whilst ensuring quiet operation
• Industrial-quality seals for extended service life
• Safety overload valve prevents dangerous overloading
• Supplied with 45mm and 75mm height extensions for versatile applications
• EN1494 certified for professional workshop use

Specifications:
Air Consumption: 10.5cfm
Air Inlet: 1/4" BSP
Capacity: 30 Tonne (30,000kg)15 Tonne (15,000kg)
Chassis Dimensions: 430 x 176 x 150mm
Handle Length: 1200mm
Lifting Height Position 1: 73mm
Lifting Height Position 2: 66mm
Max Height Stage 1: 343mm (inc extensions)
Max Height Stage 2: 409mm (inc extensions)
Min Height: 150mm
Nett Weight: 30kg
Operating Air Pressure: 9 – 12BAR (130 – 174psi)
Saddle Diameter: 70mm
Wheel Diameter: 165mm
Wheel Width: 42.5mm

Contents:
1 x Pneumatic Jack, 30 Tonne
