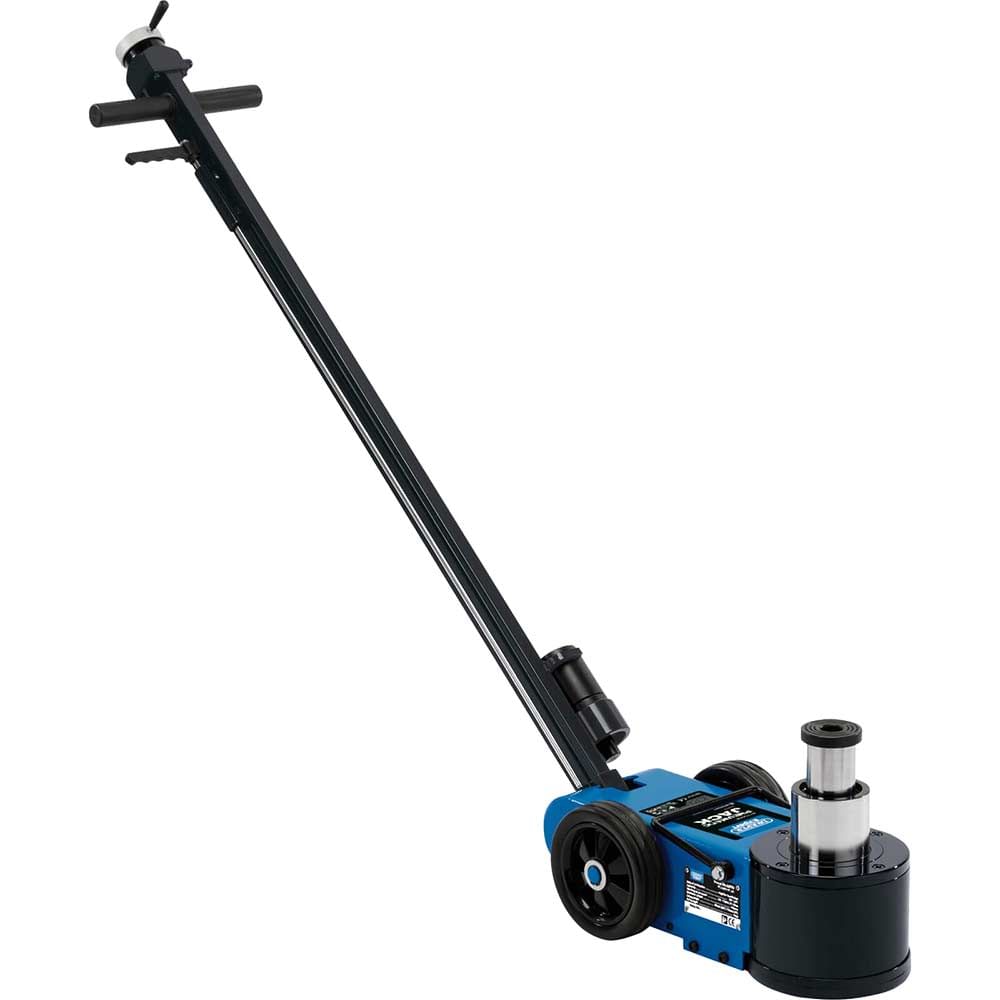

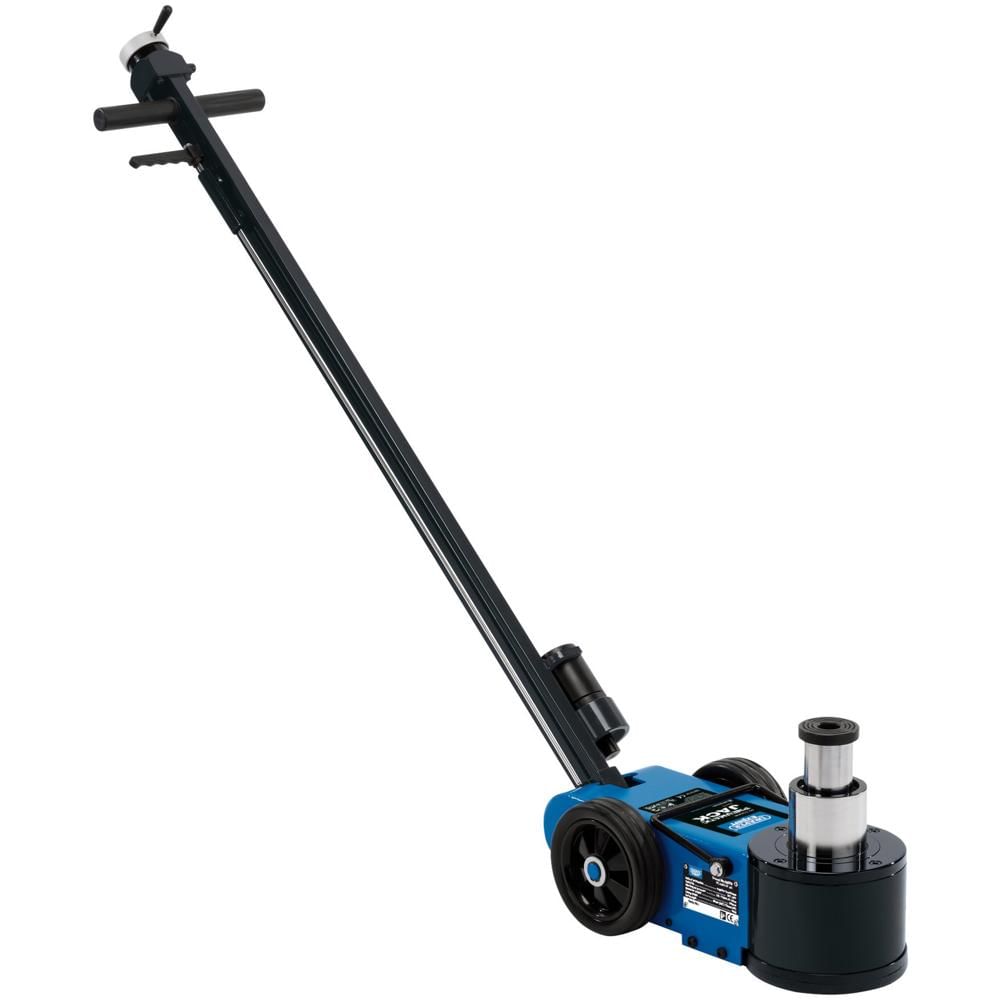

Draper Expert PJ40SC Pneumatic Jack

The Draper Expert PJ40SC is a twin stage pneumatic jack engineered for heavy-duty vehicle lifting in professional workshops and industrial environments. With an impressive 40 tonne lifting capacity, this air-powered jack combines portability with substantial lifting power, making it ideal for commercial vehicle maintenance, agricultural machinery servicing, and plant equipment repairs.

Designed with operator safety and convenience in mind, the PJ40SC features a three-stage adjustable ergonomic handle fitted with a 'Slow Down' valve for controlled lowering and a 'Self-Return' switch that automatically returns the jack to its starting position. Industrial quality seals extend the operational lifespan whilst a safety overload valve prevents accidental overloading. The twin rubber-coated polypropylene wheels ensure smooth, quiet operation whilst protecting workshop floors from damage and enhancing manoeuvrability across different surfaces.

The jack operates at 9-12 BAR (130-174 psi) with an air consumption of 11.5 cfm, connecting via a standard 1/4" BSP airline fitting. Supplied complete with 45mm and 75mm height lift extensions, the unit offers flexible lifting heights from a minimum of 150mm up to a maximum of 409mm. Manufactured, tested and certified to the current EN1494 standard, this 40kg unit provides reliable performance for demanding workshop applications.

Features and Benefits:
• Compact twin stage pneumatic jack with 40 tonne lifting capacity
• Ergonomic handle grips with three-stage adjustment
• 'Slow Down' valve for controlled lowering
• 'Self-Return' switch for automatic reset
• Twin PP and rubber wheels for floor protection and smooth movement
• Industrial seals for extended service life
• Supplied with 1/4" BSP inlet and 45mm/75mm extensions
• Manufactured, tested and certified to the current EN1494 standard

Specifications:
Air Consumption: 11.5cfm
Air Inlet: 1/4" BSP
Capacity: 40 Tonne (40,000kg) / 20 Tonne (20,000kg)
Chassis Dimensions: 480 x 186 x 150mm
Handle Length: 1300mm
Lifting Height Position 1: 73mm
Lifting Height Position 2: 66mm
Max Height Stage 1: 343mm (inc extensions)
Max Height Stage 2: 409mm (inc extensions)
Min Height: 150mm
Nett Weight: 40kg
Operating Air Pressure: 9 – 12BAR (130 – 174psi)
Saddle Diameter: 70mm
Wheel Diameter: 165mm
Wheel Width: 42.5mm

Contents:
1 x Pneumatic Jack, 40 Tonne
