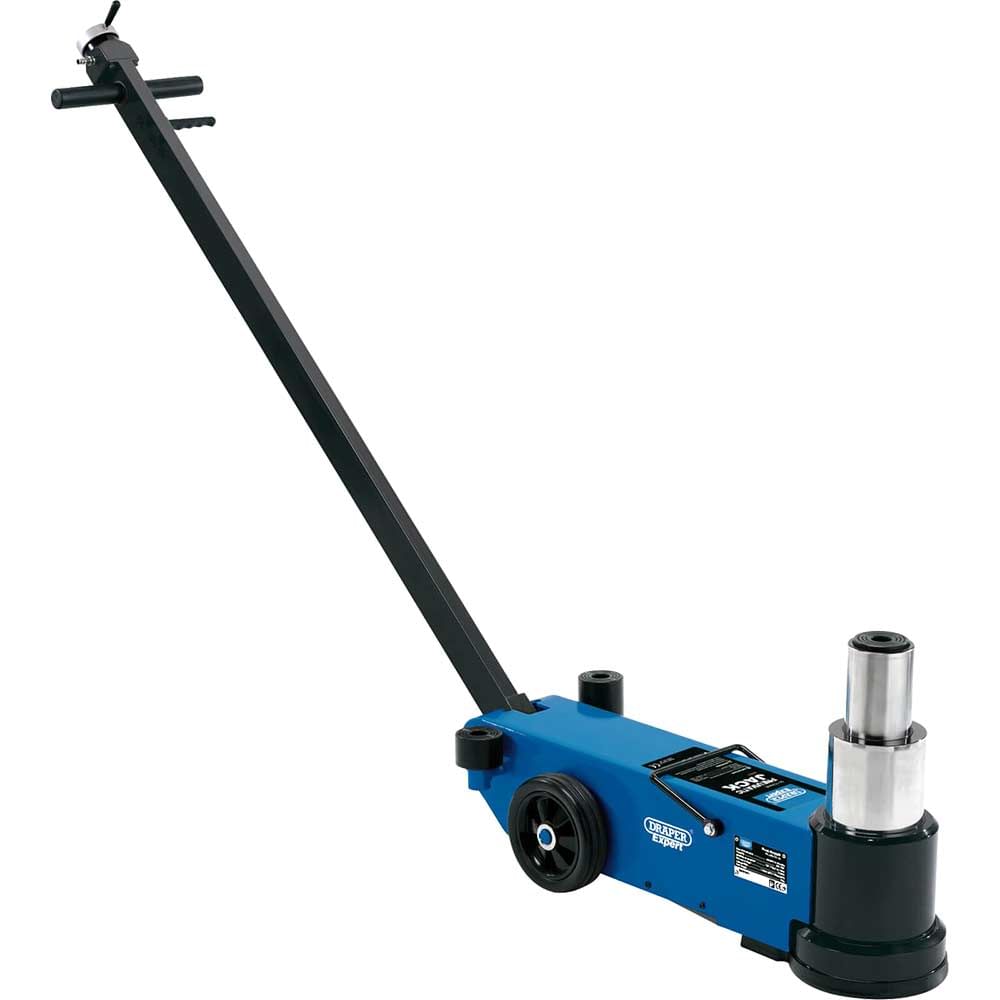

Draper Expert PJ50 Pneumatic Jack

The Draper Expert PJ50 is a heavy-duty pneumatic trolley jack designed for professional vehicle workshops and commercial garages handling heavy-duty lifting applications. With a 50 tonne lifting capacity, this twin stage pneumatic jack provides the power needed for buses, HGVs, agricultural machinery and other large commercial vehicles.

Engineered for professional use, the PJ50 features a 3-stage adjustable ergonomic handle with integrated 'Slow Down' valve and 'Self Return' switch, delivering enhanced operator control and safety during lifting operations. The twin rubber-coated wheels ensure smooth, quiet movement across workshop floors whilst preventing surface damage and improving manoeuvrability when positioning under vehicles.

Built to withstand demanding workshop environments, this pneumatic jack is fitted with industrial quality seals for extended service life and incorporates a safety overload valve for operator protection. The unit operates at 9-12 BAR (130-174 psi) with an air consumption of 11.5cfm, connecting via a standard 1/4" BSP airline connector. Supplied with 45mm and 75mm height lift extensions for versatile lifting configurations, the jack is manufactured, tested and certified to the current EN1494 standard.

Features and Benefits:
• Twin stage pneumatic jack capable of lifting 50 tonnes
• Ergonomic handle grips with 'Slow Down' valve for controlled operation
• 'Self Return' switch for enhanced safety and ease of use
• Twin PP and rubber wheels for quieter operation and floor protection
• Industrial seals for prolonged service life
• Safety overload valve for operator protection
• Supplied with 1/4" BSP inlet and 45mm and 75mm extensions
• Manufactured, tested and certified to EN1494 standard

Specifications:
• Air Consumption: 11.5cfm
• Air Inlet: 1/4" BSP
• Capacity: 50 Tonne (50,000kg) / 25 Tonne (25,000kg)
• Chassis Dimensions: 805 x 200 x 215mm
• Handle Length: 1380mm
• Lifting Height Position 1: 115mm
• Lifting Height Position 2: 114mm
• Max Height Stage 1: 450mm (inc extensions)
• Max Height Stage 2: 564mm (inc extensions)
• Min Height: 215mm
• Nett Weight: 73kg
• Operating Air Pressure: 9 – 12BAR (130 – 174psi)
• Saddle Diameter: 70mm
• Wheel Diameter: 165mm
• Wheel Width: 42.5mm

Contents:
• 1 x Pneumatic Jack, 50 Tonne
