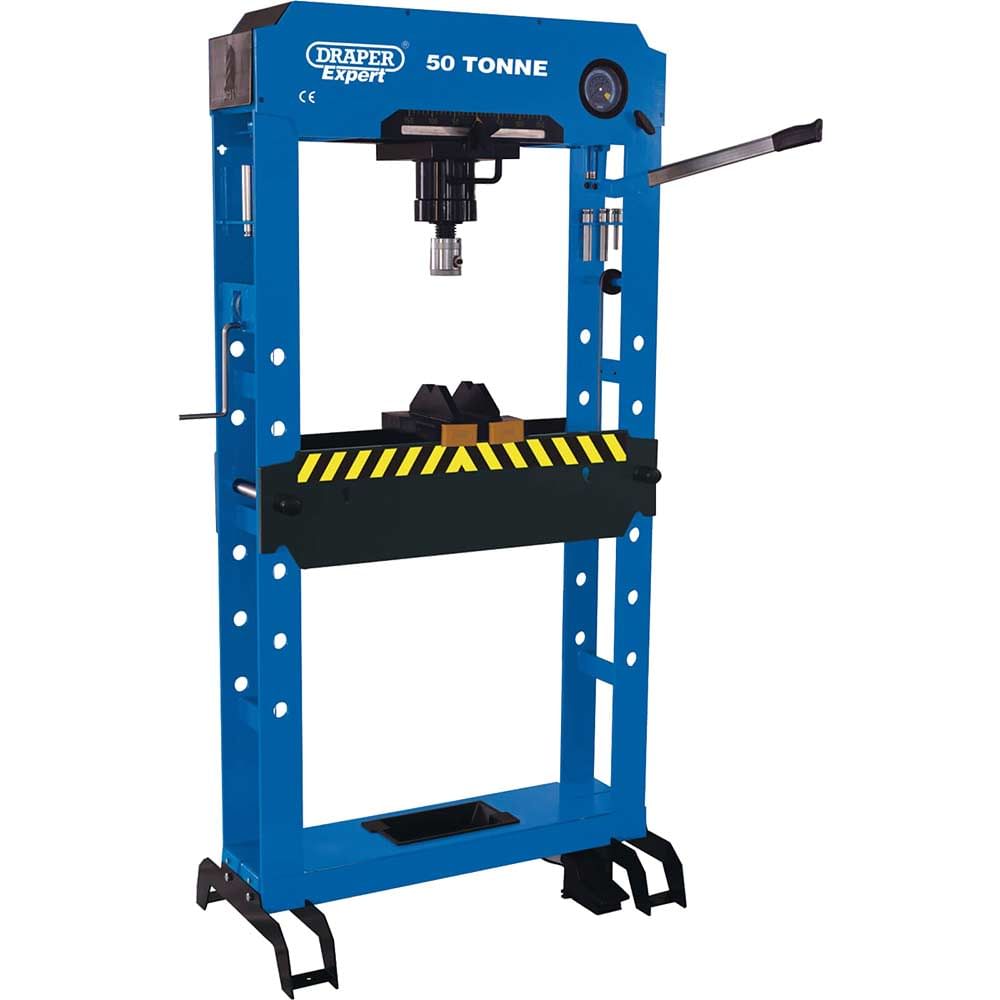

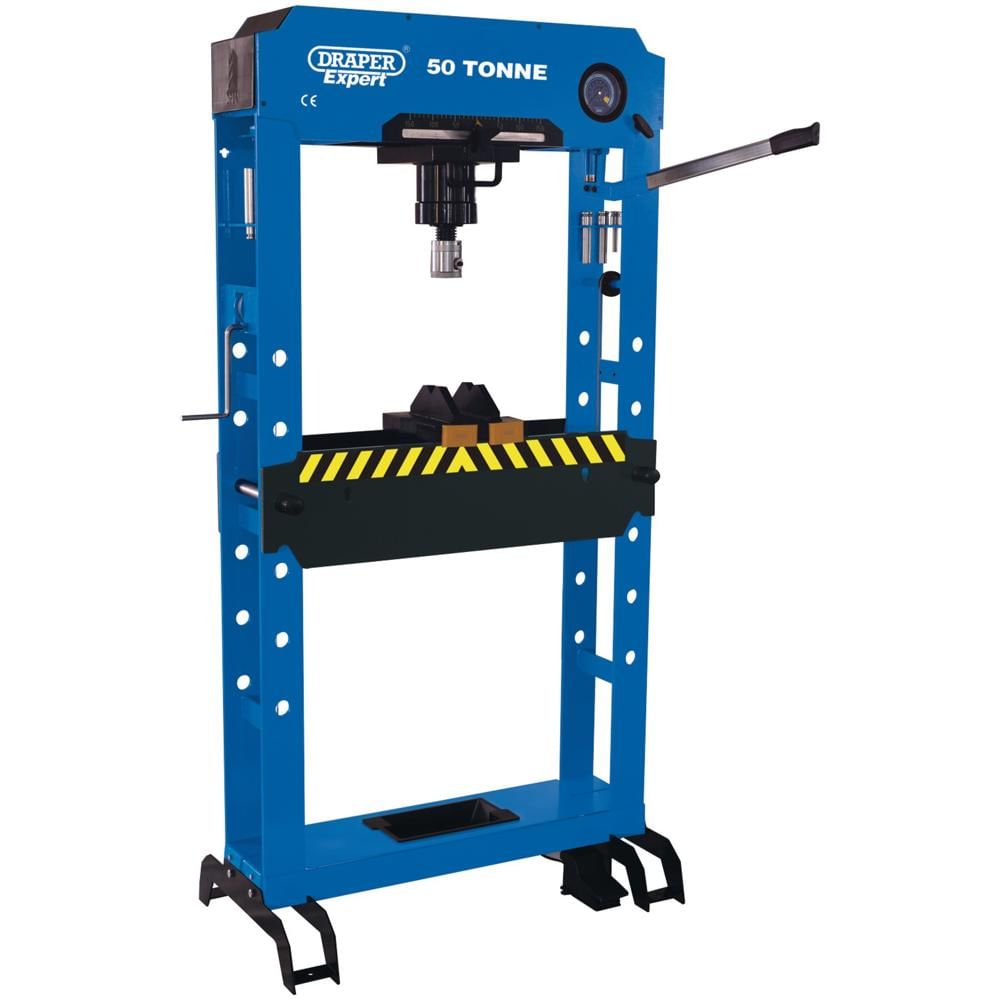

Draper Expert Pneumatic/Hydraulic Floor Press

The Draper Expert Pneumatic/Hydraulic Floor Press is a heavy-duty 50 tonne workshop press designed for demanding pressing, straightening and assembly applications in professional garage and engineering environments.

This floor-standing press combines both pneumatic and manual operation modes, offering flexibility for different workshop setups and task requirements. The movable cylinder design allows for precise positioning, whilst the two-stage working table adjustment system enables accurate height configuration for various workpiece sizes. The press is supplied with a comprehensive accessory set including V blocks specifically for working on cylindrical components such as bearings, bushings and shafts, plus a complete pin set with integrated storage built into the pallet for convenient organisation.

Ideal for automotive workshops, fabrication shops and industrial maintenance facilities, this floor press is particularly suited to bearing removal and installation, shaft straightening, and component assembly tasks where controlled, substantial force is required. The 780mm maximum working height and 215mm ram stroke provide versatile capacity for both small precision work and larger pressing operations.

Features and Benefits:
• Pneumatic and manual 50T floor press with movable cylinder for operational flexibility
• Supplied with pin set and two V blocks for working on cylindrical workpieces
• Fitted with two-stage working table adjustment and built-in pin set storage

Specifications:
Capacity: 50 tonnes
Max Height Ram to Table: 780mm
Min Height Ram to Table: 80mm
Overall Height: 1900mm
Overall Width: 930mm
Ram Stroke: 215mm
Table Depth: 200mm
Table Width: 750mm

Contents:
1 x Pneumatic/Hydraulic Floor Press, 50 Tonne
