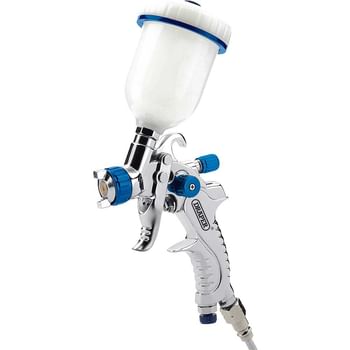

Draper GSG5-100 Gravity Feed HVLP Air Spray Gun

The Draper GSG5-100 is a general purpose HVLP air spray gun designed for professional finishing applications across all paint types. Built with a durable aluminium body and gravity feed system, this spray gun delivers efficient paint transfer with minimal overspray and bounce-back.

The 1.0mm fluid nozzle provides a fluid delivery rate of 70-110ml/min, making this spray gun ideal for applying primers, topcoats, and water-based finishes. Operating at 43psi (3 Bar) with an average air consumption of 8cfm (226 l/min), it offers both variable fan control and fully adjustable flow for precise application control. The full metal construction ensures longevity in demanding workshop environments.

Supplied complete with a cleaning brush and service spanner, the GSG5-100 is straightforward to maintain between jobs. Spare nozzle, needle and cap sets are available separately, allowing you to adapt the spray gun for different coating viscosities and applications.

Features and Benefits:
• Full metal body construction for durability and professional performance
• HVLP technology maximises paint transfer efficiency whilst minimising waste
• Compatible with all paint types including water-based coatings
• Variable fan pattern and fully adjustable flow control for precise application
• Minimal bounce-back reduces overspray and material loss

Specifications:
Air Inlet: 1/4" BSP
Average Air Consumption: 8cfm (226 l/min)
Fluid Delivery Rate: 70-110ml/min
Fluid Nozzle Size: 1.0mm
Operating Air Pressure: 43psi (3 Bar)
Weight: 0.276kg

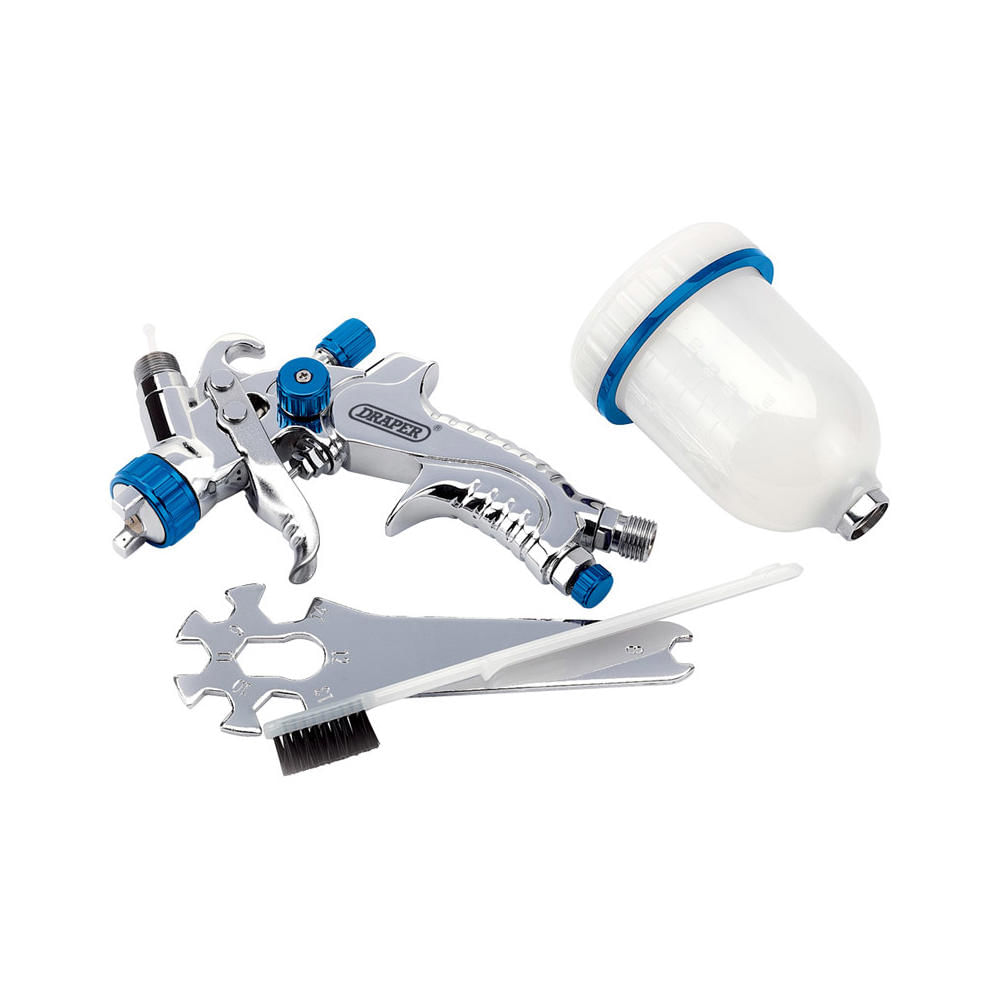

Contents:
1 x Spray Gun
1 x Cleaning brush
1 x Service spanner
