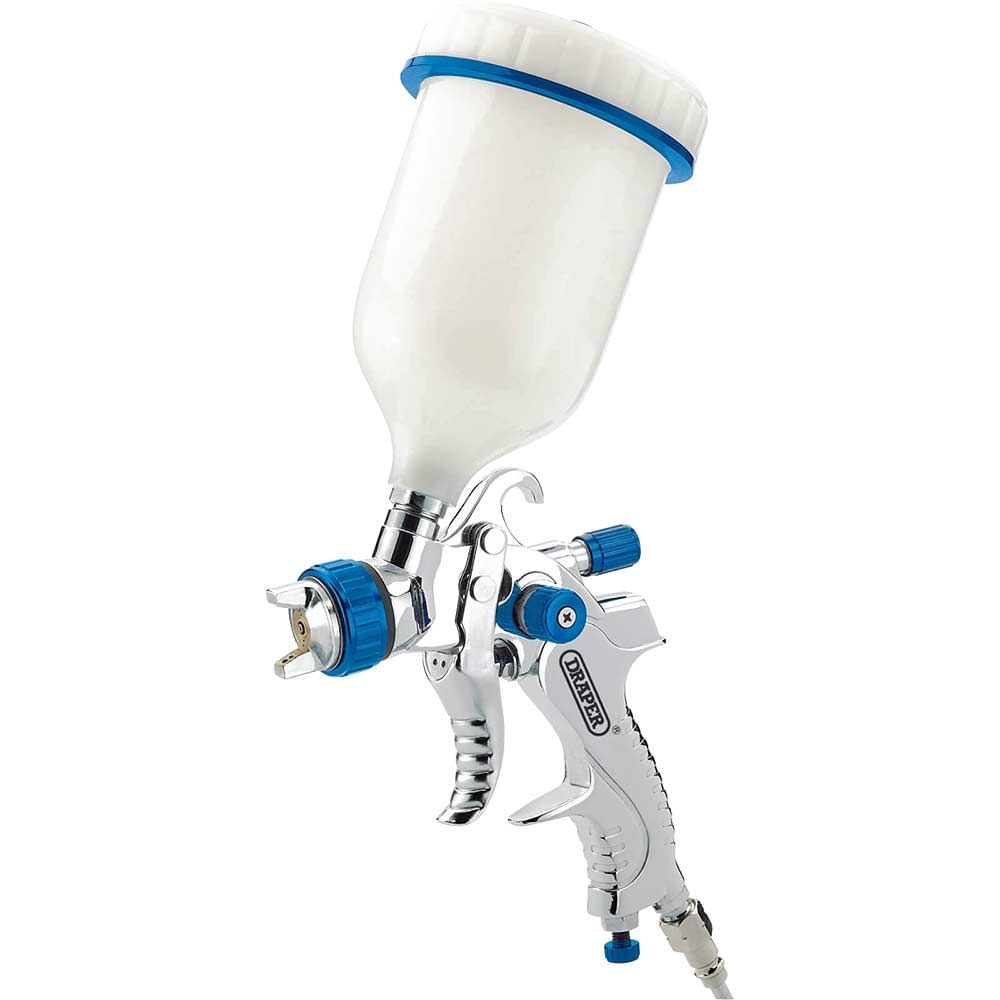

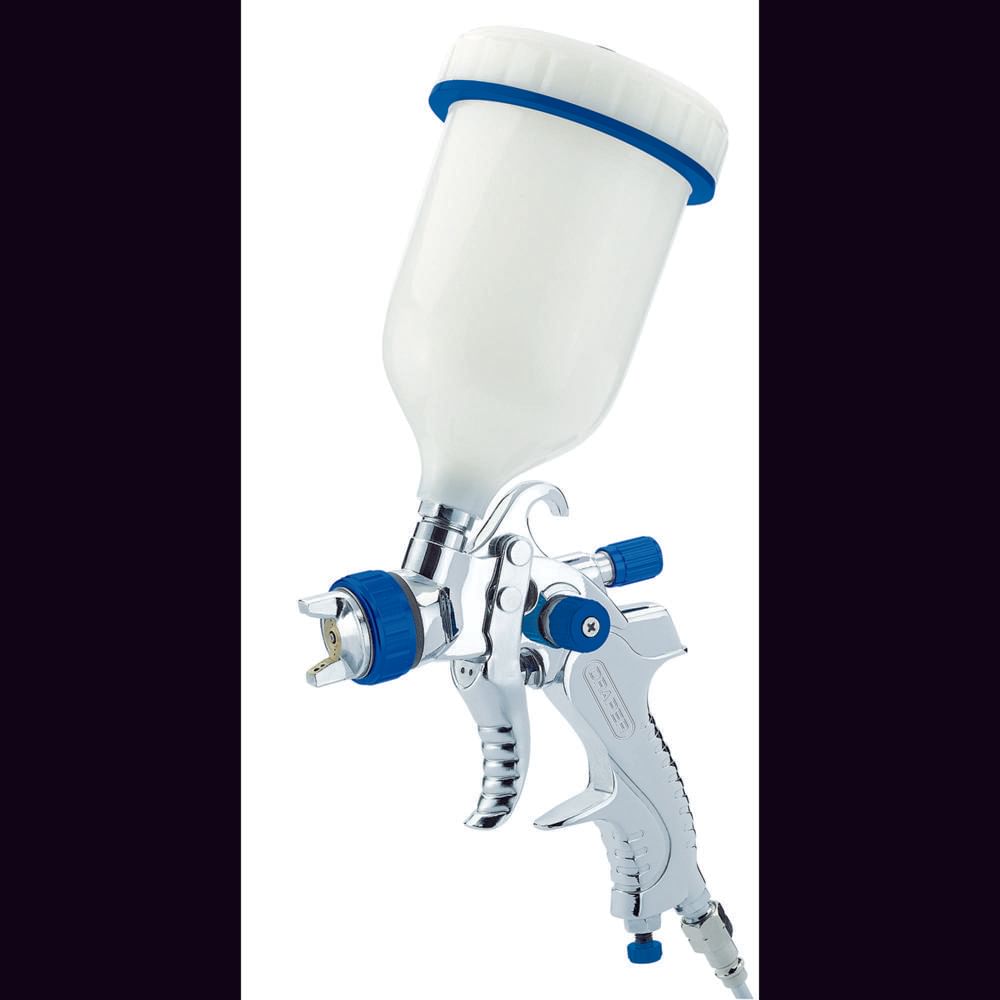

Draper GSG5-600 Gravity Feed HVLP Air Spray Gun

The Draper GSG5-600 is a gravity feed HVLP air spray gun designed for general purpose spraying applications across a wide range of professional and semi-professional projects. Built with a robust aluminium body construction, this spray gun delivers reliable performance with all paint types including modern water-based formulations.

HVLP (High Volume Low Pressure) technology ensures maximum paint transfer efficiency whilst minimising overspray and bounce-back, helping to reduce material waste and achieve a cleaner working environment. The 1.4mm fluid nozzle size makes this gun particularly well-suited to applying primers, topcoats, and general finishing work where a versatile mid-range setup is required.

The gun features variable fan pattern control and fully adjustable fluid flow, allowing operators to fine-tune the spray characteristics to suit different materials and surface types. Operating at 43psi with an average air consumption of 14.5cfm, it's compatible with most workshop compressors. The inclusion of essential maintenance accessories ensures you can keep the gun in optimal working condition, whilst spare nozzle, needle and cap sets are available separately for future servicing needs.

Features and Benefits:
• Full metal body construction for durability and longevity
• Compatible with all paint types including water-based formulations
• Maximum paint transfer efficiency reduces material waste
• Minimal bounce-back for cleaner application and working environment
• Variable fan and fully adjustable flow for precise control

Specifications:
Air Inlet: 1/4" BSP
Average Air Consumption: 14.5cfm (400 l/min)
Fluid Delivery Rate: 190-250ml/min
Fluid Nozzle Size: 1.4mm
Operating Air Pressure: 43psi (3 Bar)
Weight: 0.55kg

Contents:
1 x Spray Gun
1 x Cleaning brush
1 x Service spanner
