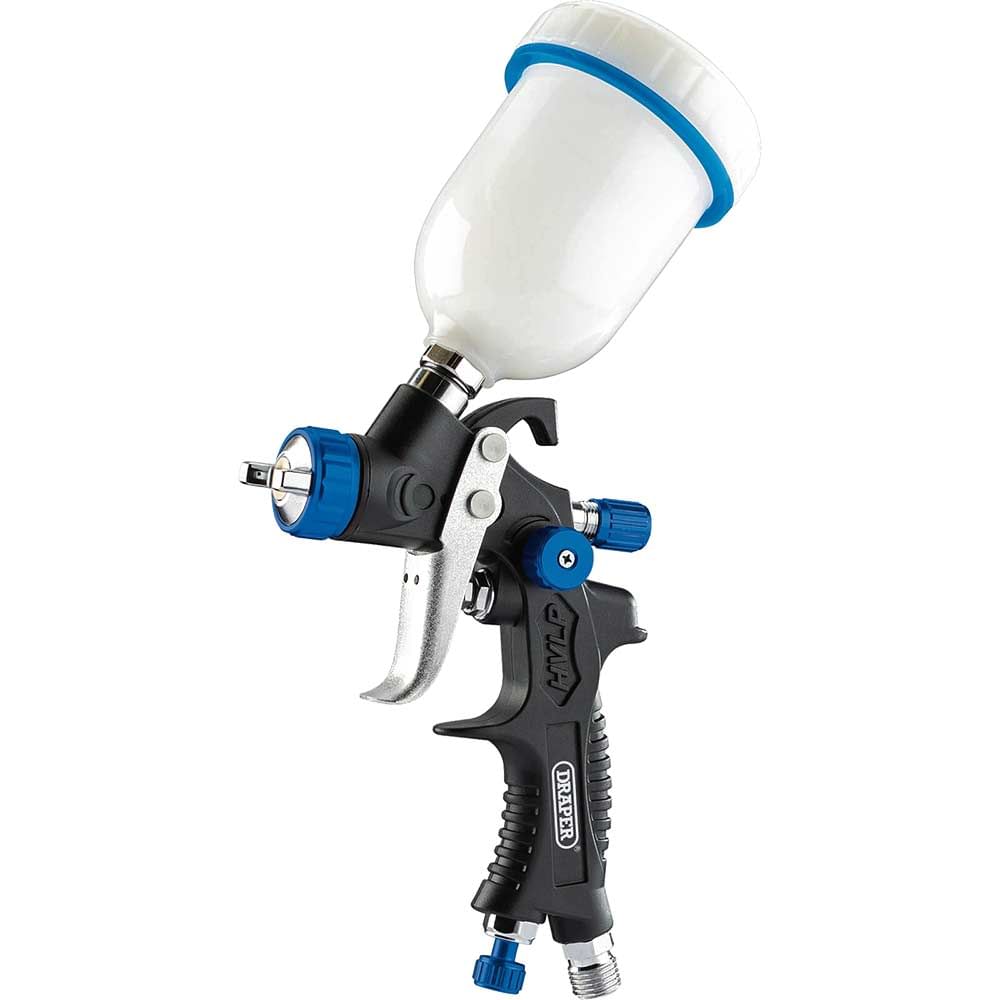

Draper GSG5-COMP-100 Gravity Feed HVLP Composite Body Air Spray Gun

The Draper GSG5-COMP-100 is a general-purpose HVLP air spray gun designed for professional finishing applications across a wide range of paint types. Featuring a lightweight composite body construction, this gravity feed spray gun delivers maximum paint transfer efficiency with minimal overspray and bounce-back, making it ideal for workshop and on-site spraying tasks.

Suitable for use with all paint types including water-based formulations, the gun offers variable fan control and fully adjustable flow settings to suit different coating requirements. The stainless steel needle and nose provide durability and corrosion resistance, ensuring consistent performance over extended use. Operating at 43psi with an average air consumption of 8cfm, this spray gun is compatible with most workshop air compressor setups.

The 1.0mm fluid nozzle size makes this spray gun particularly well-suited for general painting, automotive refinishing, and furniture spraying applications where fine to medium atomisation is required. The gun comes complete with essential accessories including a cleaning brush, service spanner, cup filter and connector, providing everything needed to get started straight away.

Features and Benefits:
• Composite body construction reduces operator fatigue during extended spraying sessions
• Compatible with all paint types including water-based formulations for maximum versatility
• Stainless steel needle and nose for long-lasting durability and corrosion resistance
• HVLP technology delivers maximum paint transfer efficiency with minimal overspray
• Variable fan control and fully adjustable flow for precise coating application

Specifications:
Air Inlet: 1/4" BSP
Average Air Consumption: 8cfm (226 l/min)
Fluid Delivery Rate: 70-110ml/min
Fluid Nozzle Size: 1.0mm
Operating Air Pressure: 43psi (2 Bar)
Weight: 1.8kg

Contents:
1 x Spray Gun
1 x Cleaning brush
1 x Service spanner
1 x Cup filter
1 x Connector
