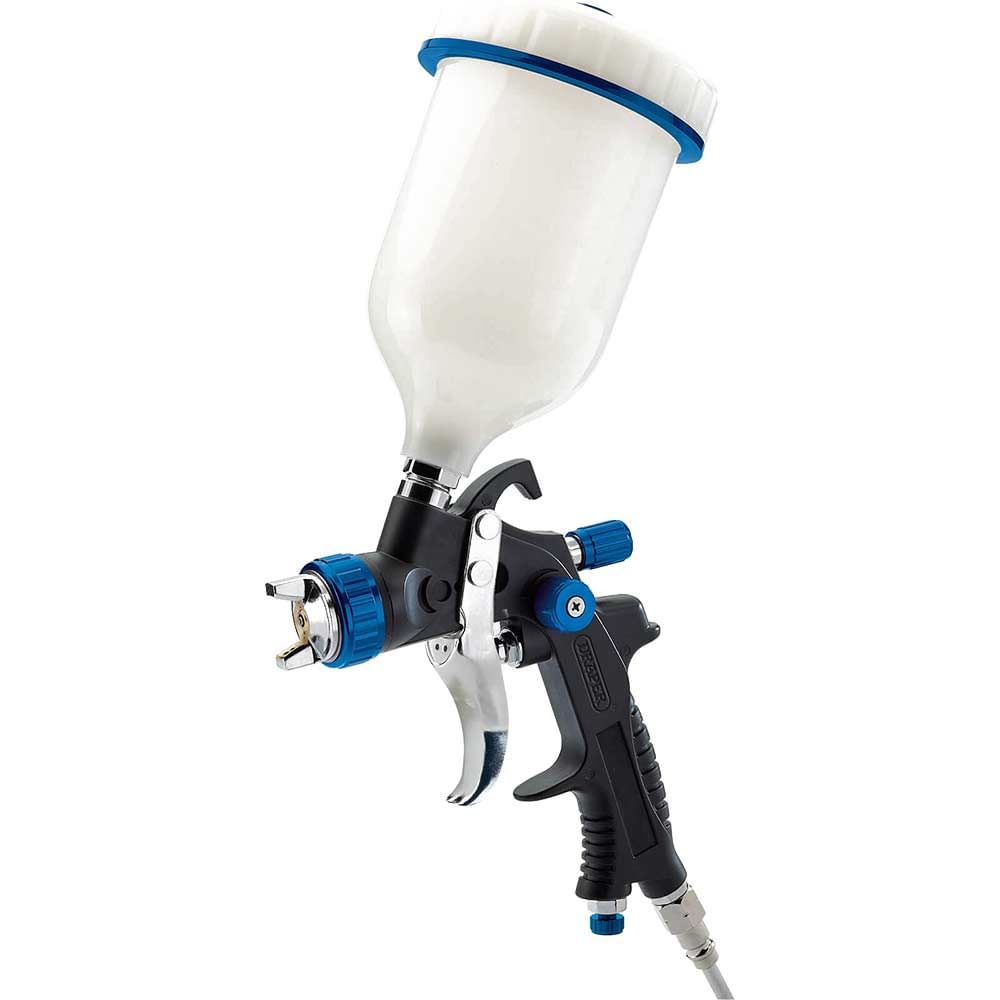

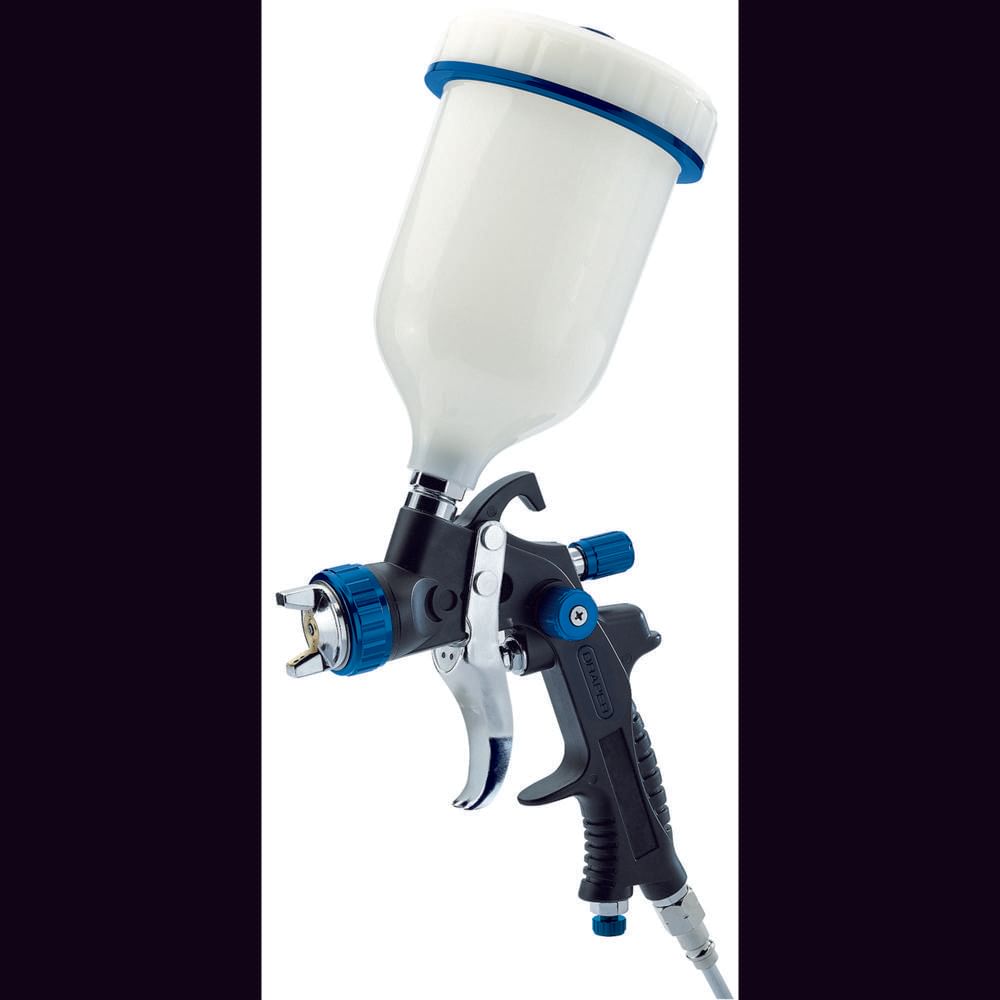

Draper GSG5-COMP-600 Gravity Feed HVLP Composite Body Air Spray Gun

The Draper GSG5-COMP-600 is a general purpose HVLP air spray gun engineered for professional finishing work across all paint types. This gravity feed spray gun features a lightweight composite body construction that reduces operator fatigue during extended use, whilst the stainless steel needle and nose ensure durability and long-term performance. The 1.4mm fluid nozzle makes it suitable for a wide range of coating applications.

Designed to deliver maximum paint transfer efficiency with minimal bounce-back, this spray gun provides excellent control for professional tradespeople and contractors. The variable fan pattern and fully adjustable flow controls allow precise customisation for different project requirements, from automotive refinishing to furniture spraying and general decorating work.

Operating at 43psi (3 Bar) with an average air consumption of 14.5cfm (400 l/min), the spray gun delivers a fluid rate of 190-250ml/min. The standard 1/4" BSP air inlet ensures compatibility with most workshop air compressor systems. Spare nozzle, needle and cap sets are available separately for ongoing maintenance and service.

Features and Benefits:
• Composite body construction for reduced weight and comfortable handling
• Compatible with all paint types including modern water-based coatings
• Stainless steel needle and nose for corrosion resistance and longevity
• HVLP technology delivers maximum paint transfer efficiency
• Minimal bounce-back reduces overspray and material waste
• Variable fan pattern and fully adjustable flow for precise control

Specifications:
Air Inlet: 1/4" BSP
Average Air Consumption: 14.5cfm (400 l/min)
Fluid Delivery Rate: 190-250ml/min
Fluid Nozzle Size: 1.4mm
Operating Air Pressure: 43psi (3 Bar)
Weight: 0.375kg

Contents:
1 x Spray Gun
1 x Cleaning brush
1 x Service spanner
