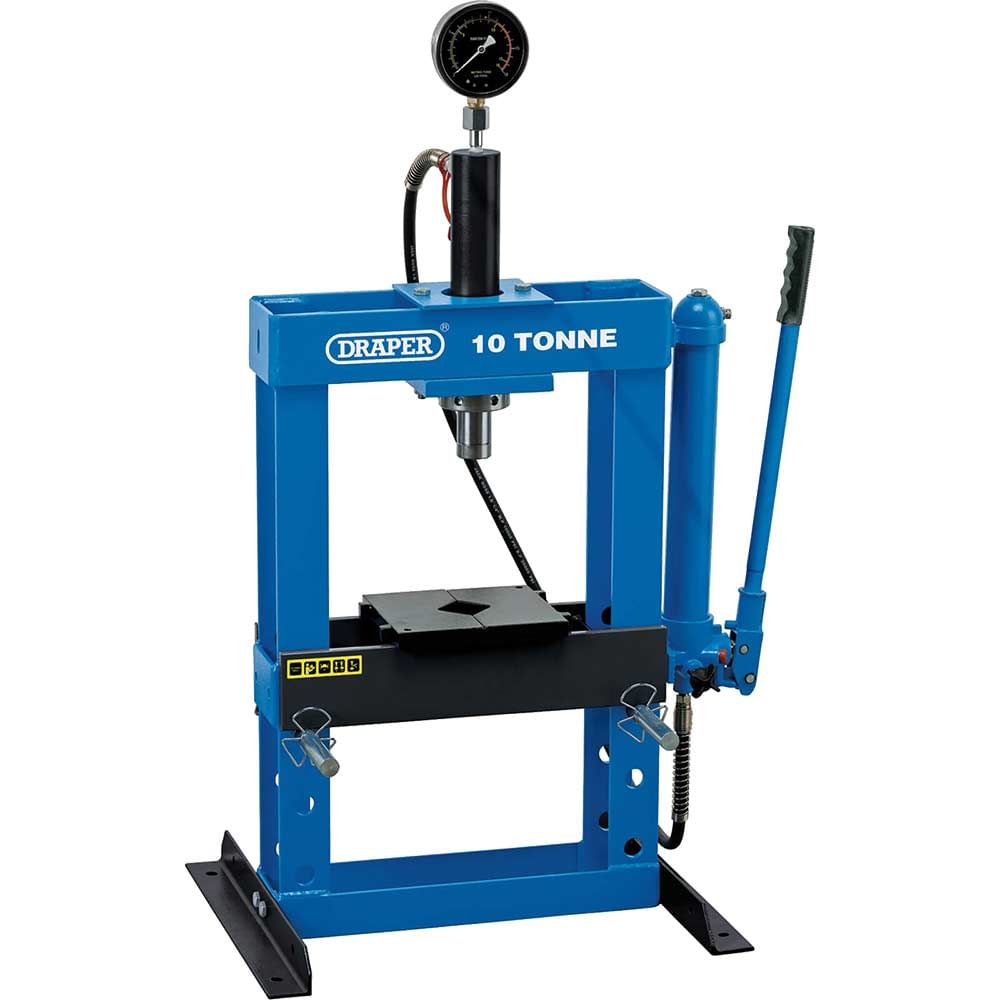

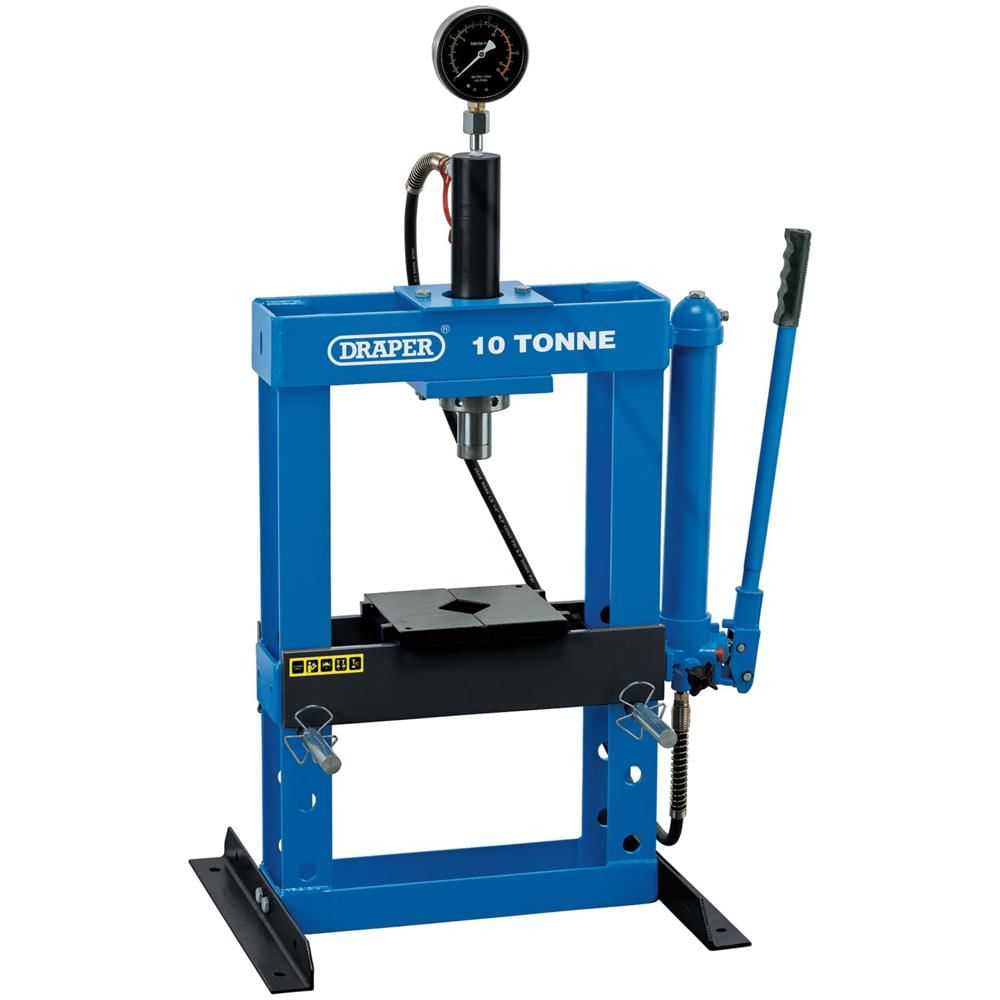

Draper HBP/10D Hydraulic Bench Press

The Draper HBP/10D is a robust 10 tonne hydraulic bench press designed for pressing, straightening and forming operations in professional workshops and garages. This heavy-duty press features a sliding ram mechanism and four adjustable table heights (110mm, 195mm, 280mm and 365mm), providing the flexibility to accommodate different workpiece sizes and pressing applications.

Built for accuracy and reliability, the press incorporates a glycerine-filled pressure gauge which delivers precise force readings whilst extending service life. The detachable hand pump offers flexible positioning - it can be secured directly to the press frame or mounted to your workbench for convenient operation. Anti-kink coils fitted to both ends of the flexible hydraulic hose provide enhanced protection against wear and damage during regular use.

Safety is prioritised with an integrated safety valve that prevents overloading beyond the rated capacity. The press is supplied complete with two flat V-shaped pressing blocks for secure workpiece positioning and arrives fully tested and certified for safe workshop operation. Ideal for bearing installation, bush removal, shaft straightening and general pressing tasks across automotive, engineering and fabrication environments.

Features and Benefits:
• Sliding ram with 175mm stroke for extended pressing range
• Four adjustable table heights between 110-365mm to suit different workpiece sizes
• Glycerine-filled gauge for increased accuracy and prolonged service life
• Detachable hand pump that can be secured to the press or bench
• Anti-kink coil fitted to each end of the flexible hose for increased protection
• Safety valve prevents overloading for safe operation
• Supplied with two flat V-shaped blocks for versatile workpiece holding

Specifications:
Capacity: 10 Tonne
Gauge range: 0-16 Tonne
Gauge diameter: 105mm
Ram stroke: 175mm
Ram diameter: 40mm
Ram height to table: 110-365mm
Working table width: 335mm
Overall height: 1,058mm
Weight: 55kg

Contents:
1 x Bench Press, 10 Tonne
