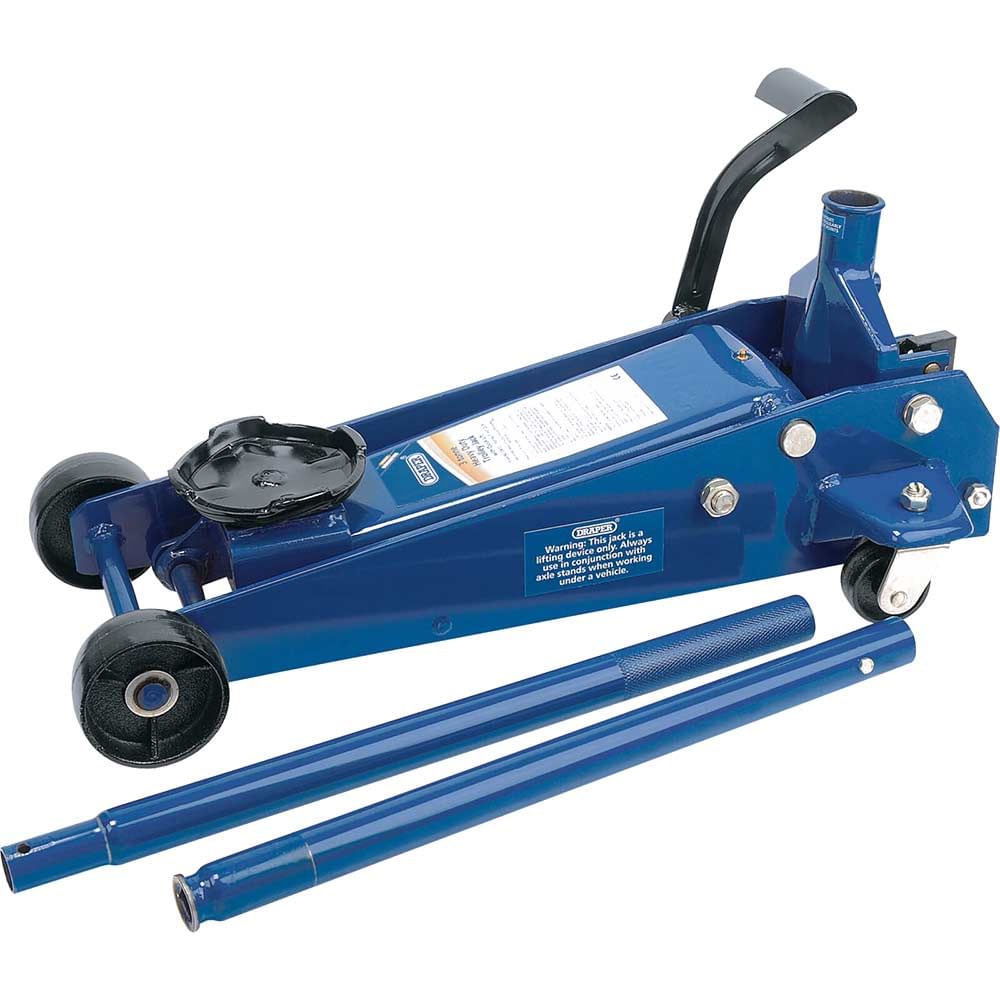

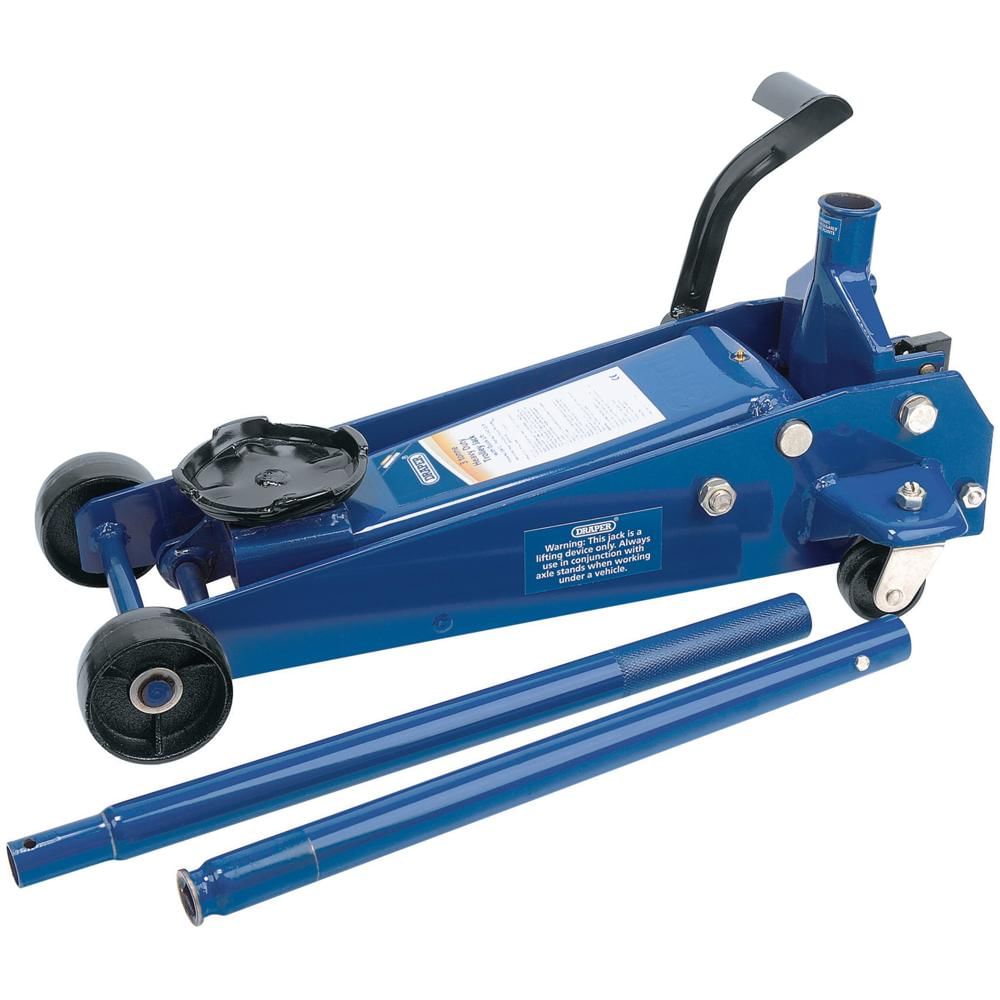

Draper Heavy Duty Garage Trolley Jack

The Draper Heavy Duty Garage Trolley Jack is a robust 3-tonne hydraulic lifting solution designed for professional automotive workshops and serious home mechanics. Built to meet EN1494 standards, this trolley jack combines durability with practical features that streamline vehicle maintenance and repair work.

The heavy-duty chassis provides a stable platform whilst large steel castors ensure smooth positioning and manoeuvrability around the workshop floor. A quick-lift foot pedal allows rapid raising of the saddle to reach the vehicle jacking point efficiently, reducing the time and effort required during setup. The extra-large 130mm diameter saddle aids accurate positioning under vehicle lifting points, whilst an integrated safety valve prevents dangerous overloading beyond the 3,000kg capacity.

Practical engineering details enhance usability in demanding workshop environments. The cog-type release mechanism delivers controlled, gradual lowering for safe operation, and the two-piece handle extends to 1,000mm for comfortable leverage. With a lifting range from 135mm to 505mm maximum height and a chassis measuring 720mm, this trolley jack is ideal for servicing cars, vans, and light commercial vehicles in garages, workshops, and mobile mechanic operations.

Features and Benefits:
• Heavy-duty chassis with large steel castors for improved positioning and manoeuvrability
• Quick-lift foot pedal rapidly raises saddle to jacking point
• Extra-large 130mm saddle diameter aids accurate positioning
• Safety valve prevents overloading beyond 3-tonne capacity
• Cog-type release mechanism for controlled lowering
• Two-piece handle for convenient storage
• Manufactured to EN1494 standard

Specifications:
Capacity: 3 Tonne (3,000kg)
Chassis Dimensions: 720mm
Handle Length: 1,000mm
Max Height: 505mm
Min Height: 135mm
Nett Weight: 36.7kg
Saddle Diameter: 130mm

Contents:
1 x Quick Lift Trolley Jack, 3 Tonne
