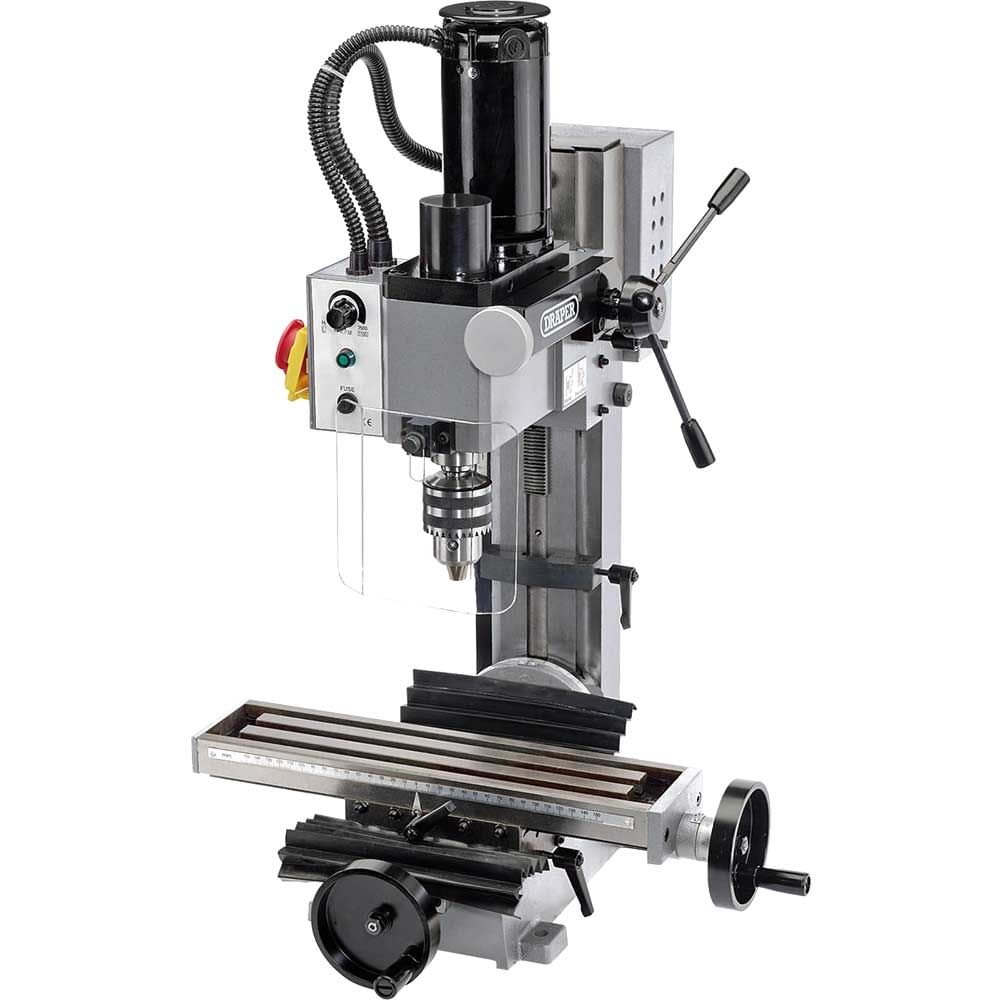

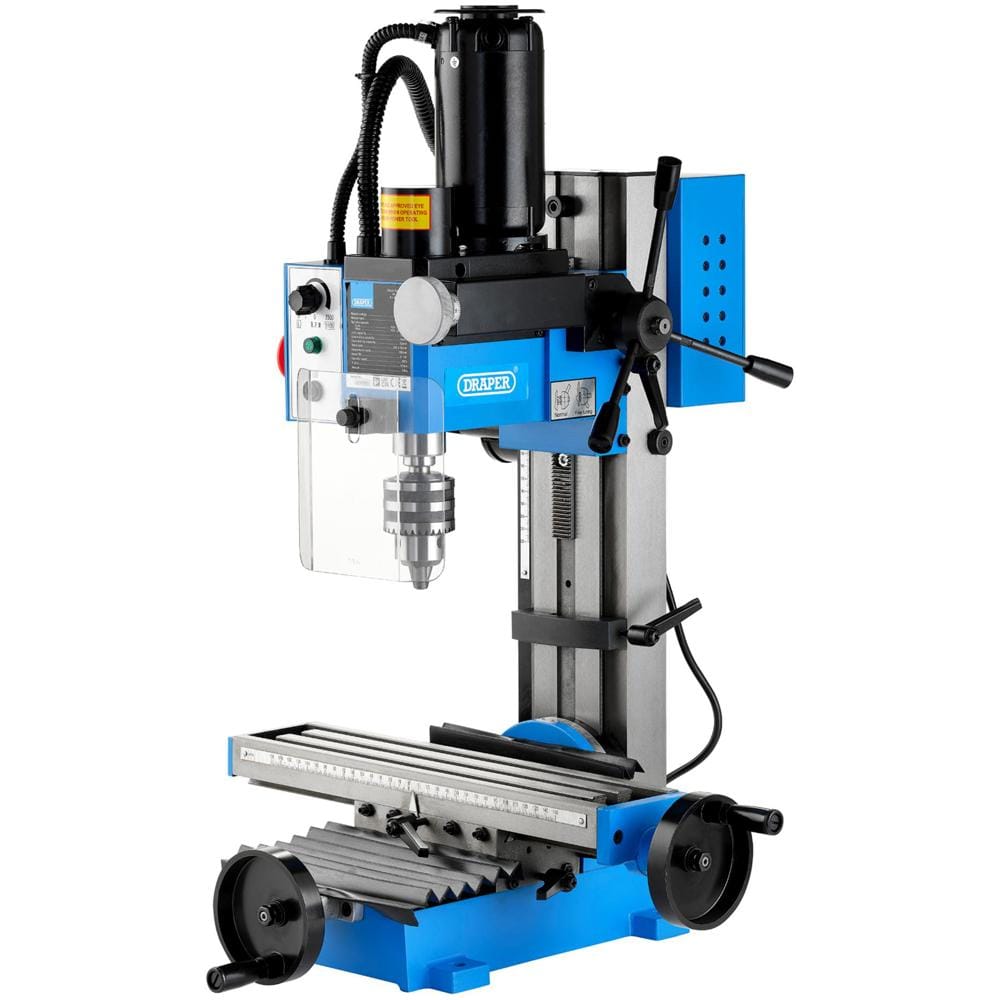

Draper MILL-170 Variable Speed Bench Mini Milling and Drilling Machine

The Draper MILL-170 is a versatile bench-mounting mini milling and drilling machine designed for precision metalworking and fabrication tasks in workshops and small manufacturing environments. This compact yet capable machine handles most materials with ease, making it ideal for model engineers, toolmakers, and general engineering professionals who need accurate milling and drilling capabilities without the footprint of a full-sized machine.

The machine features a robust working table with T-slots for secure workpiece clamping, complemented by metric graduated compound scales for precise positioning. The column tilts from 0-45° from vertical, enabling angled drilling and milling operations that would be difficult or impossible on standard bench drills. Variable speed control across two ranges (100-1100rpm and 100-2500rpm) provides the flexibility to work with different materials and cutting tools effectively.

Safety and convenience are prioritised with a no-volt switch that prevents accidental start-up following power interruptions, while the approved three-pin cable and plug ensure compliance with UK electrical standards. The MT3 spindle taper accepts standard tooling, and the generous 390 x 92mm table provides stable support for small to medium workpieces.

Features and Benefits:
• Can be bench mounted for permanent or temporary workshop installation
• Handles most materials including steel, aluminium, and plastics
• Working table with T-slots enables secure workpiece clamping
• Metric graduated compound scales for precise positioning
• Column tilts from 0-45° for angled drilling and milling operations
• No-volt switch prevents accidental start-up
• Approved 3-pin plug and cable for UK electrical compliance

Specifications:
Cross Axis: 100mm
Drilling Capacity: 13mm
End Milling Capacity: 16mm
Face Milling Capacity: 30mm
Headstock Travel: 180mm
High Spindle Speed: 100-2500r/min
Longitudinal Axis: 220mm
Low Spindle Speed: 100-1100r/min
Spindle Taper: MT3
Spindle Tilt Axis: ±0-45°
Table Size: 390 x 92mm
Throat Depth: 170mm
T Slot: 12mm
Weight: 60kg

Contents:
1 x Variable Speed Mini Milling/Drilling Machine, 350W
