Draper PG252F Petrol Generator 2.2Kva

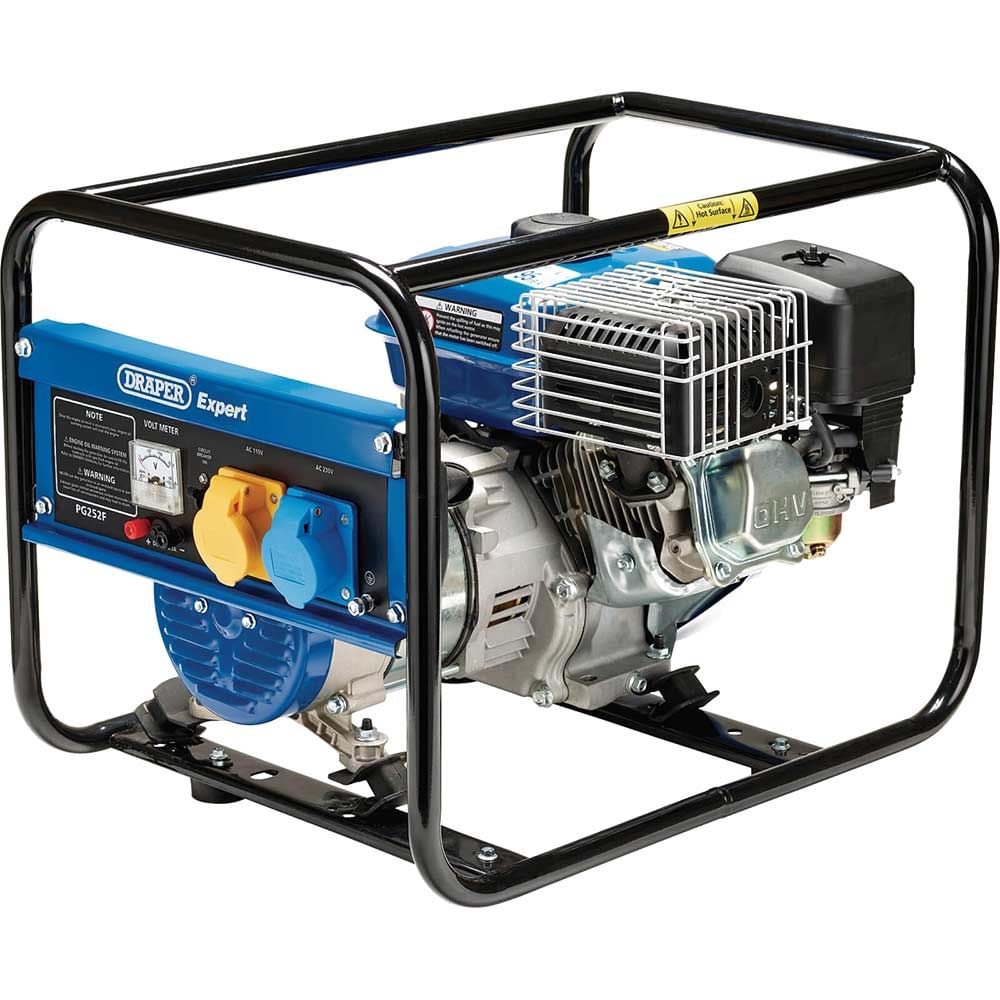

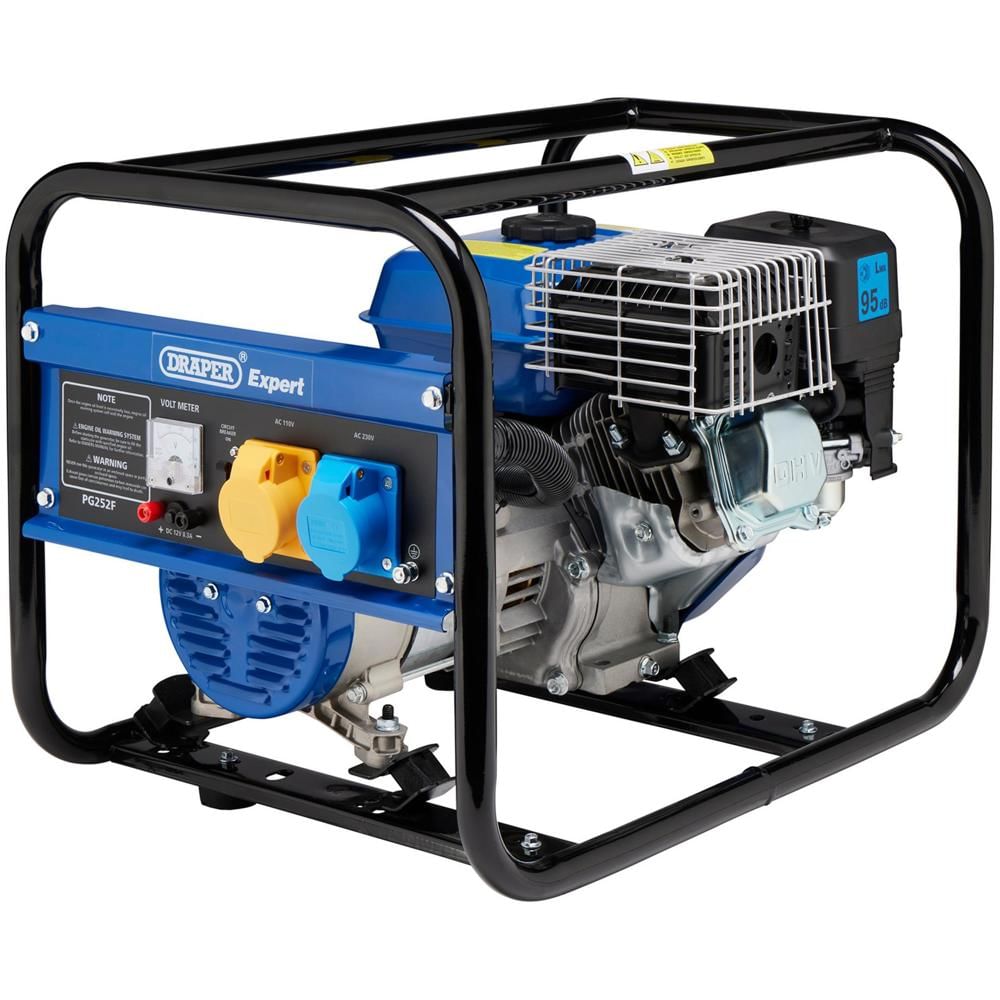

The Draper PG252F is a portable petrol generator delivering 2.2kVA rated output, designed for powering tools and equipment on site or providing backup power where mains supply is unavailable. Built around a robust 196cc four-stroke OHV engine producing 6.5HP, this open frame generator combines reliable performance with practical dual voltage capability.
The heavy duty steel tubular frame provides excellent durability whilst oil and fuel resistant anti-vibration mounts reduce operational vibration for smoother running. Dual voltage output accommodates both 230V and 110V equipment through dedicated 16A sockets, with an additional 12V DC output ideal for battery charging applications. The engine features low oil shutdown protection to prevent damage during operation.
With a 3.6 litre fuel tank, the generator provides approximately 4.2 hours of continuous runtime at 75% load, making it suitable for extended work periods between refuelling. The recoil start system ensures straightforward operation, whilst compatibility with both E5 and E10 fuel provides flexibility at the pump. Supplied complete with spark plug spanner, screwdriver, combination spanners and 12V charging lead for immediate use.
Features and Benefits:
• Powered by 4-stroke engine
• Easy pull recoil start
• Steel tubular frame
• Dual voltage output 230V/110V
• 12V DC output
• Fitted with oil and fuel resistant anti-vibration mounts
• Engine low oil shutdown
• Supplied with 12V charging lead and basic toolkit
Specifications:
Maximum AC output: 2,200W (2.75kVA)
Rated AC output: 2,000W (2.2kVA)
Sockets: 1 x 110V 16A, 1 x 230V 16A, 1 x 12V DC
Engine type: Forced air cooled four cycle OHV
Engine capacity: 196cc Petrol
Engine output: 6.5HP
Fuel tank: 3.6L
Continuous run time: 4.2 hours at 75% load
Noise: 95dB(A) at 4m
Oil capacity: 0.6L
Oil: SAE 10W-40 (available separately)
Dimensions: (L) 640 x (W) 450 x (H) 470mm
Weight (net): 35.5kg
Contents:
1 x Spark plug spanner
1 x Screwdriver
1 x 12V Charging lead
4 x Spanners
Petrol Engines
It is important to read all instructions regarding petrol products. 4 Stroke engines require oil and some machines are supplied dry (No oil to start with). Running a 4 stroke petrol machine without oil will result in the engine seizing and is not covered under warranty.
2 Stroke engines will need to have a mix of oil in the petrol this is normally 1 part oil to 50 parts petrol but not always, again please read the instructions supplied with your machine. Petrol engines do require more maintenance than electric engines but if reguarly maintained they will normally give many years of use.
