Draper Pneumatic Hydraulic Motorcycle ATV Small Garden Machinery Lift

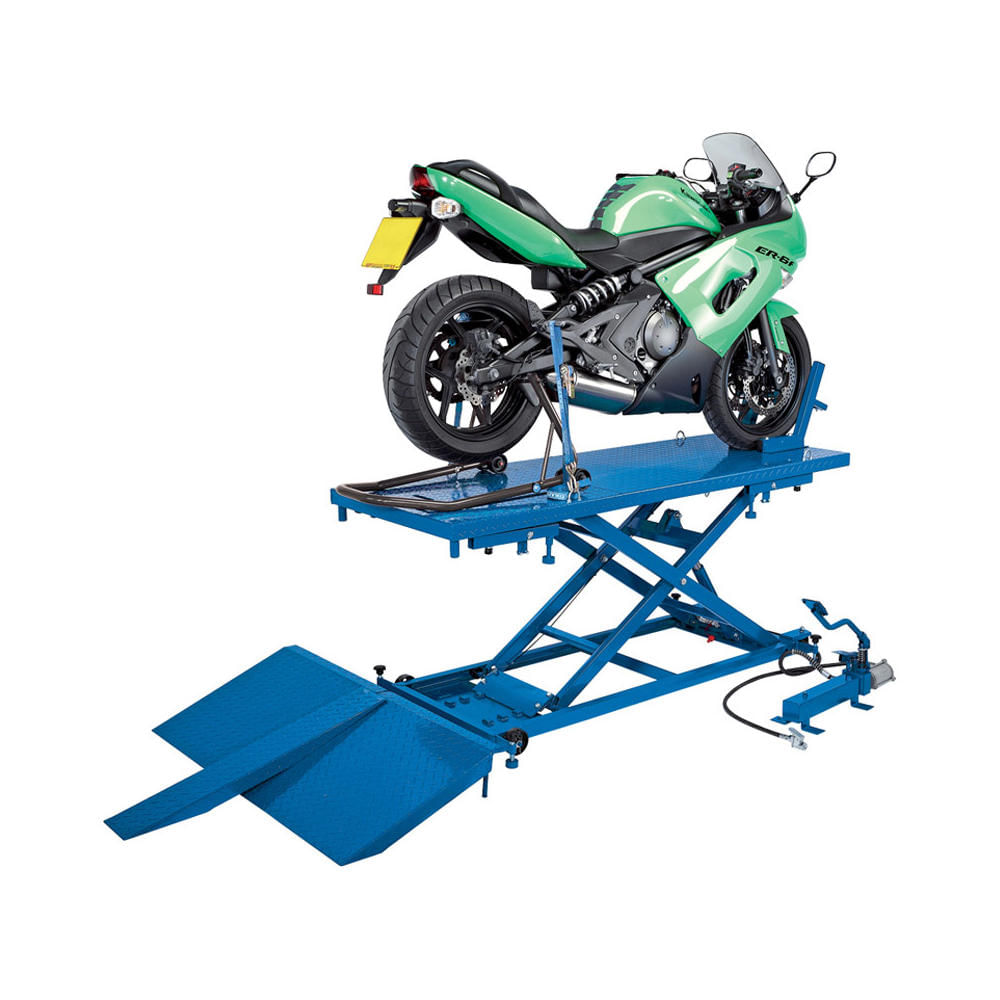

The Draper Pneumatic Hydraulic Motorcycle ATV Small Garden Machinery Lift is a professional-grade workshop lift designed for safely raising motorcycles, all terrain vehicles, mini tractors and similar-sized machinery. This versatile lift combines pneumatic and hydraulic operation to provide smooth, controlled lifting up to 680kg capacity, making it an essential piece of equipment for motorcycle workshops, garden machinery servicing facilities and multi-purpose trade garages.

Constructed from heavy-duty all-steel materials, this lift features a dual hydraulic pump system operated by foot pedal, complemented by a pneumatic pump-up system with integrated controller and ram assembly. The table surface incorporates stippled texturing to prevent slipping during loading operations, whilst a safety table lock device provides protection against accidental lowering. Multiple working height stops at 550mm, 720mm and 840mm allow positioning at convenient working levels throughout the 200-885mm lifting range.

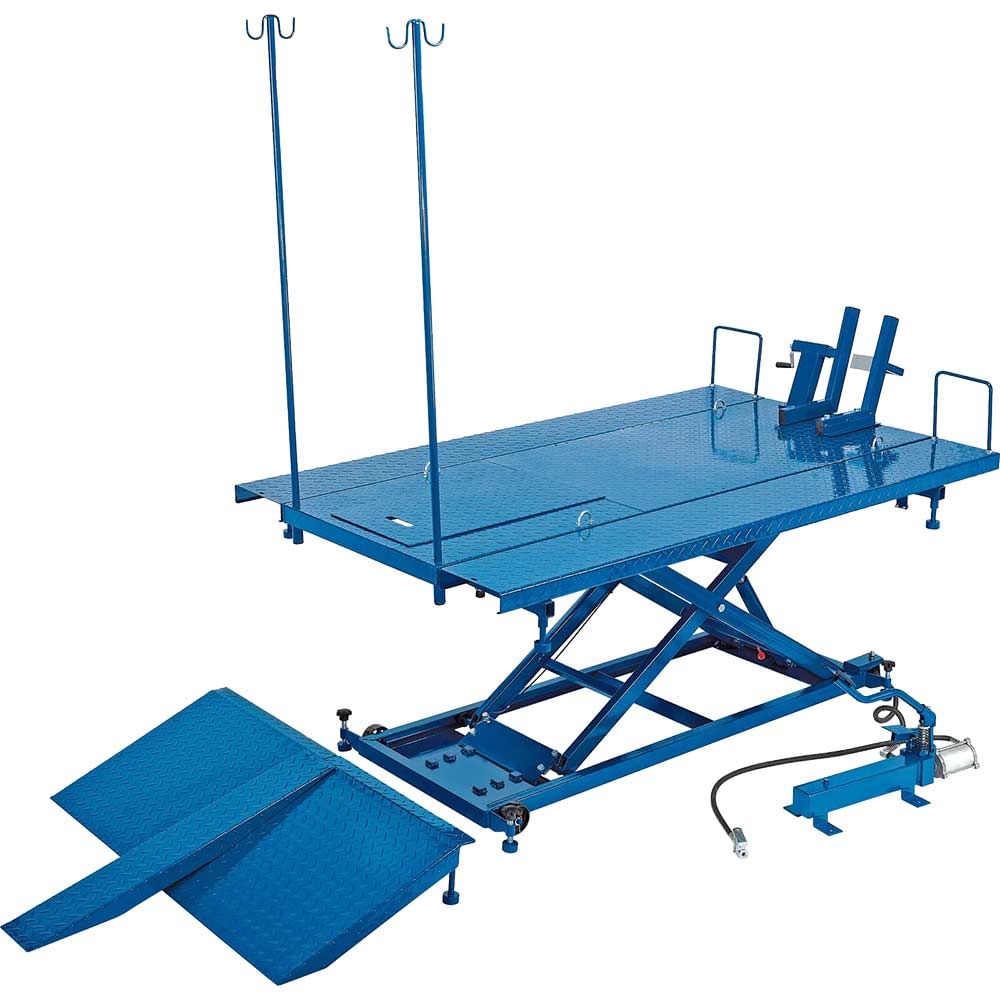

The lift's adaptable design makes it ideal for diverse workshop applications. Additional side platforms are supplied to extend the table width from 1950 x 680mm for motorcycle use to 1950 x 1220mm when working with ATVs and garden machinery. A removable front wheel clamp and rear panel (600 x 250mm) facilitate rear wheel changes on motorcycles, whilst the supplied loading ramp (850 x 150mm) aids safe vehicle positioning. Transport wheels fitted to the base assembly enable workshop repositioning, with lock-down mechanisms securing the lift during operation.

Features and Benefits:
• Manufactured to EN1494-2000 standard for quality assurance
• Dual pneumatic and hydraulic operation for efficient, controlled lifting
• Expandable table configuration accommodates motorcycles, ATVs and small garden machinery
• Safety lock device prevents accidental table lowering during maintenance
• Stippled table surface provides enhanced grip when loading vehicles
• Transport wheels with lock-down facility for secure positioning

Specifications:
Air Inlet: 1/4"BSP
Capacity: 680kg (1500lbs)
Closed Height: 200mm
Lifting Range: 200-885mm
Max Height: 885mm
Operating Air Pressure: 90psi (6.2bar)
Rear Wheel Removal Panel (L x W): 600 x 250mm
Motorcycle Loading Ramp (L X W): 850 x 150mm
Table As For Atv Use (L X W): 1950 x 1220mm
Table As Motorcycle Lift (L X W): 1950 x 680mm
Working Height Stops: 550; 720; 840mm
Weight: 260kg

Contents:
1 x Pneumatic/Hydraulic Motorcycle/ATV Small Garden Machinery Lift, 680kg
