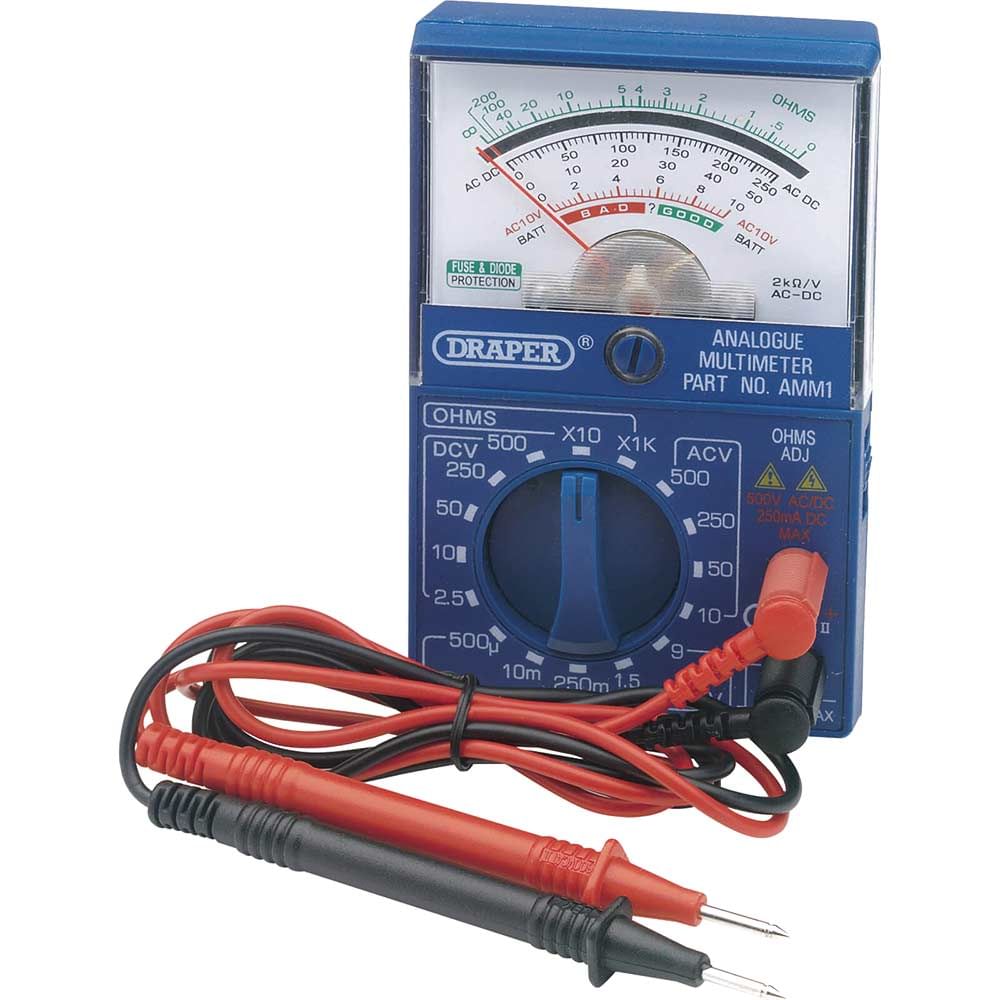

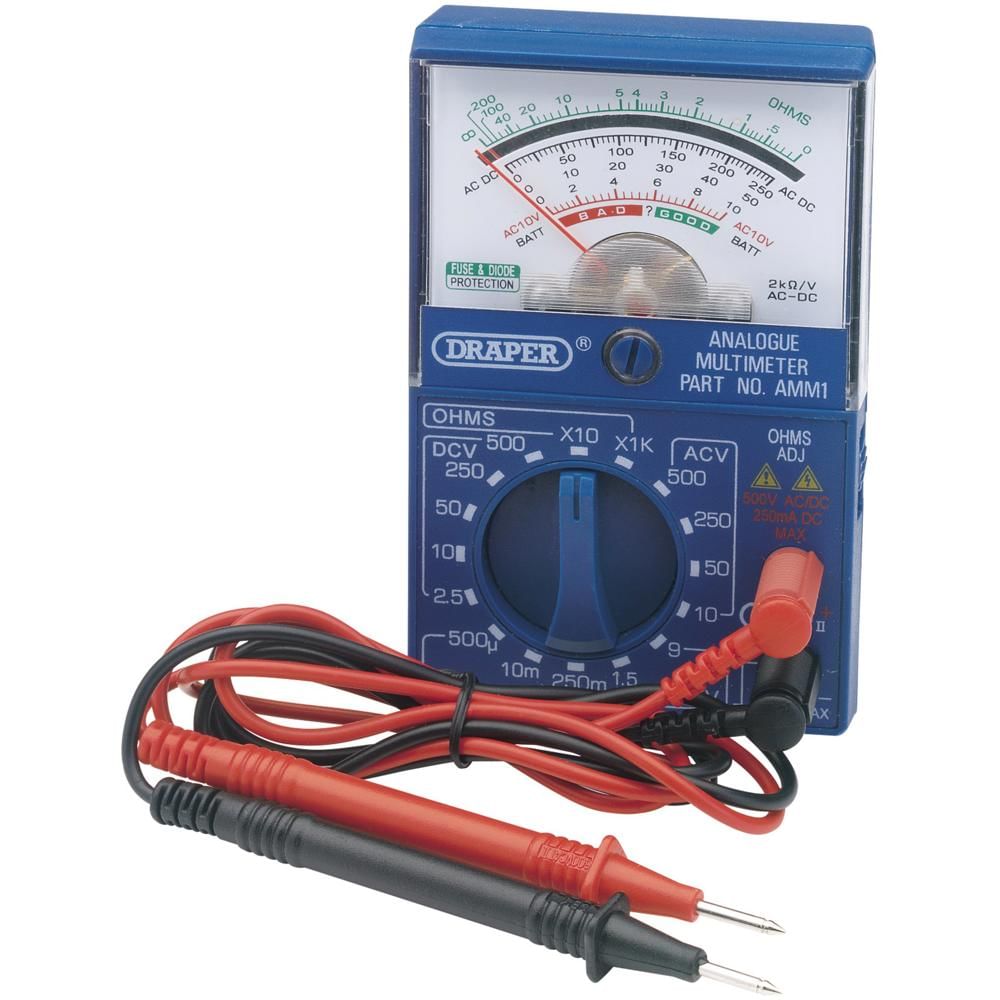

Draper Pocket Analogue Multimeter

The Draper Pocket Analogue Multimeter is a compact testing instrument designed for electrical diagnostics and automotive fault-finding. This 16-position analogue meter combines essential voltage, current and resistance measurement capabilities in a portable format that slips easily into a toolbox or pocket.

Measuring just 64 x 100 x 35mm and weighing approximately 100g, this pocket-sized multimeter delivers practical functionality for electricians, automotive technicians and maintenance engineers who need reliable basic testing on site. The analogue display provides clear readings without requiring a digital power source, with the meter operating from a single AA battery.

The multimeter measures AC voltage across four ranges from 10V to 500V, whilst DC voltage testing spans five ranges from 2.5V to 500V. DC current measurement covers four ranges from 550µA through to 10A, making it suitable for circuit testing and electrical troubleshooting. Resistance measurement is available at 10O and 1kO ranges for continuity checks and component testing.

Features and Benefits:
• Fuse and diode protected for safe operation
• Compact pocket size ideal for mobile tradespeople
• Analogue display requires no screen power
• Supplied complete with test probes and leads

Specifications:
AC Current: N/A
AC Voltage: 10V/50V/250V/500V
Automatic Power Off: N/A
Battery: 1 x AA
Capacitance: N/A
DC Current: 550uA/10mA/250mA/10A
DC Voltage: 2.5V/10V/50V/250V/500V
Diode on/off Test: N/A
Dimensions: 64mm x 35mm x 102mm
Duty Ratio: N/A
Dwell: N/A
Frequency: N/A
Resistance (Ohms): 10O/1kO
Size: 64 x 100 x 35mm
Symbol Unit Data Hold: N/A
TACH: N/A
Temperature Range: N/A
Weight: 100g (approx.)

Contents:
1 x Pocket Analogue Multimeter
2 x Test probes & leads
