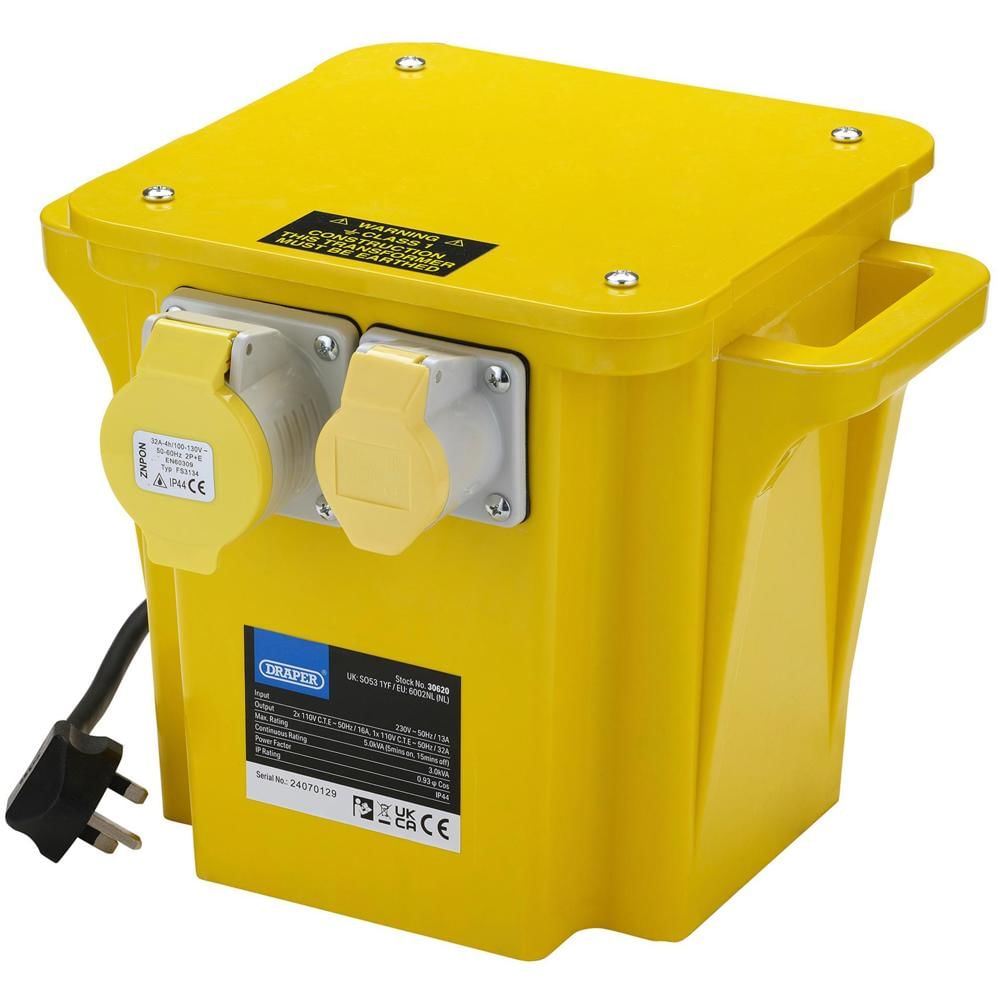

Draper Portable Site Transformer 240v to 110v 5kVA

The Draper Portable Site Transformer is a robust 5kVA power conversion unit designed for safely operating 110V tools and equipment from a 230V mains supply. With centre tapped earth technology, this transformer delivers enhanced electrical safety on construction sites and workshop environments, making it an essential piece of equipment for contractors and electricians working with 110V power tools.

Built to withstand demanding site conditions, this transformer features a tough GRP (glass reinforced plastic) casing with an IP44 rating, providing protection against dust ingress and water splashes. The unit is Class I insulated and incorporates thermostatic overload protection to prevent damage from excessive load or continuous high-demand operation, automatically shutting down if safe operating temperatures are exceeded.

The transformer offers versatile socket configurations with two 16A 110V outlets and one 32A 110V outlet, all IP44 rated for site use. It's rated for intermittent operation of power tools up to 3,000vA, making it suitable for running angle grinders, drills, and saws, whilst supporting continuous operation of site lighting up to the full 5,000vA capacity. This dual capability makes it ideal for both active tool operation during the day and maintaining site illumination throughout work periods.

Features and Benefits:
• Centre tapped earth 110V output for enhanced electrical safety on site
• Tough GRP casing with IP44 rating protects against dust and water ingress
• Thermostatic overload protection prevents damage from excessive loading
• Multiple socket options: 2 x 16A and 1 x 32A 110V outlets
• Dual capacity rating for intermittent tool use and continuous lighting operation
• Class I insulation meets electrical safety standards

Specifications:
Input voltage: 230V AC
Input frequency: 50Hz
Input amperage: 13A
Output voltage: 110V AC
Output amperage: 16A/32A
Max rated output: 3,000vA (intermittent) 5,000vA (continous)
Insulation class: Class I
Output sockets: 2 x 16A/110V, 1 x 32A/110V
IP rating: IP44
Power cord length: 2m
Weight: 29kg

Contents:
1 x 110V Portable Transformer, 5.0kVA
