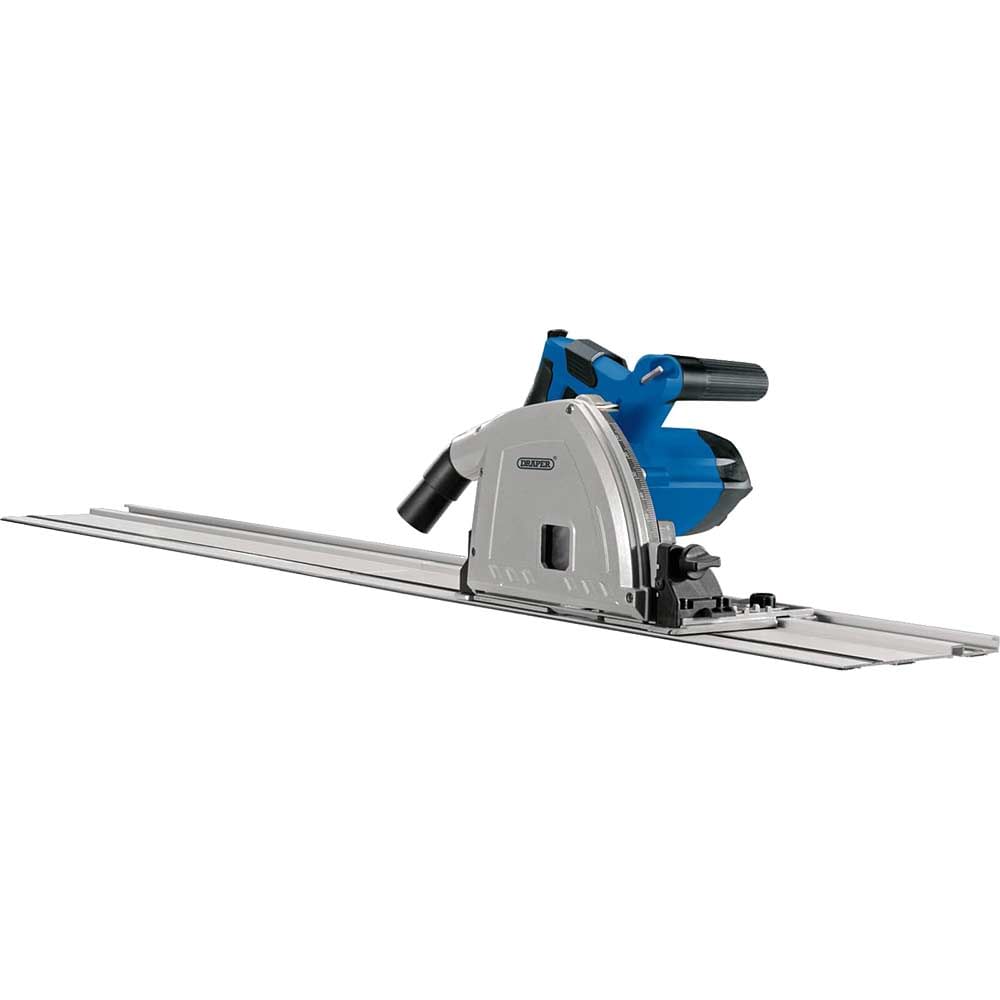

Draper PS1200D Plunge Saw and Guide Rails

The Draper PS1200D is a 1200W plunge saw supplied with guide rails, designed for precise cutting applications in joinery, kitchen fitting and general carpentry work. This versatile saw delivers accurate straight cuts with maximum cutting depths of 55mm at 90 degrees and 42mm at 45 degrees, making it suitable for cutting sheet materials, worktops and solid timber.

The bevel cutting base adjusts from 0 to 45 degrees, providing flexibility for angled cuts required in trim work and cabinet installation. Two 700mm guide rails with anti-slip grips are included, allowing for accurate guided cuts up to 1.4 metres in length when joined together. The dust extraction fitting helps maintain a cleaner working environment when connected to a suitable vacuum extractor.

Safety and convenience features include an electronic brake for rapid blade stopping, spindle lock for straightforward blade changes, and a 2m cable fitted with a BS plug for UK use. The saw is supplied with a 24-tooth blade suitable for general cutting applications across various materials.

Features and Benefits:
• 2 x 700mm guide rails with anti-slip grips for accurate straight cutting
• Max cutting depth 55mm at 90º and 42mm at 45º
• 0-45 degree bevel cutting base for angled cuts
• Dust extraction fitting for cleaner operation
• Electronic brake for enhanced safety
• Spindle lock for easy blade changes
• Supplied with 24T blade and 2m cable with BS plug

Specifications:
98041: 1 x 1.4M rail
98199: 2 x 0.7M rails
Blade Diameter: 165mm
Bore: 20mm
No Load Speed: 0-5200rpm
Supplied In Case: No
Voltage: 230V
Wattage: 1200W
Weight: 5.8kg

Contents:
1 x Plunge Saw with Rail, 165mm, 1200W
