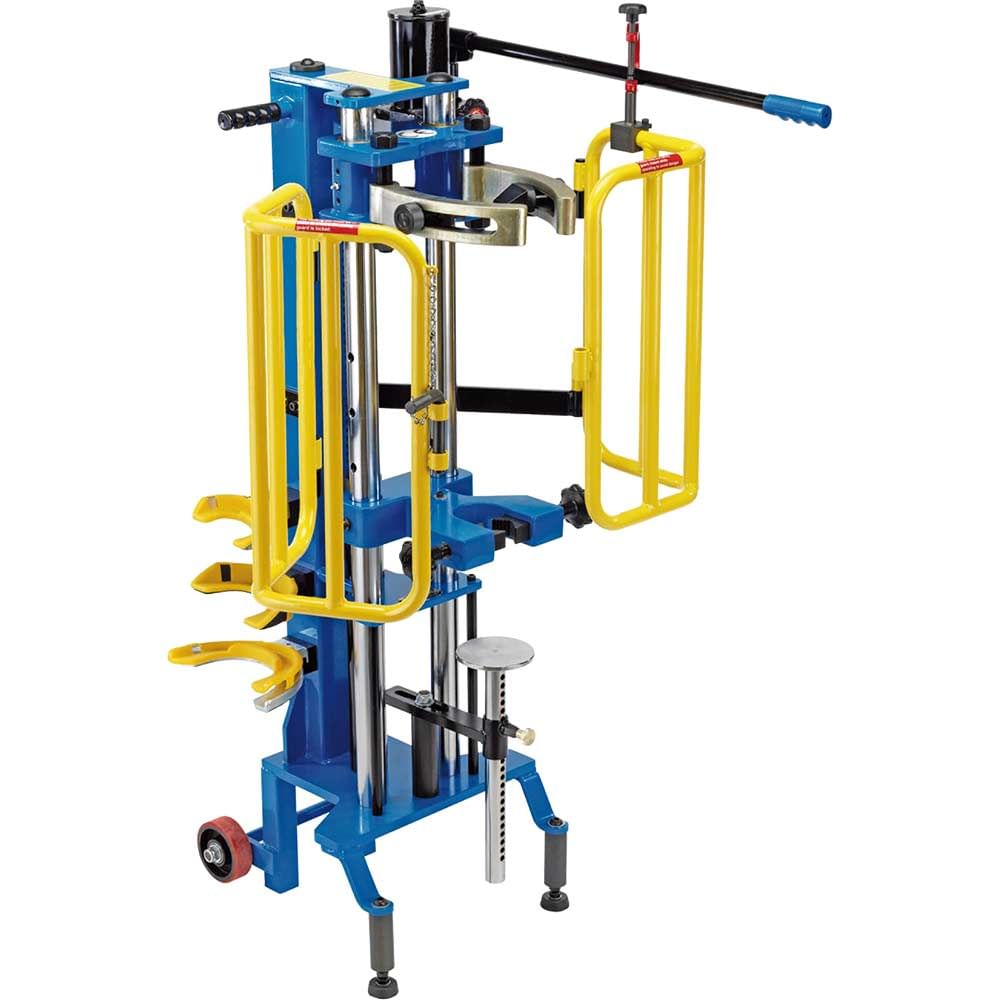

Draper SC100 Hydraulic Spring Compressor

The Draper SC100 is a professional-grade hydraulic spring compressor engineered for safe and efficient suspension work in commercial workshop environments. With a powerful 5000kg hydraulic cylinder and heavy-duty all-steel construction, this machine tackles even the most challenging suspension strut jobs with confidence.

Designed to handle a comprehensive range of spring configurations, the SC100 accommodates linear springs, progressive springs, side load springs (banana springs), and Mini block springs. The full-size safety cage provides essential protection during operation, whilst the high-quality clamps and yokes ensure secure gripping across multiple spring diameters. Independent top arms offer both vertical and horizontal adjustment, allowing precise positioning for different suspension assemblies.

A standout feature is the integrated strut leg vice, which enables clamping of strut legs rather than spring jaws. This proves invaluable when working with awkward Mercedes struts, including C-Class W203, W204, and W205 models, E-Class W207/C207, and ML 163 variants, plus difficult VW Touareg struts—all without purchasing expensive additional adaptors. The self-contained hydraulic pump operates independently of electric or air supplies, whilst robust wheels provide full workshop mobility, allowing the unit to be positioned exactly where needed.

Supplied complete with three interchangeable yokes and a fixing jaw, the SC100 delivers genuine professional-specification performance for demanding workshop applications.

Features and Benefits:
• Exclusive to Draper in the UK/Eire
• Compatible with awkward Mercedes struts (C-Class W203/W204/W205, E-Class W207/C207, ML 163) and VW Touareg without additional adaptors
• Totally adjustable to accommodate popular spring/damper suspension combinations
• Safely provides access to vehicle suspension struts
• Fits a wide range of spring configurations and diameters including linear, progressive, side load and Mini block springs
• Entirely mobile design can be moved to the job as required
• All-steel construction with heavy-duty full-size safety cage
• Independent hydraulic operation requires no electric or air power sources
• Fully independent top arms with vertical and horizontal movement

Specifications:
Hydraulic cylinder: 5000kg
Upper base travel: 266mm
Lower base travel: 240mm
Dimensions: 520 x 690 x 1320mm
Weight: 115kg

Contents:
1 x Fixing Jaw 30 - 70mm
1 x Yoke 75 - 110mm
1 x Yoke 110 - 140mm
1 x Yoke 140 - 190mm
