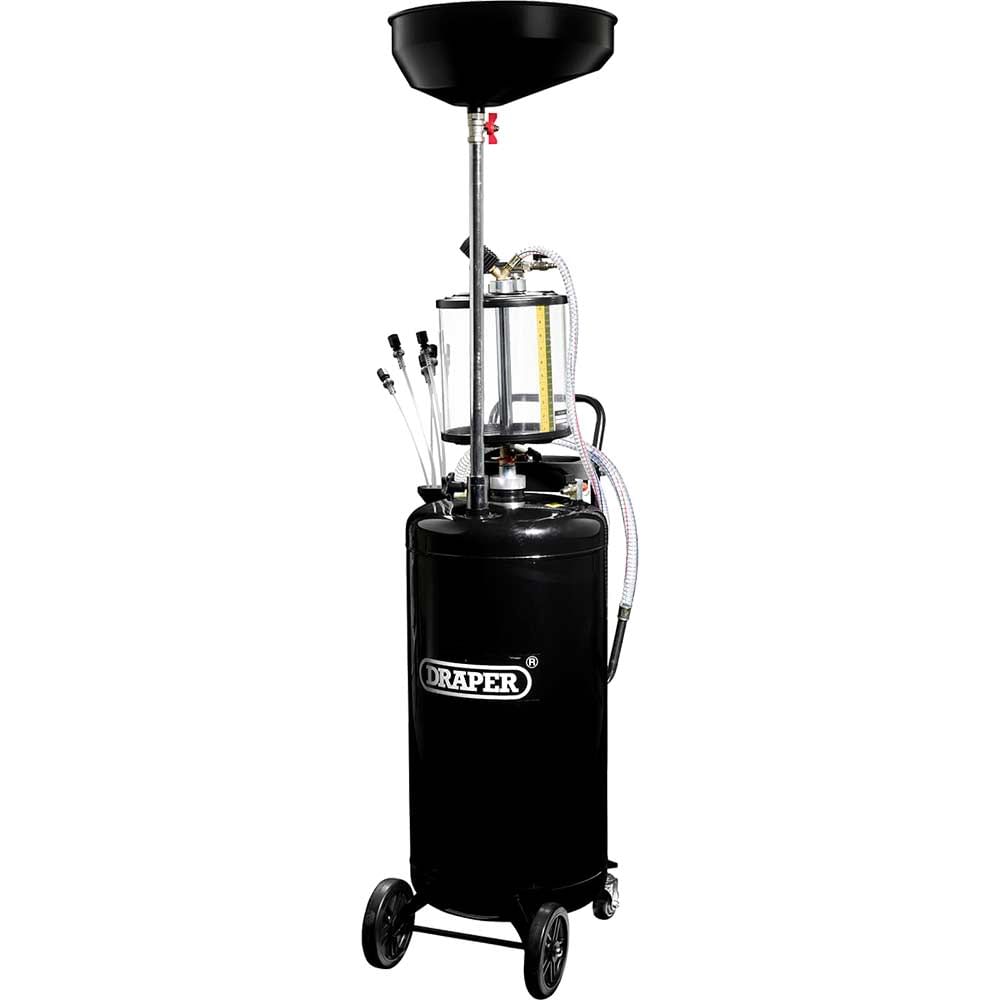

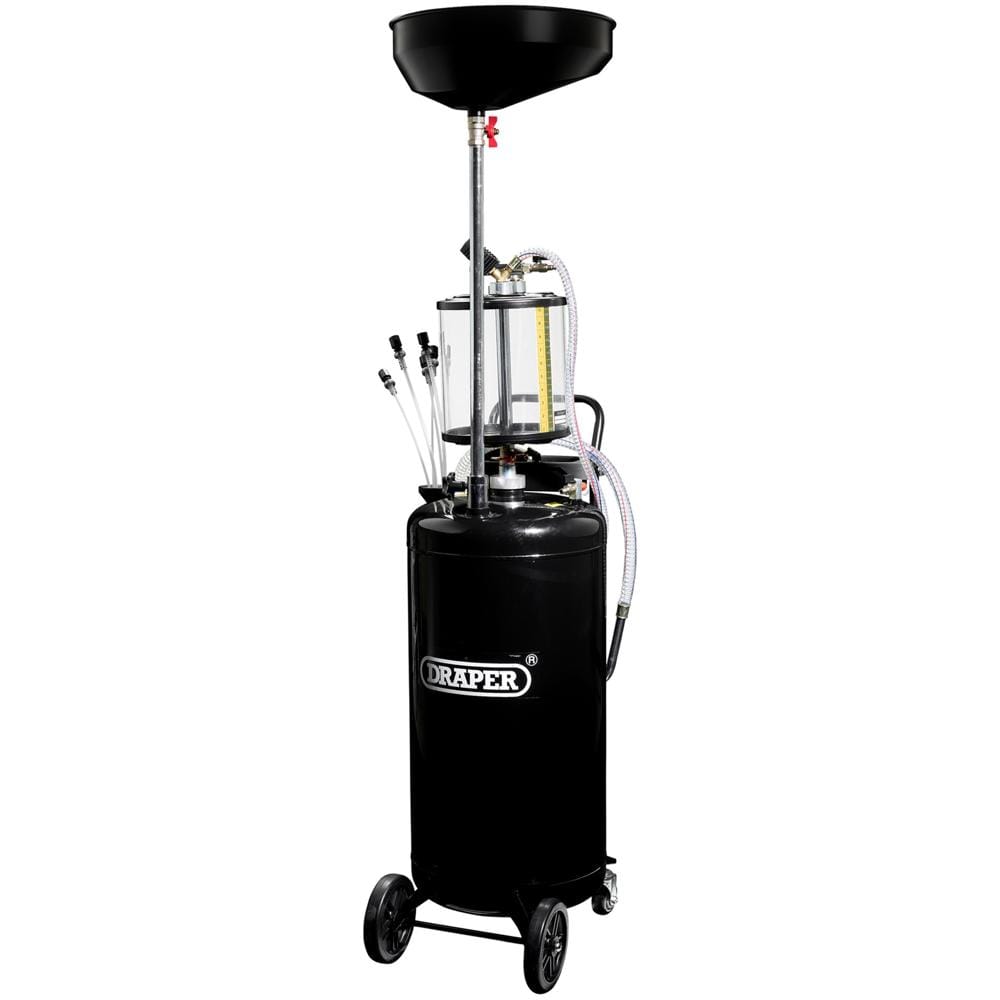

Draper Suction Oil Drainer and Inspection Chamber

The Draper Suction Oil Drainer and Inspection Chamber is a professional air-operated oil extraction system designed for fast and efficient workshop oil changes. Ideal for garages, service centres and mobile mechanics, this versatile unit combines waste oil collection with integrated inspection capabilities to streamline vehicle maintenance procedures.

This robust system features a generous 90-litre steel tank with an integrated inspection chamber incorporating an ocular measurement system for easy oil condition assessment. The height-adjustable drain pan offers exceptional versatility with a collection capacity of 10 litres and an adjustable height range from 1,340mm to 1,740mm, making it suitable for a wide variety of vehicles from low-profile cars to light commercial vehicles. The 420mm diameter drain funnel provides excellent coverage for efficient oil collection.

Built for workshop environments, the unit operates at 8-10 bar working pressure with -0.8 bar vacuum pressure for reliable suction performance. Heavy-duty castors and an integrated pull-handle ensure excellent mobility around the workshop, whilst the fitted safety valve provides essential protection during operation. Complete with a 1/4" BSP coupler for straightforward air line connection.

Features and Benefits:
• Integrated inspection chamber with ocular measurement system for oil condition checks
• 90-litre steel tank capacity for extended use between emptying
• Height-adjustable drain pan (1,340-1,740mm) accommodates various vehicle heights
• 10-litre collection strainer capacity with 420mm diameter funnel
• Safety valve fitted for secure operation
• Heavy-duty castors and pull-handle for easy workshop mobility
• Air-operated suction system with 1/4" BSP coupler

Specifications:
Tank capacity: 90L
Working pressure: 8-10bar
Vacuum pressure: -0.8bar
Collection strainer capacity: 10L
Collection height (adjustable): 1,340-1,740mm
Drain funnel diameter: 420mm
Weight: 27kg

Contents:
1 x Suction Oil Drainer with Chamber, 90L
