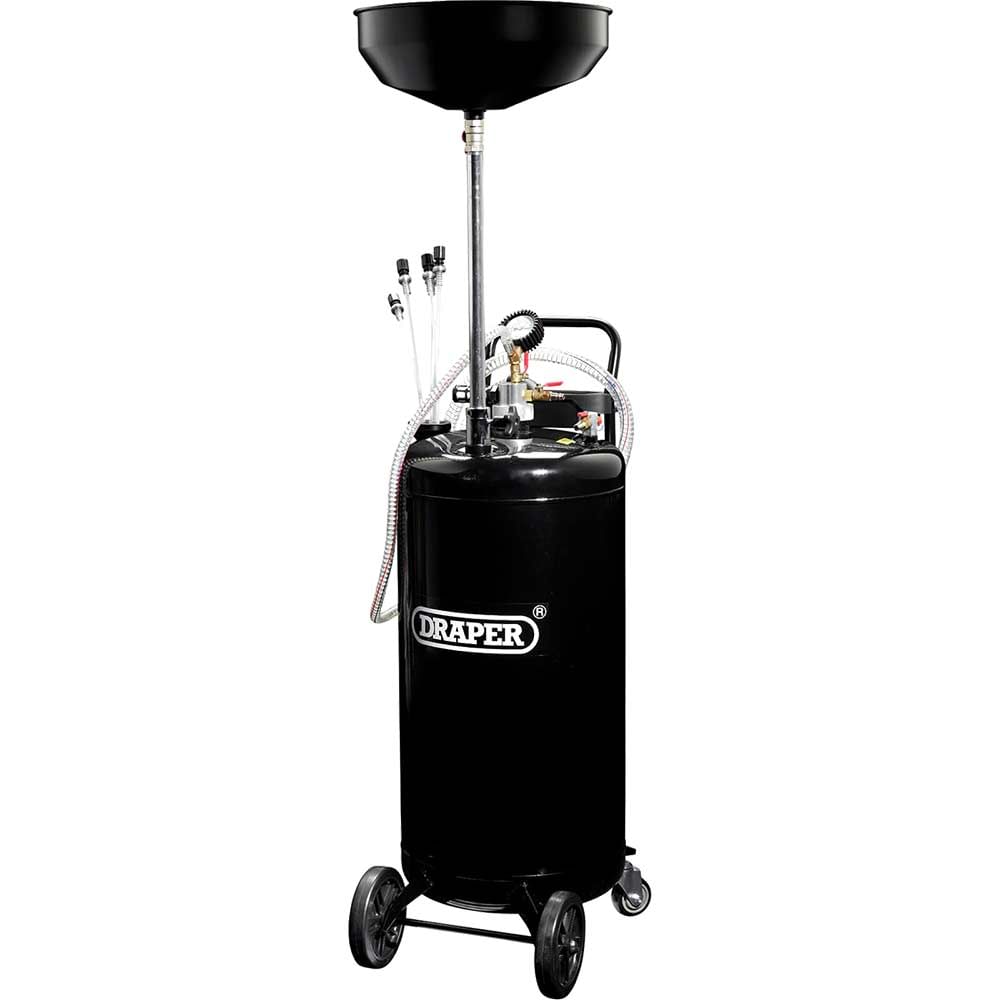

Draper Suction Oil Drainer

The Draper Suction Oil Drainer is an air-operated waste oil collection system designed for efficient fluid extraction in professional workshops and garages. This pneumatic drainer combines a generous 90-litre steel tank with vacuum suction technology, making it ideal for servicing vehicles, plant machinery and other equipment requiring regular oil changes.

The height-adjustable drain pan extends from 1,340mm to 1,740mm, allowing technicians to position the 420mm diameter funnel precisely beneath vehicles of varying ground clearance. The integrated 10-litre collection strainer captures debris during fluid extraction, whilst the fitted safety valve provides overpressure protection during operation. Operating at 8-10 bar working pressure with -0.5 bar vacuum capability, this unit connects via a standard 1/4" BSP coupler to workshop air supplies.

Heavy-duty castors and an integrated pull-handle ensure the 24kg unit can be manoeuvred easily around busy workshop environments. The robust steel construction is built to withstand the demands of commercial garage use, whilst the substantial tank capacity reduces the frequency of disposal runs. Particularly suited to mobile mechanics, motor factors with workshop facilities, and independent garages handling multiple services daily.

Features and Benefits:
• 90L steel tank capacity minimises downtime from frequent emptying
• Height adjustable drain pan (1,340-1,740mm) accommodates different vehicle types
• Fitted with safety valve for secure operation
• 1/4" BSP coupler for standard air line connection
• Heavy-duty castors and pull-handle for workshop mobility

Specifications:
Tank capacity: 90L
Working pressure: 8-10bar
Vacuum pressure: -0.5bar
Collection strainer capacity: 10L
Collection height (adjustable): 1,340-1,740mm
Drain funnel diameter: 420mm
Weight: 24kg

Contents:
1 x Suction Oil Drainer, 90L
