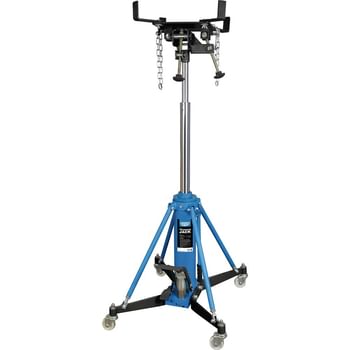

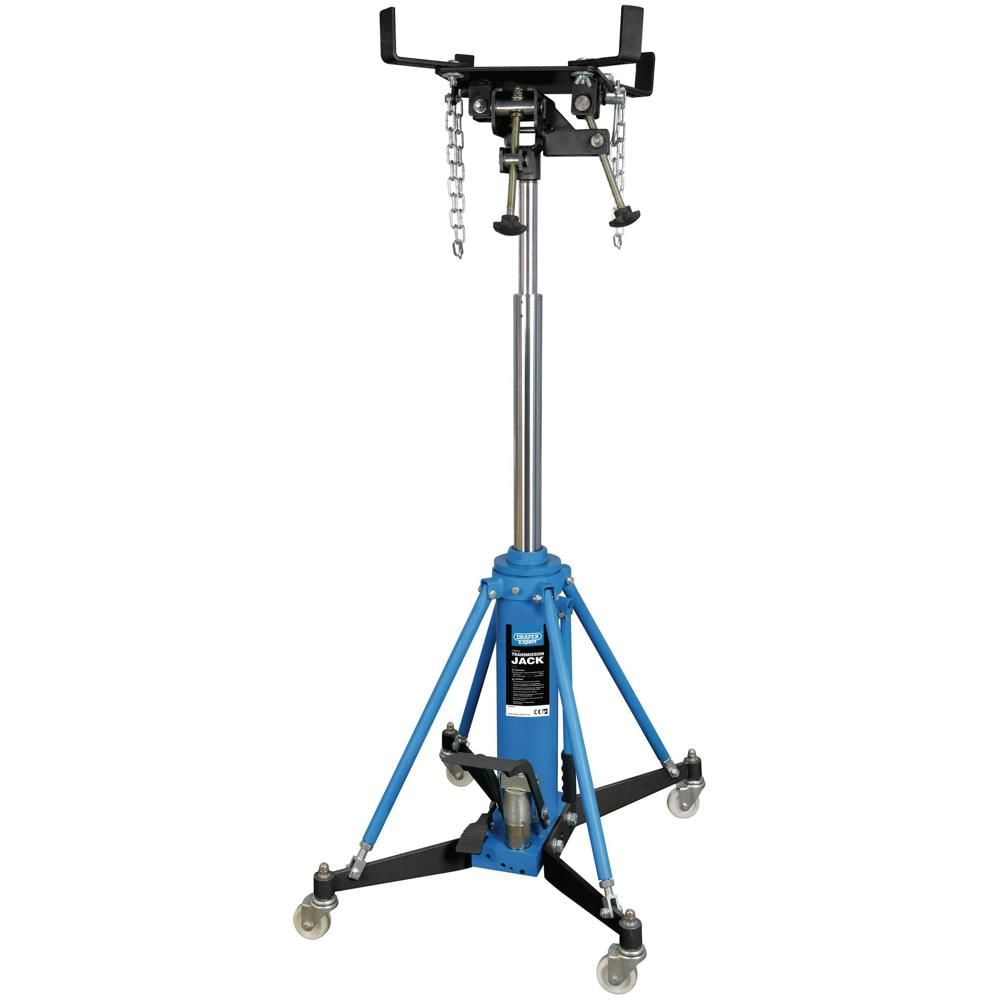

Draper TJ3-E Vertical Transmission Jack

The Draper TJ3-E is a professional vertical transmission jack designed for safely supporting and positioning gearboxes and transmissions during removal and installation. With a 1,000kg capacity and telescopic twin-stage ram, this hydraulic jack delivers the precision control and stability required for demanding workshop tasks.

Built for professional garages and workshops, this transmission jack features a comprehensive lowering control system (LCS) that enables precise, controlled descent of heavy loads into position. The safety overload valve provides additional protection against accidental overloading, whilst the twin position 'Quick Lift' foot pedal allows completely hands-free operation, leaving both hands free to guide components during positioning.

The fully adjustable saddle accommodates a wide variety of gearboxes and transmission components, with forward, backward and side-to-side tilt functionality to align precisely with vehicle mounting points. Chain straps and adjustable supporting struts secure loads firmly in place during movement. Nylon castors deliver smooth, quiet operation whilst protecting workshop floors from damage, and the side-mounted handle enhances manoeuvrability when positioning the jack beneath vehicles.

Ideal for independent garages, main dealers and mobile mechanics working on cars, vans and light commercial vehicles, this vertical transmission jack combines robust construction with user-focused safety features for professional transmission and gearbox work.

Features and Benefits:
• Fitted with a lowering control system (LCS) which safely lowers the load into position
• Twin position 'Quick Lift' foot pedal facility for hands-free operation
• Nylon wheels for quieter and smoother operation without damaging workshop floors
• Telescopic twin stage ram provides extended reach
• Low entry height for easier positioning under vehicles
• Safety overload valve provides user protection
• Chain straps and adjustable supporting struts for secure load retention
• Fully adjustable saddle accepts a wide variety of gearboxes and components
• Forward, backward and side-to-side tilt features aid precise alignment

Specifications:
• Capacity: 1,000kg
• Minimum height: 940mm
• Maximum height stage 2: 1,030mm
• Maximum height stage 1: 1,430mm
• Castor Diameter: 75mm
• Saddle type: Adjustable
• Chain length: 1,495mm
• Weight: 67kg

Contents:
• 1 x Vertical Transmission Jack, 1000kg
