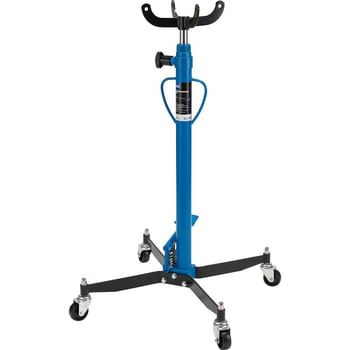

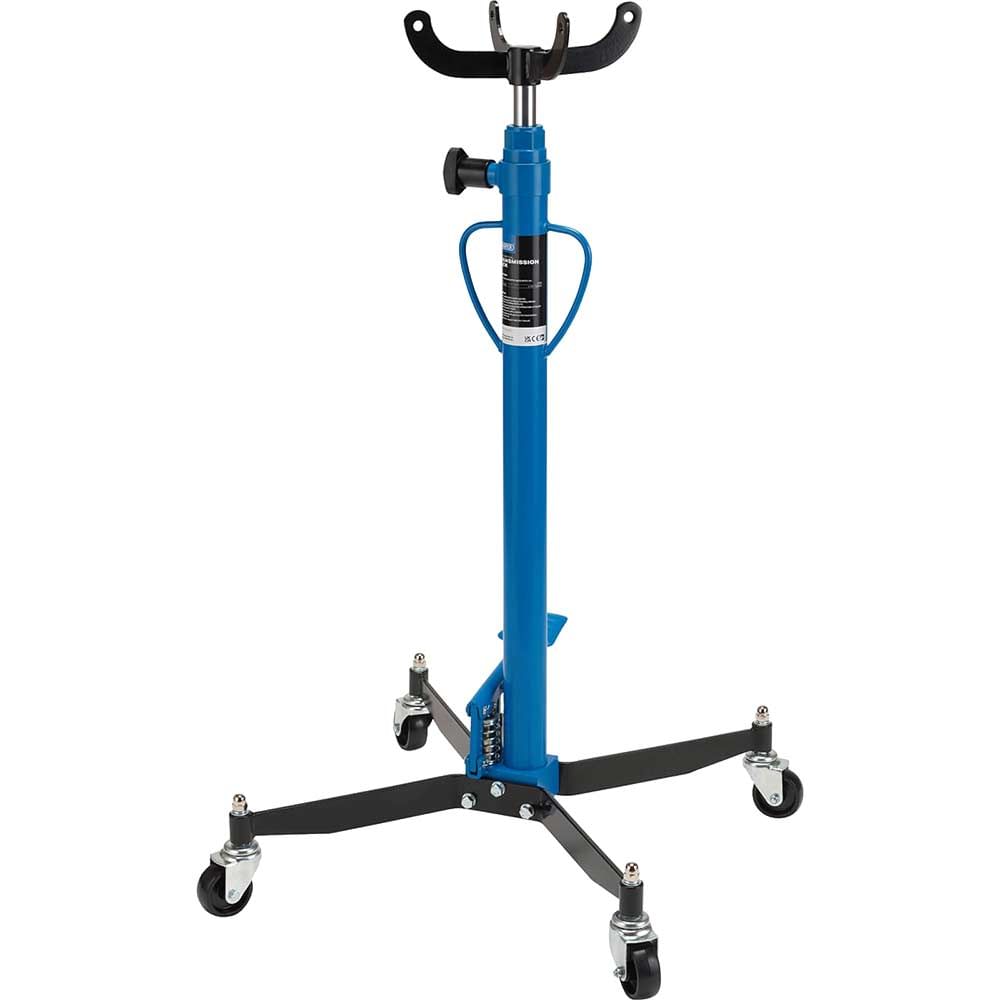

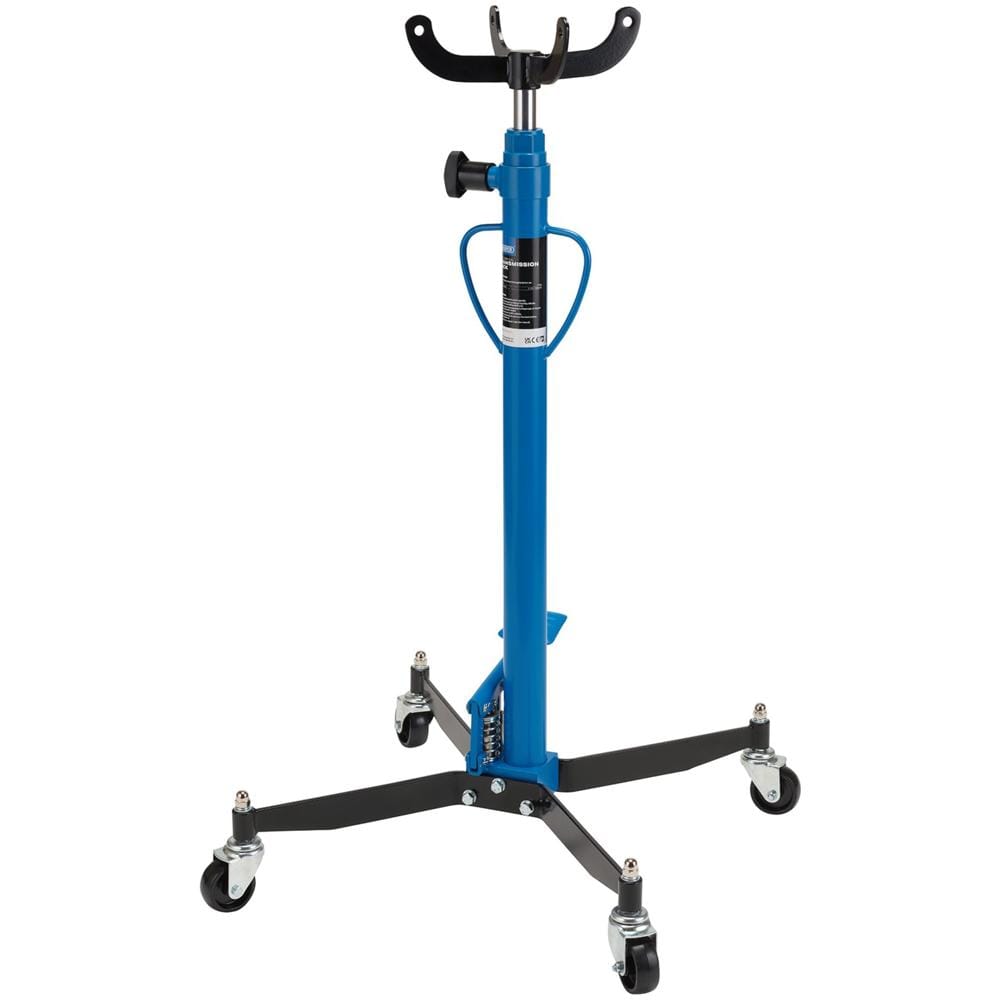

Draper TJ500B Vertical Transmission Jack

The Draper TJ500B is a vertical transmission jack designed for workshops and garages requiring reliable equipment for transmission removal and installation tasks. With a 500kg capacity, this professional-grade jack delivers the strength needed for handling heavy automotive components safely and efficiently.

Operated by foot pedal for hands-free control, this transmission jack allows technicians to position and secure transmissions whilst keeping both hands free for guidance and safety. The spring-loaded lowering mechanism provides smooth, controlled descent, whilst four steel castors ensure easy manoeuvrability around the workshop, even when loaded. The substantial base dimensions of 800 x 1,200mm offer excellent stability during operation.

Safety is prioritised with an integrated overload safety valve that protects both user and equipment from excessive loads. The fixed saddle adjusts from 1,125mm to 1,940mm height, providing the working range needed for most vehicle types. Fully tested and certified for safe, reliable operation, this jack is ideal for professional workshops, mobile mechanics, and vehicle maintenance facilities handling regular transmission work.

Features and Benefits:
• Foot pedal for easy hands-free operation
• Spring-loaded lowering mechanism
• Four steel castors for manoeuvrability
• Overload safety valve for user protection

Specifications:
Capacity: 500kg
Height: 1,125-1,940mm
Saddle type: Fixed
Base dimensions: 800 x 1,200mm
Castor diameter: 77mm
Weight: 23.6kg

Contents:
1 x Vertical Transmission Jack, 500kg
