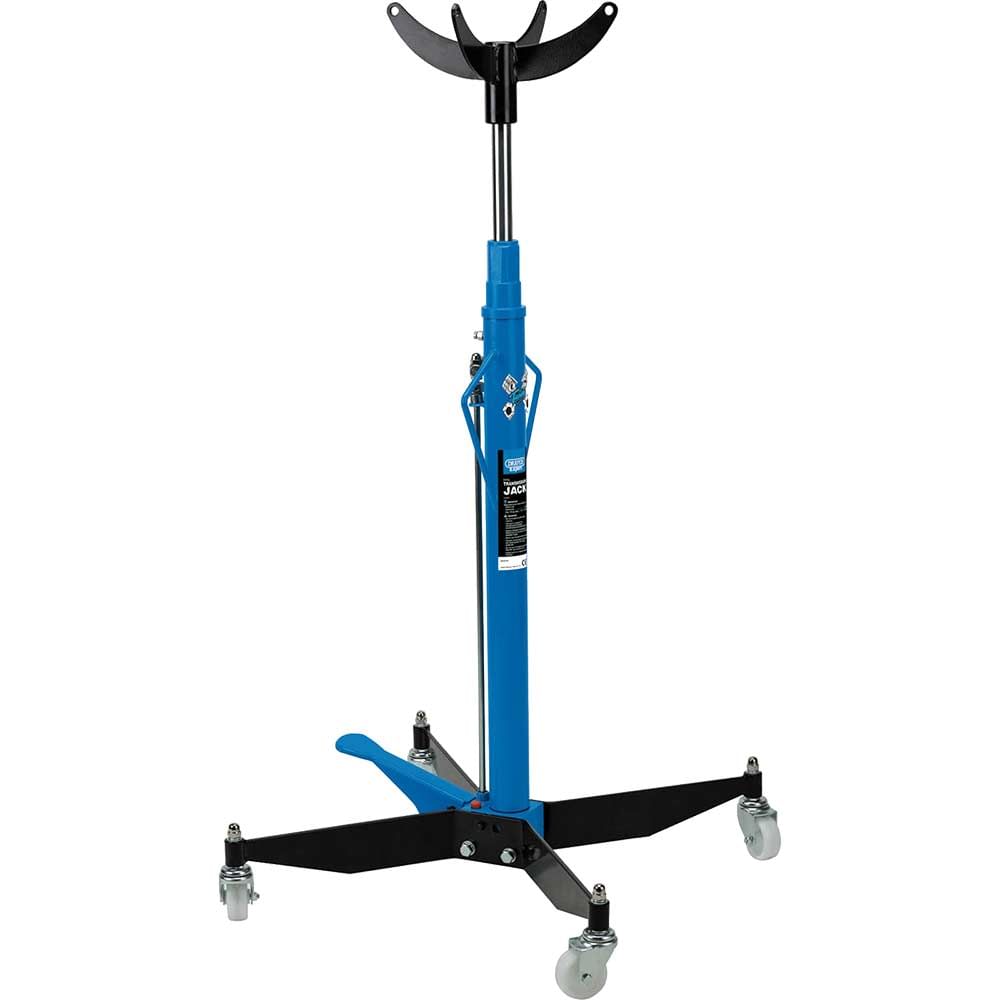

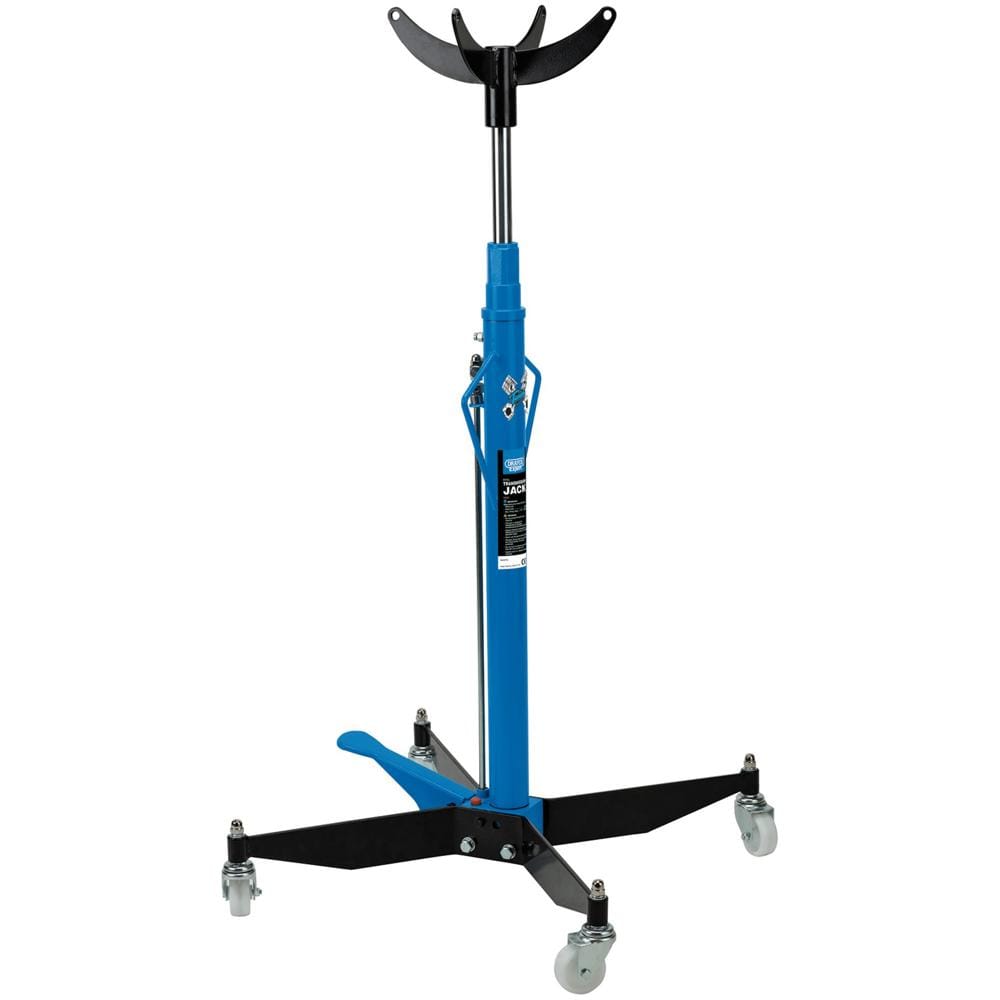

Draper TJ600 Vertical Transmission Jack

The Draper TJ600 Vertical Transmission Jack is a professional-grade hydraulic lifting solution designed for removing and installing gearboxes and transmission components in workshops and garages. With a robust 600kg capacity, this vertical transmission jack combines power with precision to handle demanding automotive repair tasks efficiently.

Built around a telescopic ram design, this transmission jack features a twin-piston 'Quick Lift' facility that accelerates the lifting process, reducing setup time during gearbox removal and installation work. The integrated safety overload valve provides essential protection against exceeding the jack's rated capacity, whilst the foot pedal operation with anti-slip rubber cover enables hands-free lifting, allowing technicians to position and secure components safely.

Manoeuvrability is enhanced through thoughtfully designed features including hardwearing nylon wheels that protect garage floors whilst delivering quieter, smoother movement around the workspace. Extra-large 75mm diameter castors combined with side-mounted handles make positioning effortless, even when navigating confined workshop areas. The reversible saddle design accommodates a wide variety of gearbox types and transmission components, making this jack a versatile addition to professional automotive workshops, independent garages, and vehicle maintenance facilities.

Features and Benefits:
• Hydraulic vertical transmission jack with telescopic ram for precise height adjustment
• Twin-piston 'Quick Lift' facility speeds up lifting operations
• Safety overload valve protects against exceeding capacity limits
• Foot pedal operation with anti-slip rubber cover for hands-free use
• Hardwearing nylon wheels prevent floor damage and reduce operational noise
• Extra-large castors and side-mounted handles for easy positioning
• Reversible saddle accepts various gearbox types and transmission components

Specifications:
Capacity: 600kg
Minimum height: 1,175mm
Maximum height: 1,985mm
Base size: 640 x 650mm
Saddle type: Fixed
Weight: 29kg
Castor diameter: 75mm

Contents:
1 x Draper Expert Vertical Transmission Jack, 600kg
