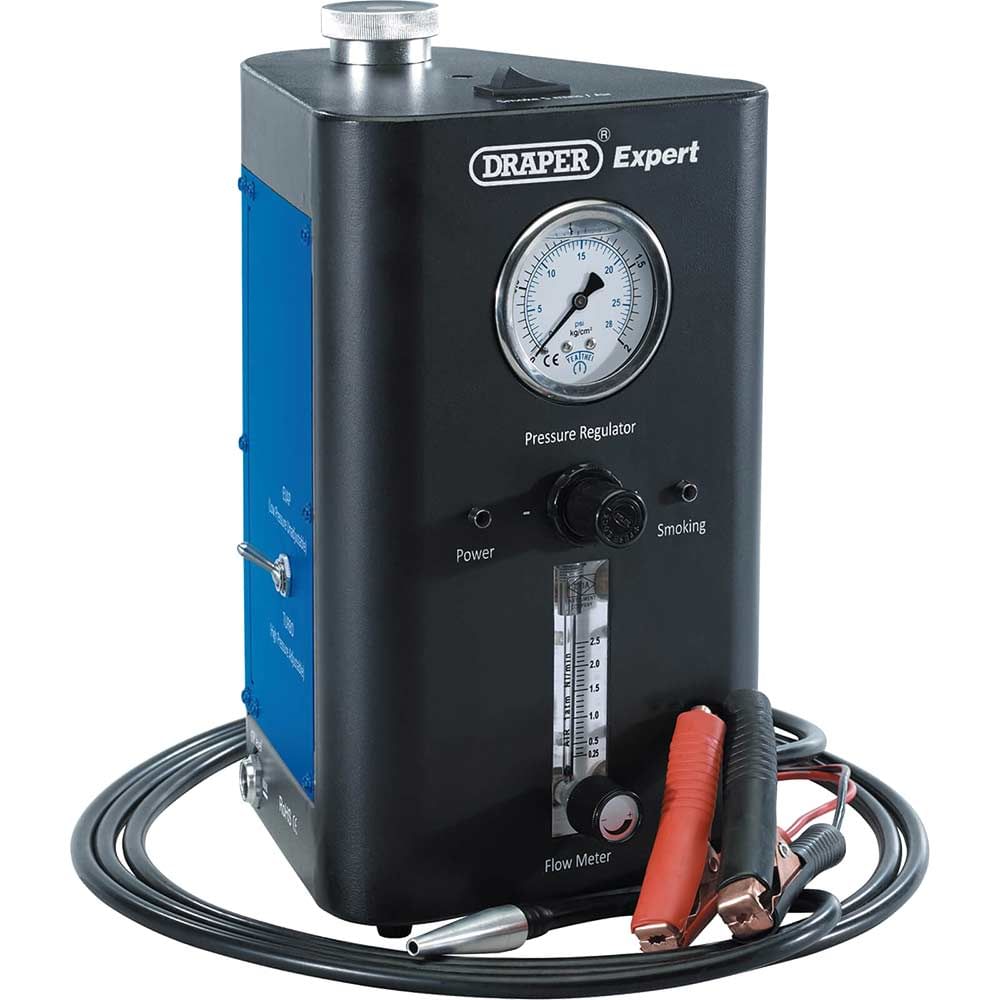

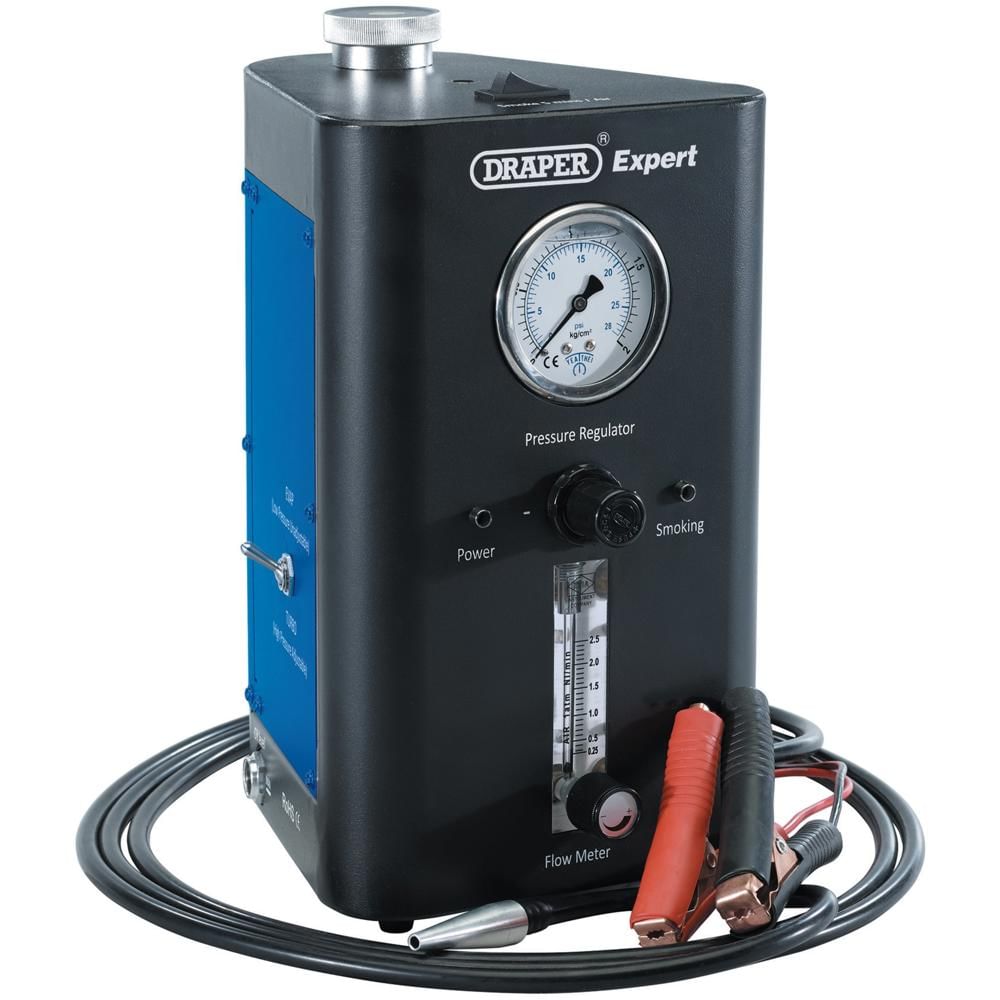

Draper Turbo EVAP Automotive Diagnostic Smoke Machine

The Draper Turbo EVAP Automotive Diagnostic Smoke Machine is a versatile diagnostic tool designed to quickly identify leaks in turbo and evaporative emission control systems. This professional-grade smoke machine saves valuable workshop time by efficiently pinpointing leaks throughout vehicle systems, delivering fast and accurate test results that would otherwise require time-consuming manual inspection.

Using mineral oil and workshop air to generate smoke, the machine connects directly to a 12V vehicle battery for portable operation. The unit features variable air and smoke pressure control with an easy-to-read test pressure gauge, allowing technicians to switch effortlessly between turbo testing (up to 20psi) and EVAP testing (0.75psi). A safety cut-off prevents seal damage during testing, whilst the oil level indicator window ensures you can monitor consumables at a glance.

Built for workshop efficiency, the machine operates on a five-minute duty cycle to extend running time and features both air and smoke modes for comprehensive diagnostics. The compact, lightweight design makes it easy to manoeuvre around the workshop, whilst the included storage case keeps everything organised.

Ideal for automotive workshops, mobile mechanics and vehicle diagnostics specialists, this smoke machine is particularly effective for identifying vacuum leaks, intake manifold leaks, and EVAP system faults that can trigger engine management warnings.

Features and Benefits:
• Switch between turbo and EVAP testing modes for versatile diagnostics
• Variable safe pressure regulator and airflow control prevents seal damage
• Oil level window for easy consumable monitoring
• Air and smoke mode operation for different diagnostic requirements
• Supplied in storage case with comprehensive accessory kit

Specifications:
Voltage: 12V DC
Pressure: 3-20psi
Pressure (EVAP mode): 0.75psi
Operating temperature: 0? to 140?
Generator protection temperature: 239?
Vapour output hose: 3m
Operating mode: Smoke 5 min cycle/air cycle
Weight: 4.5kg

Contents:
1 x Air intake adaptor
1 x Hook
1 x Smoke outlet hose
1 x EVAP service tool kit
1 x Cap plug kit (23 plastic plugs)
1 x Battery cable with crocodile clips
1 x Standard cone adaptor (31-81mm)
