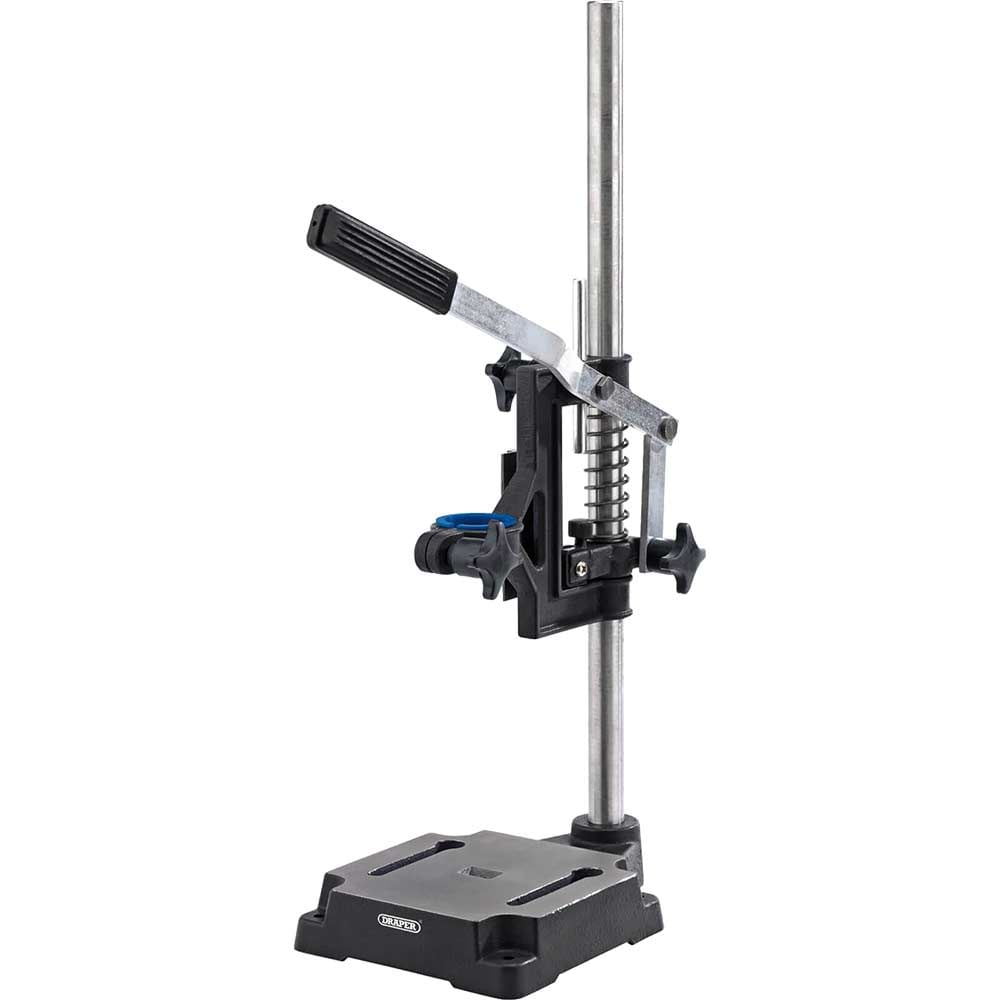

Draper Vertical Drill Stand

The Draper Vertical Drill Stand transforms handheld electric drills into a precision bench-top drilling station, delivering accurate perpendicular drilling for workshop tasks. Compatible with drills featuring 43mm or 38mm collar diameters, this stand includes a reducing bush for versatile fitting options.

Built around a robust solid column bar and stable base plate, this drill stand provides the rigidity needed for consistent drilling accuracy. The sturdy base features pre-cut slots designed to accommodate a machine vice, enabling secure workpiece clamping for metalwork, woodworking and fabrication tasks. With a 540mm column height and 65mm depth of feed, the stand offers sufficient working capacity for typical workshop drilling operations.

The integrated depth adjustment scale and stop mechanism allows precise control of drilling depth, ideal for repetitive tasks requiring uniform hole depths. The 24mm diameter column ensures smooth vertical travel while maintaining drill alignment throughout the operation. Particularly suited for use with Draper power drills models 83583, 83584 and 83585, this 6.9kg drill stand brings bench drill precision to handheld power tools.

Features and Benefits:
• Compatible with 43mm or 38mm collar diameter drills with supplied reducing bush
• Solid column bar and sturdy base with slots for fitting machine vice
• Depth adjustment scale and stop for accurate, repeatable drilling

Specifications:
Base Plate: 170 x 250mm
Collar Diameter: 43mm or 38mm
Column Diameter: 24mm
Column Height: 540mm
Depth of Feed: 65mm
Weight: 6.9kg

Contents:
1 x Vertical Drill Stand
