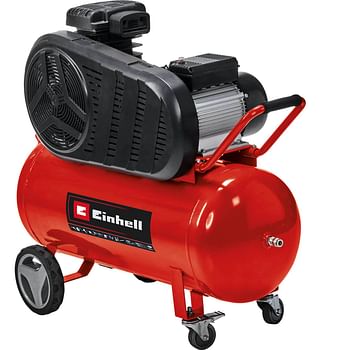

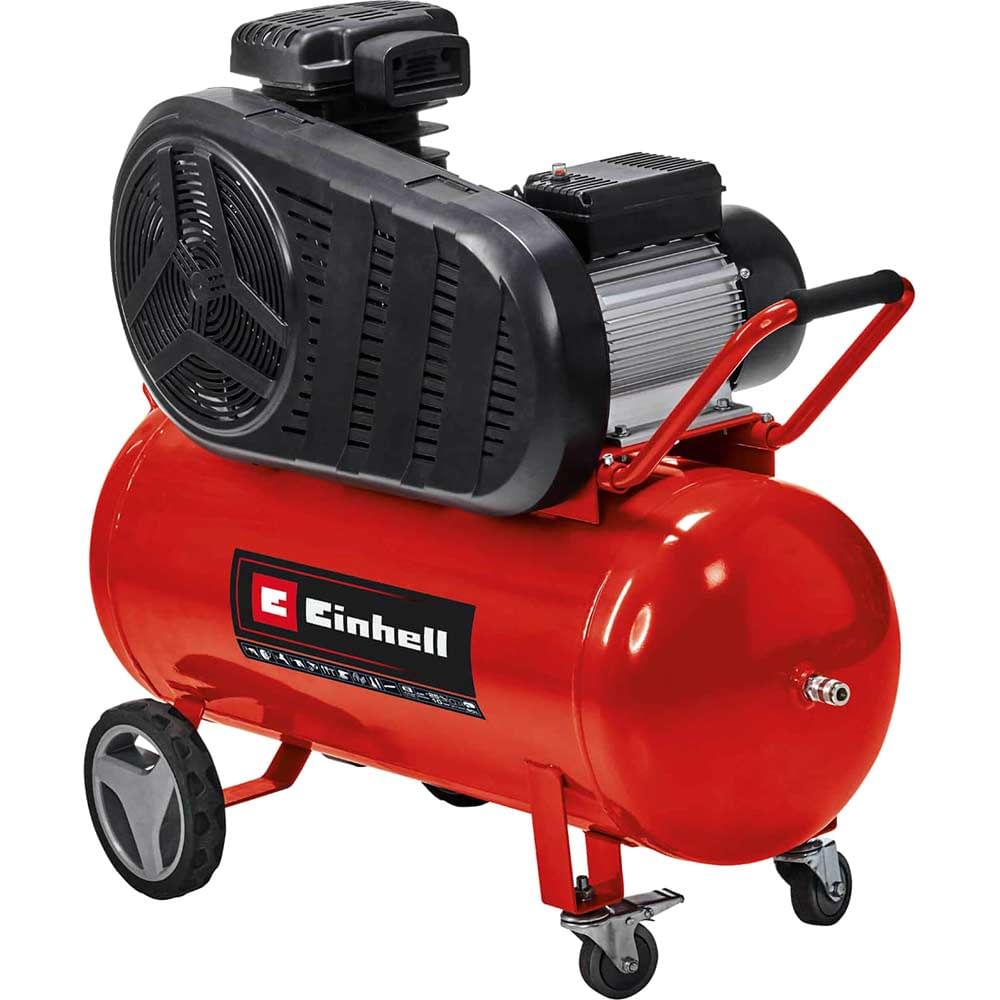

Einhell TE-AC 430/90/10 Air Compressor 90 Litre

The Einhell TE-AC 430/90/10 is a 90-litre belt-driven air compressor designed for sustained, high-demand applications across a range of trade and workshop tasks.

Powered by a 3,000 W (4.1 HP) motor, this compressor uses a V-belt drive to reduce pump speed and deliver smoother, quieter operation compared to direct-drive alternatives. The twin-cylinder pump is oil-lubricated for longevity, with an oil-level sight glass allowing quick visual checks without removing covers. A suction capacity of 430 L/min and output of 200 L/min at 7 bar ensures consistent air delivery for tools including spray guns, sanders, and blow-cleaning equipment.

The 90-litre tank provides substantial air reserves, making it well suited to prolonged spraying, blow-cleaning, or sandblasting jobs where a smaller compressor would struggle to keep up. Maximum operating pressure of 10 bar is adjustable via the pressure reducer, giving precise control across different applications. Safety is managed through both a non-return valve and a pressure relief valve, while an integrated pressure gauge and quick-release coupling are fitted as standard.

Mobility is handled by two large wheels and a pair of castors with a locking brake, making repositioning straightforward on site or in a workshop. The tank carries a 10-year rust-through warranty from Einhell, reflecting confidence in the build quality of this mid-range professional compressor.

Features and Benefits:
• 3,000 W (4.1 HP) V-belt drive motor for smooth, low-speed operation
• Twin-cylinder, oil-lubricated pump for extended working life
• 90-litre tank with 10-year rust-through warranty
• Suction capacity of 430 L/min suitable for high-demand tools
• Adjustable pressure reducer for applications up to 10 bar
• Non-return valve and safety valve for safe operation
• Integrated pressure gauge and quick-release coupling as standard
• Oil-level sight glass for easy maintenance checks
• Two large wheels and castors with locking brake for site mobility
• Drain plug for straightforward routine maintenance

Specifications:
Mains supply: 220-240 V / 50 Hz
Max. motor power: 3,000 W
Motor speed: 2,850 min?¹
Pump speed: 1,020 min?¹
Suction capacity: 430 L/min
Output power at 0 bar: 230 L/min
Output power at 4 bar: 210 L/min
Output power at 7 bar: 200 L/min
Max. operating pressure: 10 bar
Tank volume: 90 L
Number of cylinders: 2
Sound pressure level (Lpa): 73 dB(A)
Sound power level (Lwa): 93.5 dB(A)
