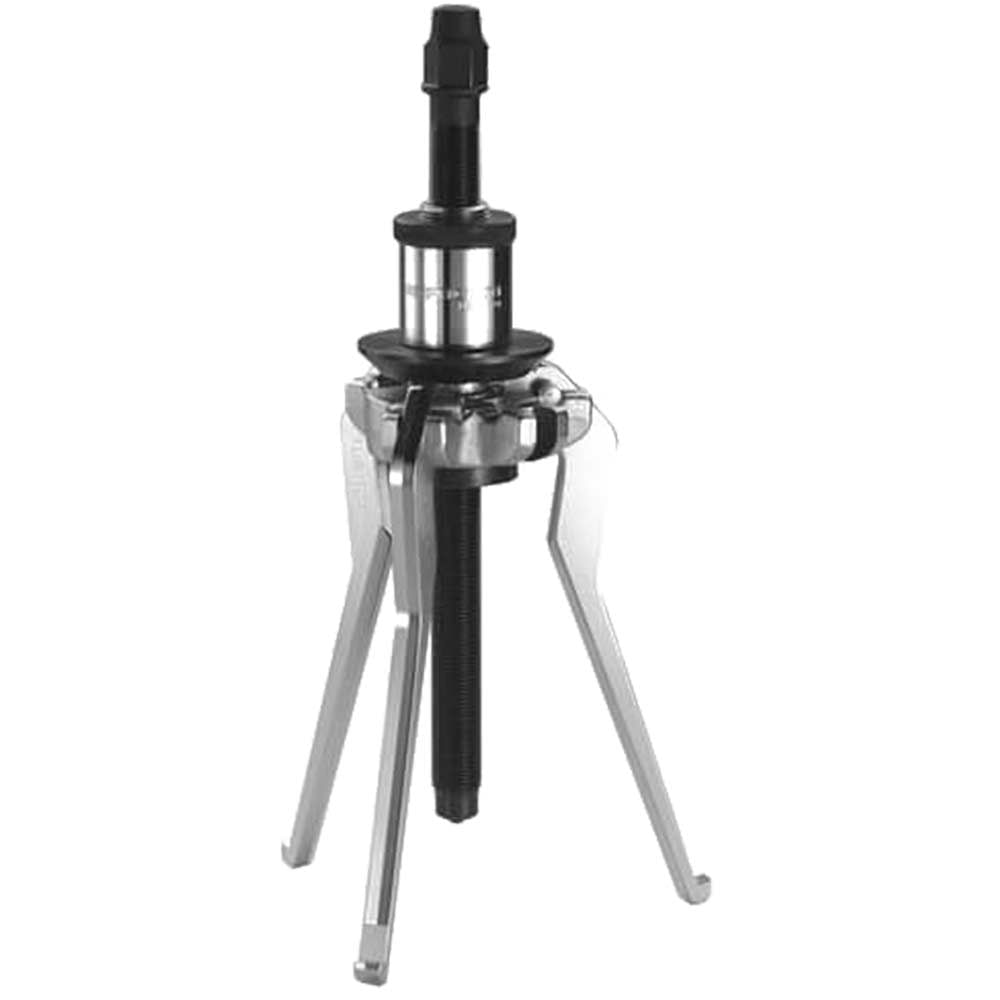

Facom 3 Leg Inside Puller

The Facom 3 Leg Inside Puller is a professional-grade bearing and component extraction tool designed for demanding workshop applications. This precision-engineered puller features three adjustable legs that securely grip the inner surface of components, enabling efficient removal of bearings, bushings, and similar parts without causing damage to surrounding areas.

Crafted from high-quality materials to withstand heavy-duty use, this puller delivers reliable performance across automotive, industrial, and mechanical maintenance tasks. The ergonomic design ensures smooth, controlled operation with minimal effort, whilst the self-gripping legs with return springs enhance user comfort during extended use.

With a spread capacity ranging from 50mm to 230mm, this versatile tool accommodates a wide variety of component sizes across different applications. The puller maintains a rolling position even when not under tension, improving handling and positioning during setup. Safety is enhanced through a knob-locking mechanism that secures the legs in position on the bearing, eliminating the risk of the puller escaping during operation.

The system's adaptability is further enhanced by its compatibility with optional accessories including the U.3 hydraulic screw and U.2 slide hammer, allowing you to configure the tool to suit specific extraction requirements.

Features and Benefits:
• Versatile configuration accepts either 2 or 3 legs for different applications
• Converts to outside puller with U.306G1 & U.20B1 or U.310G2 & U.310-250-10 accessories
• Self-gripping legs with return springs reduce user fatigue
• Maintains rolling position when not under tension for easier positioning
• Legs lock securely onto bearing using knob mechanism for enhanced safety
• No risk of puller escaping from component during extraction
• Compatible with hydraulic screw U.3 and slide hammer U.2 accessories

Specifications:
Min-Max Size: 50-230mm
Legs: U.310G3
Screw: U.20B1
Weight: 4.1kg
