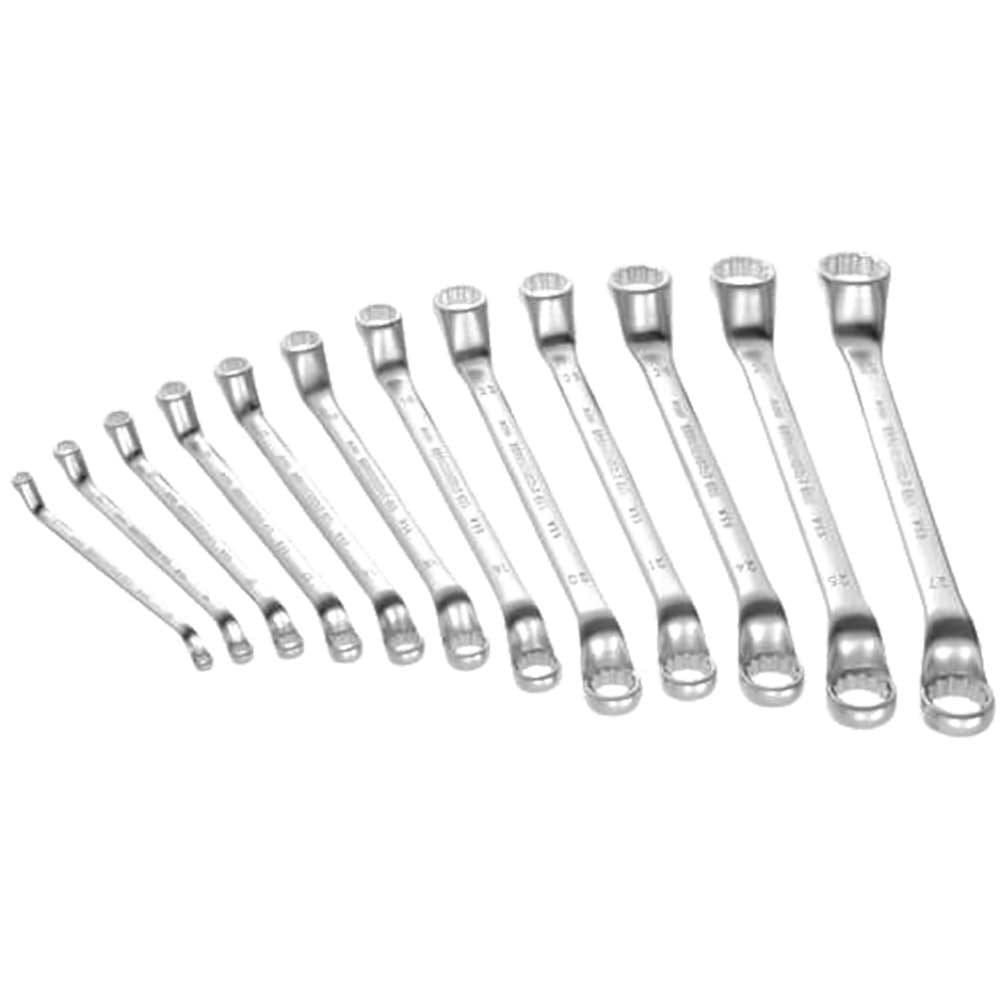

Facom 55A.JD12A 12 Piece Deep Offset Ring Spanner Set

The Facom 55A.JD12A is a 12-piece deep offset ring spanner set covering 24 metric sizes, designed for professional and DIY use in confined or awkward workspaces where access is restricted.

Each spanner in the set features an offset ring profile that provides greater manoeuvrability around obstacles — a practical advantage when working in tight engine bays, underframes, or machinery enclosures. The offset angle allows the user to reposition the spanner with a lower swing arc, reducing the frustration of limited clearance situations.

The spanners are manufactured to Facom's OGV® 12-point profile, which maximises contact between the ring and the fastener head. This helps distribute load more evenly across the nut or bolt, reducing the risk of rounding under torque — a particular benefit when working with stubborn or corroded fixings.

Sizes range from 6x7mm up to 27x32mm, making this set well-suited to automotive work, plant maintenance, and general mechanical tasks where a broad range of fastener sizes is required. The set meets DIN 838, ISO 1711-1, and ISO 691 standards.

Features and Benefits:
• Offset ring design improves access in restricted and confined spaces
• OGV® 12-point profile maximises contact to help protect fastener heads
• 24 metric sizes covered across 12 spanners for versatile coverage
• Meets DIN 838, ISO 1711-1, and ISO 691 standards

Contents:
6x7mm
8x9mm
10x11mm
12x13mm
14x15mm
16x17mm
18x19mm
20x22mm
21x23mm
24x26mm
25x28mm
27x32mm

Specifications:
Standards: DIN 838, ISO 1711-1, ISO 691
