Facom U.23J1A Micro Bearing Puller Kit

The Facom U.23J1A Micro Bearing Puller Kit is a precision bearing removal set designed for extracting small bearings from a wide range of mechanical assemblies.

The kit includes three pairs of interchangeable tips in Ø 5.5mm, 6mm, and 7.5mm diameters, along with beam U.23K1A, providing a spread range of Ø 25 to 95mm. This versatility makes it suitable for working with ISO bearings across the 6004 to 6010, 6200 to 6205, and 6300 to 6302 series — covering a broad spectrum of common bearing sizes found in motors, gearboxes, and similar equipment.

The tool is well suited to workshops, maintenance environments, and precision repair tasks where controlled bearing extraction is essential. Its compact design and interchangeable tip system allow work in confined spaces where larger pullers cannot reach.

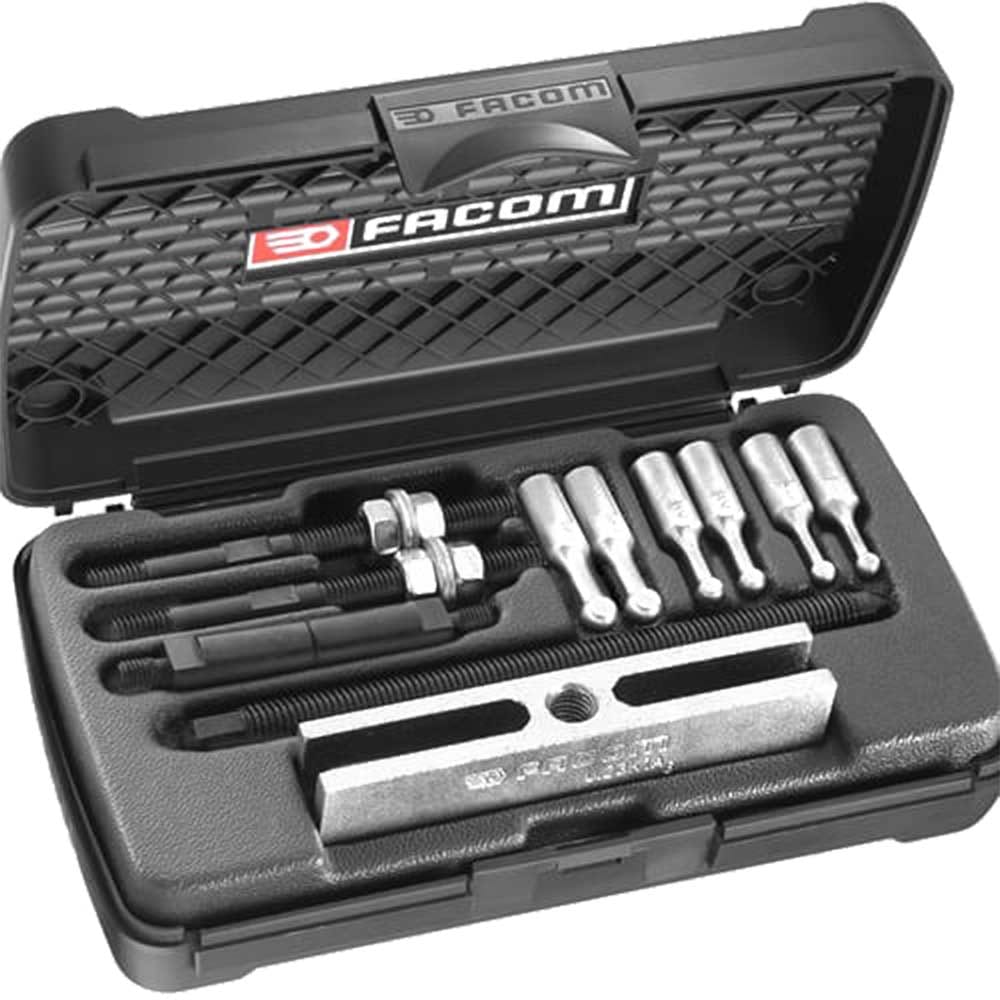

The kit is supplied in plastic case BP.102 with tray PL.392A, keeping all components organised and protected between uses.

Features and Benefits:
• Three pairs of interchangeable tips (Ø 5.5mm, 6mm, 7.5mm) for versatility across multiple bearing sizes
• Beam U.23K1A included as part of the complete kit
• Spread range of Ø 25 to 95mm accommodates a wide variety of small bearings
• Compatible with ISO bearing series 6004–6010, 6200–6205, and 6300–6302
• Supplied in carry case BP.102 with tray PL.392A for organised, protected storage

Specifications:
Tip Diameters: Ø 5.5mm, 6mm, 7.5mm
Spread Range: Ø 25 to 95mm
Compatible ISO Bearings: 6004 to 6010, 6200 to 6205, 6300 to 6302
Weight: 0.8kg
